| Item | Liquid Level Switch |
|---|---|
| Body Material | Stainless Steel |
| Components Included | Float |
| Conduit Size | 1/2" |
| Contact Form | SPST |
| Current Rating | 0.28A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Finish | PTFE Coated |
| Float Dia. | 1" |
| Float Length | 1" |
| Float Material | Stainless Steel |
| Float Specific Gravity | 0.7 |
| Float Switch Float Material | Stainless Steel |
| Gauge | 22 ga. |
| Grade | Grade 316 |
| Max. Current | 0.28A |
| Max. Pressure | 100 psi |
| Max. Voltage | 240V |
| Minimum Media Specific Gravity | 0.88 xg |
|---|---|
| Mounting | Side |
| Mounting Position | Horizontal |
| Operating Temp. | 392°F |
| Operating Temperature - Maximum | 392°F |
| Overall Length | 4 3/25" |
| Overall Width | 1.06" |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 100 psi |

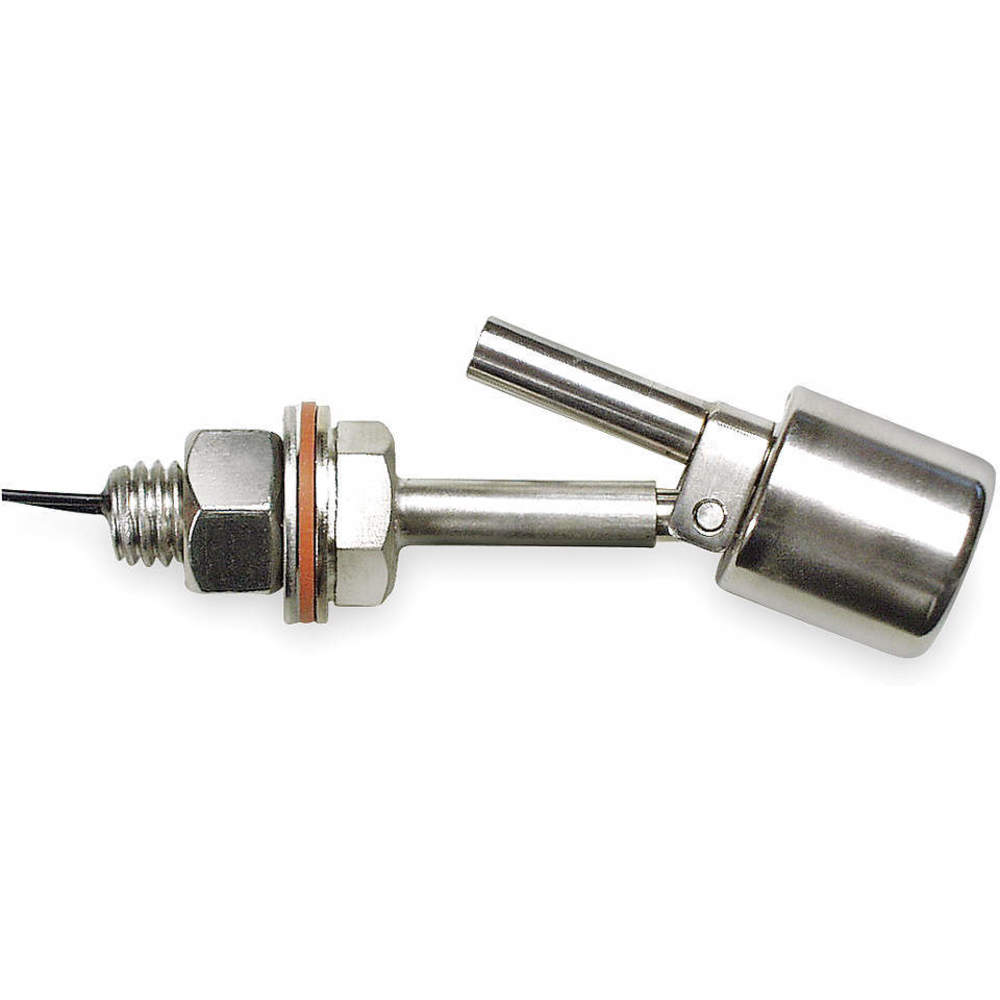

| Series | M5970 Series |
| Stem Length | 3.19" |
| Stem Material | Stainless Steel |
| Stem Thread Size | 1/2"-13 Unc |
| Switch Action | Select |
| Switch Function | Select |
| Voltage Rating - Maximum | 120V DC/240V AC |
| Width | 1.06" |
| Standards | CE, NSF, UL LISTED |
| Height (cm) | 8 |
|---|---|
| Length (cm) | 8.1 |
| Width (cm) | 2.69 |
| HS Code | 9032896060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.1125 |
| Style | Model | Float Length | Float Dia. | Body Material | Operating Temp. | Mounting | Float Material | Max. Current | Stem Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M8800 | 2" | 1 1/2" | Polypropylene | 221°F | Vertical Open Tank | Polypropylene | 0.5A | Polypropylene | $87.69 | |
| B | M4300 | 2" | 1 1/4" | Brass | 221°F | Vertical Open Tank | Buna N | 0.5A | Brass | $87.50 | |
| C | M8000 | 1" | 1" | Polypropylene | 221°F | Vertical Open Tank | Polypropylene | - | Polypropylene | $24.00 | |
| D | M8700 | 2.11" | 0.65" | Polypropylene | 221°F | Side | Polypropylene | 0.28A | Polypropylene | $21.97 | |

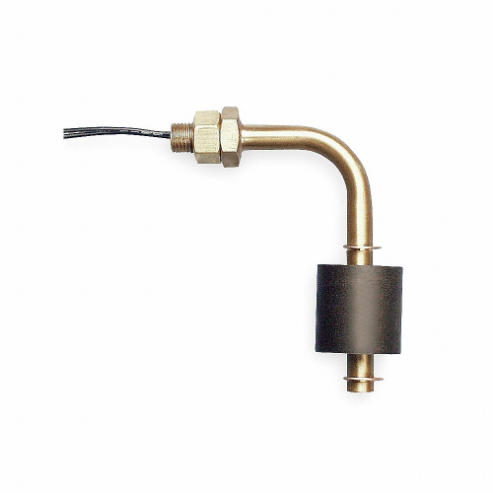

| E | M4010 | 1" | 1" | Brass | 221°F | Side | Buna N | 0.28A | Brass | $90.86 | |

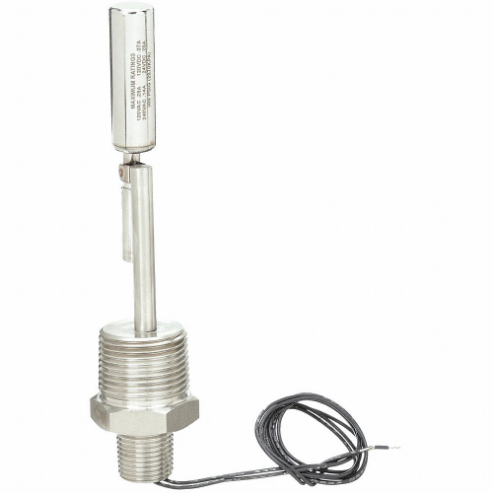

| F | M5900 | 2" | 0.63" | Stainless Steel | 392°F | Side | Stainless Steel | 0.28A | Stainless Steel | $238.77 | |

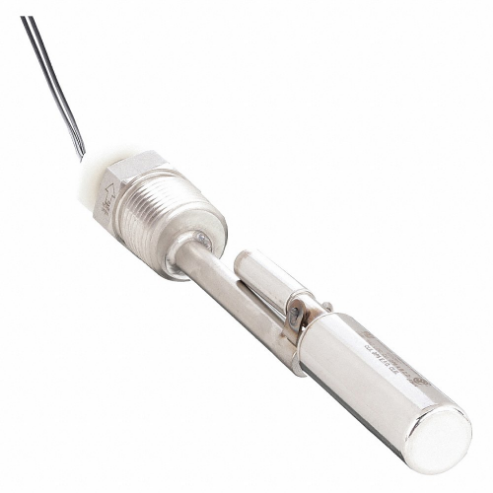

| G | M5910 | 2" | 0.63" | Stainless Steel | 392°F | Side | Stainless Steel | 0.28A | Stainless Steel | $237.41 |
