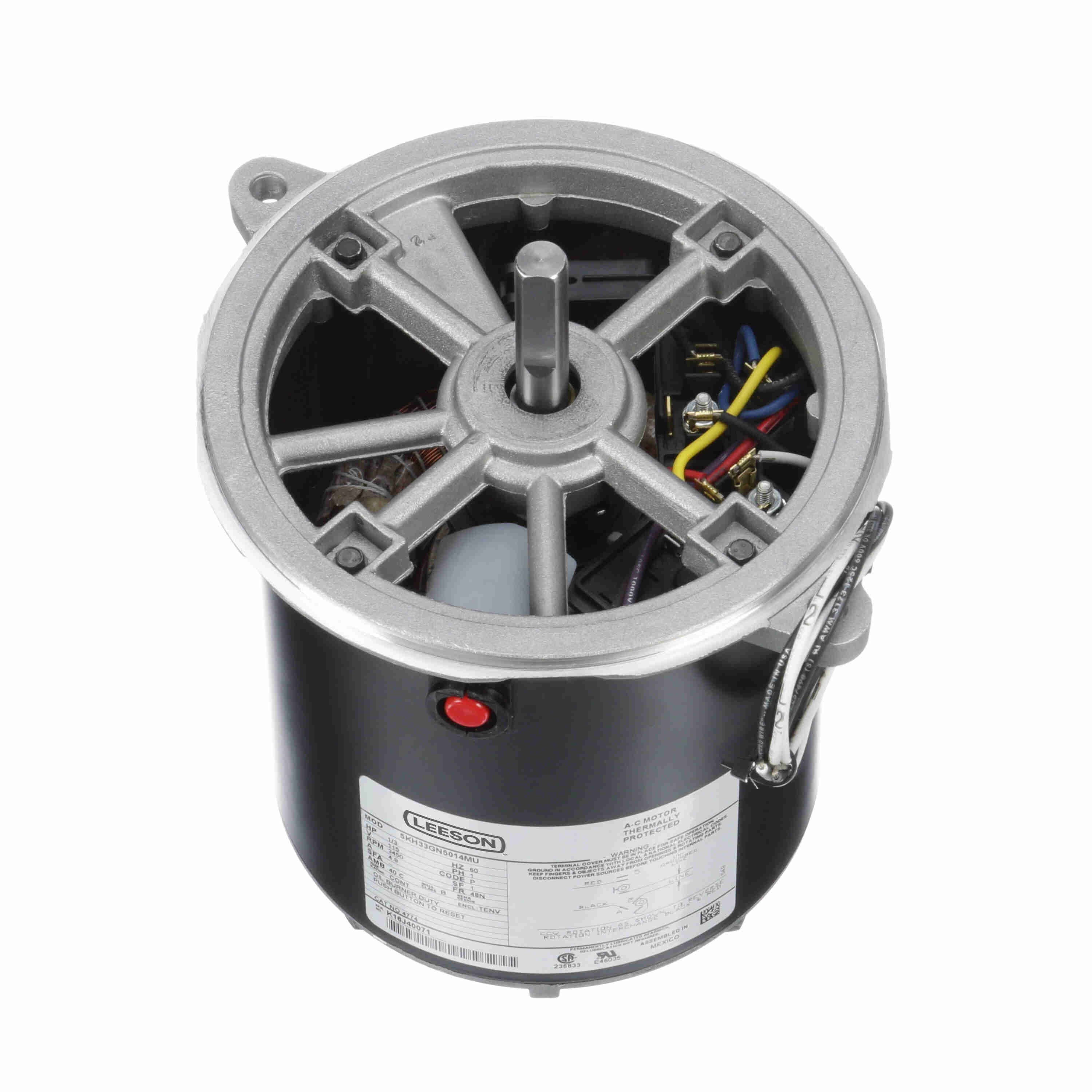

| Item | Oil Burner Motor |
|---|---|
| Base Type | Non Removable |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Extended Thru-bolts | No |
| Features | Nema N Or M Flange Direct, Two Bolt |
| Frame | 48N |
| Frequency | 60 Hz |
| Full Load Amps | 4.9A |
| Full Load Efficiency | 62.6% |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Lead Length | 20" |
| Length Less Shaft | 6 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Flange Type | Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
|---|---|
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Oil Burner |
| Motor Thermal Protection | Manual |
| Motor Type | Split Phase |
| Nominal Efficiency | 62.6% |
| Number Of Speeds | 1 |
| Number Of Studs | 2 |
| Overall Length | 8 7/16" |
| Phase | 1 |
| Removable Base | No |
| Rpm | 3450 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/8" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 19.05 |
|---|---|
| Length (cm) | 32.08 |
| Width (cm) | 17.63 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 6.75 |
| Style | Model | Hp | Voltage | Nameplate Rpm | Bearing Type | Body Dia. | Overall Length | Shaft Length | Usable @ 200v | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 048C34S24 | 1/5 hp | 115/230V AC | 3450 RPM | Ball | 6 3/4" | 8 3/8" | 1 3/4" | Yes | $377.86 | |
| B | 048S17T286 | 1/8 hp | 115V AC | 1725 RPM | Ball | 6 3/4" | 7 9/16" | 1 3/4" | No | $232.08 | |
| C | 048S17T290 | 1/6 hp | 115V AC | - | Ball | 6 3/4" | 7 9/16" | 1 3/4" | No | $320.61 | |
| D | 048C34D2024 | 1/3 hp | 115/208-230V | 3450 RPM | Ball | 6 3/4" | 10 5/16" | 1 3/4" | No | $348.60 | |
| E | 048S34S2005 | 1/6 hp | - | 3450 RPM | Ball | 5 5/8" | 7 1/4" | 1 13/16" | No | $288.01 | |
| F | 048C34D2028 | 1/2 hp | 115/208-230V AC | 3450 RPM | Ball | 6 3/4" | 10 13/16" | 1 3/4" | No | $403.46 | |
| G | 048S34S2003 | 1/4 hp | 115V AC | 3450 RPM | Sleeve | 6 1/2" | 8 1/8" | 2 1/8" | No | $300.57 |
