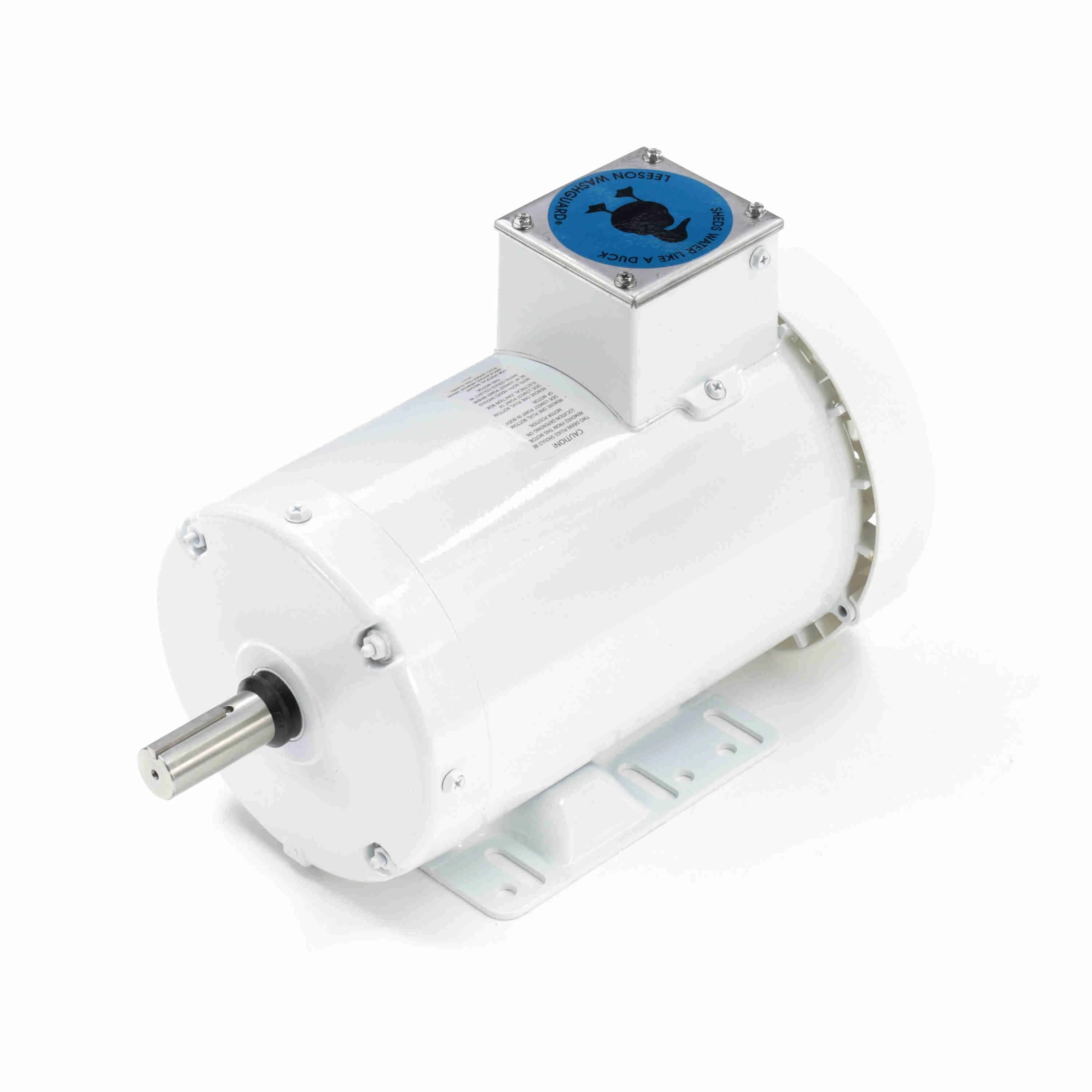

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Application | Farm Duty |
| Bearing Type | Ball |
| Code | J |
| Design | INV, J |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Frame | 145T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.6-8.9/4.3A |
| Grease Type | Polyrex EM |
| Hp | 3 hp |
| Includes | Gasketed Conduit Box, Shaft Slinger |
| Insulation Class | Class F |
| Length Less Shaft | 11 1/2" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
|---|---|
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Hatchery |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Output Kw | 2.24 kW |
| Overall Length | 13 3/4" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 79 |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Motor Thermal Protection | None |
| Standards | CSA (LR2025), UL (E49747) |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 20.7 |
