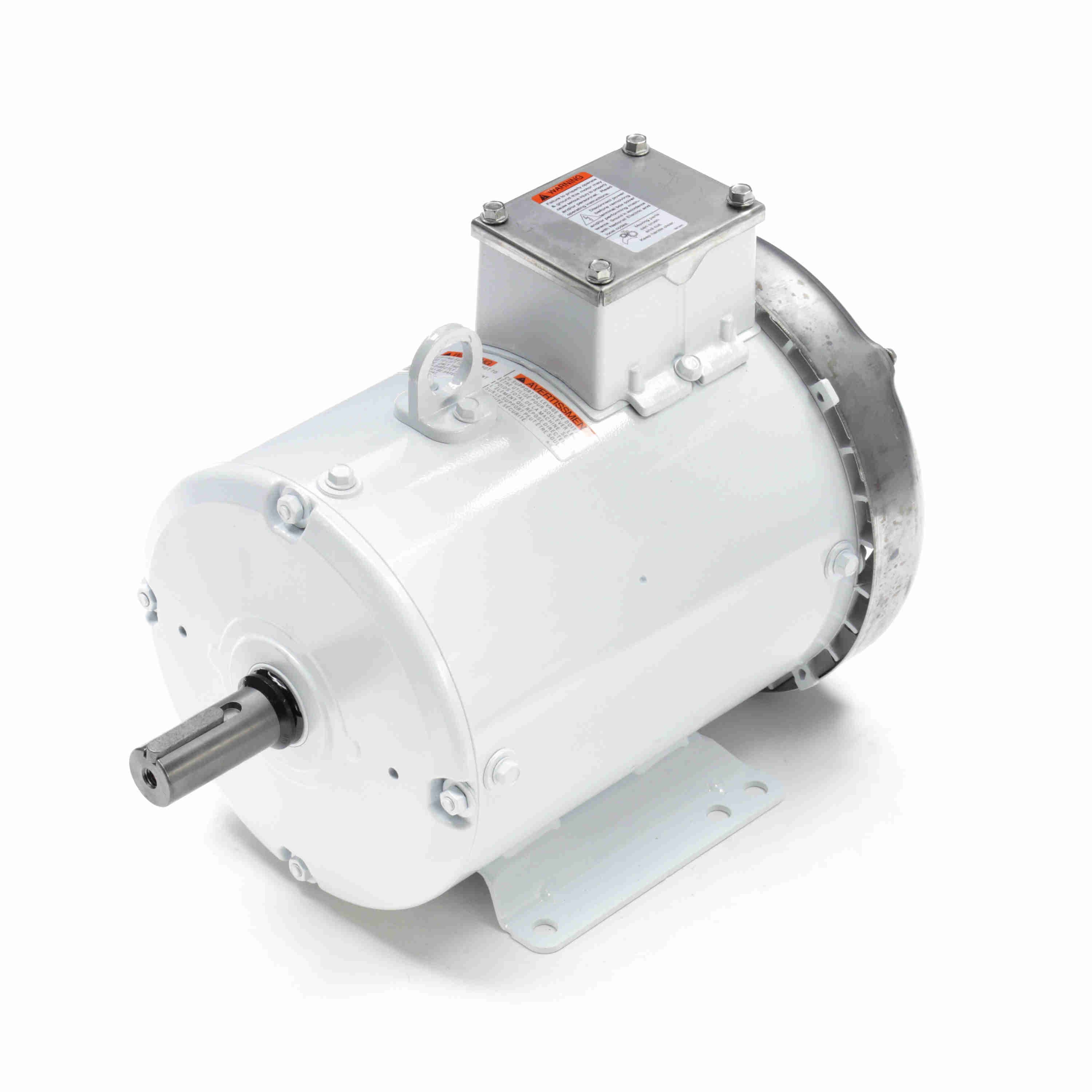

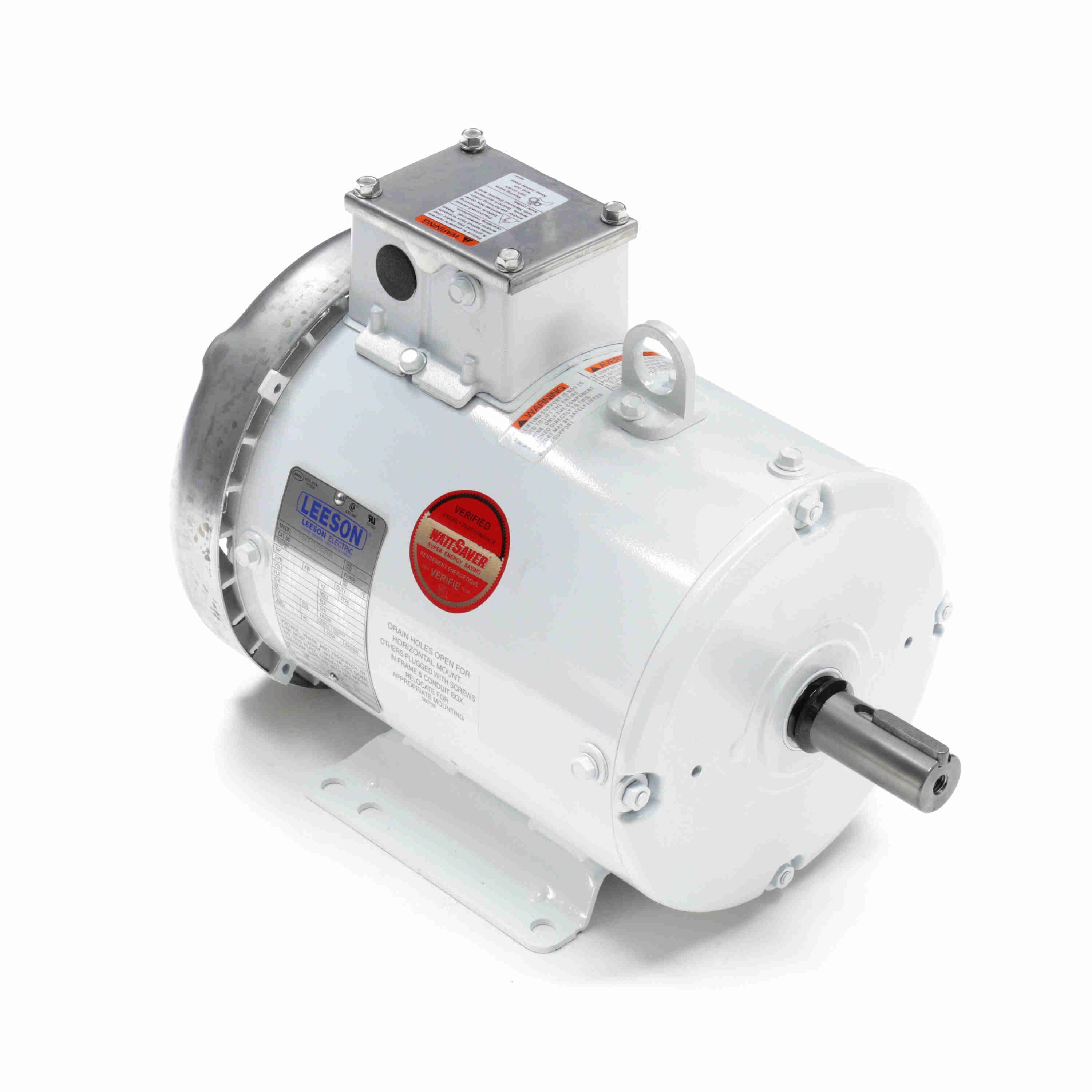

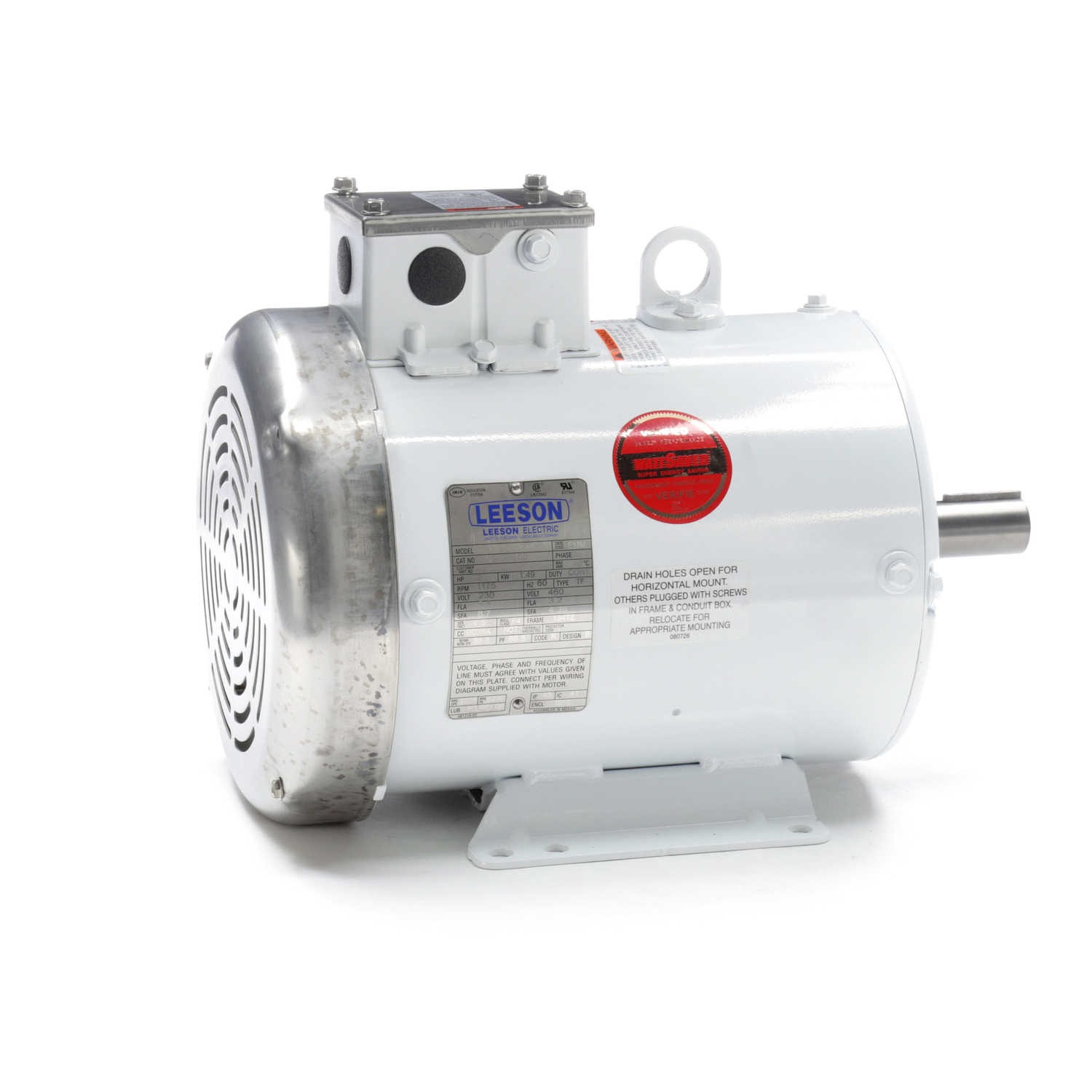

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Application | Farm Duty |
| Bearing Type | Ball |
| Code | K |
| Design | B, K |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Enclosure Type | Tefc |
| Frame | 184TZ |
| Frame Material | Rolled Steel |
| Frame Type | 184TZ |
| Frequency | 60 Hz |
| Full Load Amps | 6.4/3.2A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Hz | 60 Hz |
| Includes | Gasketed Conduit Box, Shaft Slinger |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 1.5 kW |
| Length Less Shaft | 12 1/8" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Hatchery |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1175 RPM |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Overall Length | 14 15/16" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 66.5 |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.5 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2.81" |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Motor Thermal Protection | None |
| standard | CSA (LR2025), UL (E49747) |
| Height (cm) | 31.45 |
|---|---|
| Length (cm) | 51.13 |
| Width (cm) | 37.16 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 38.025 |
