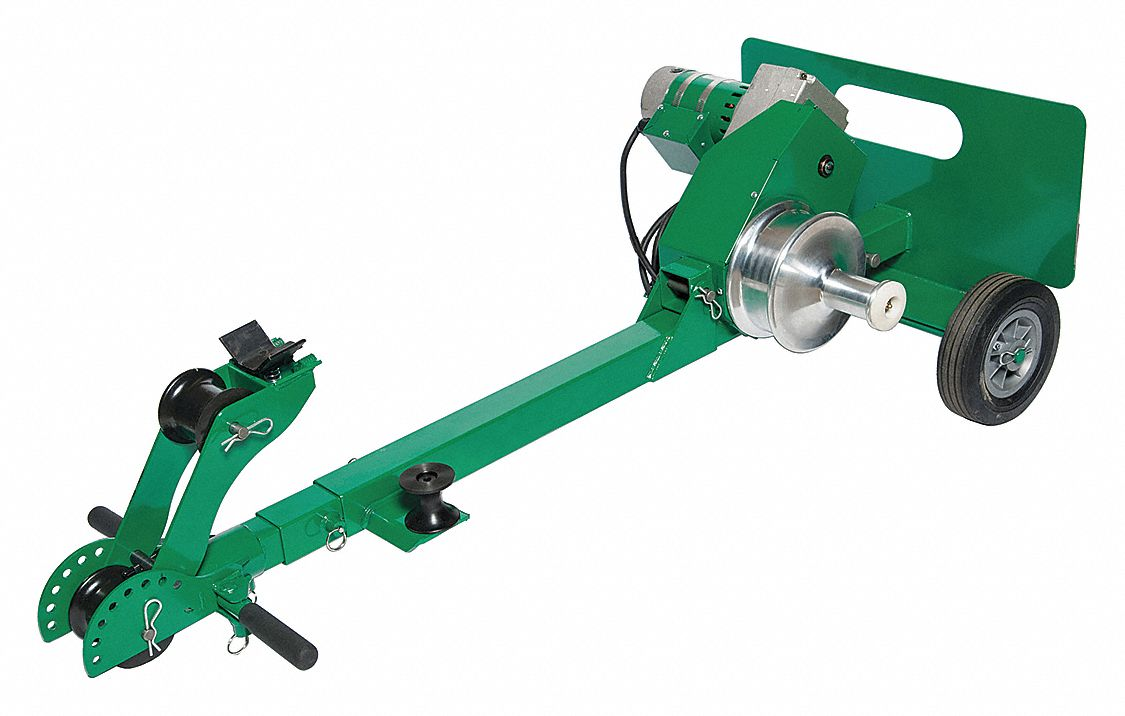

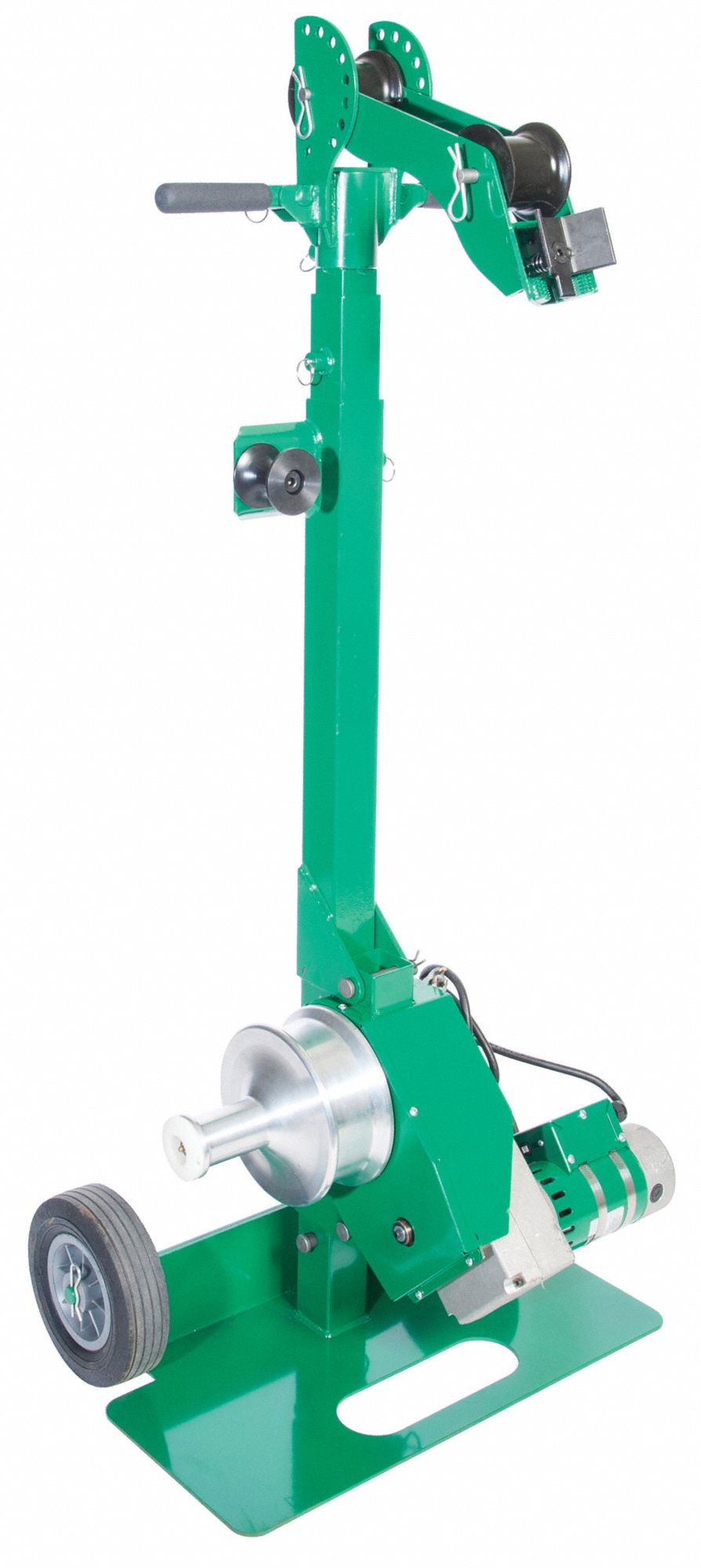

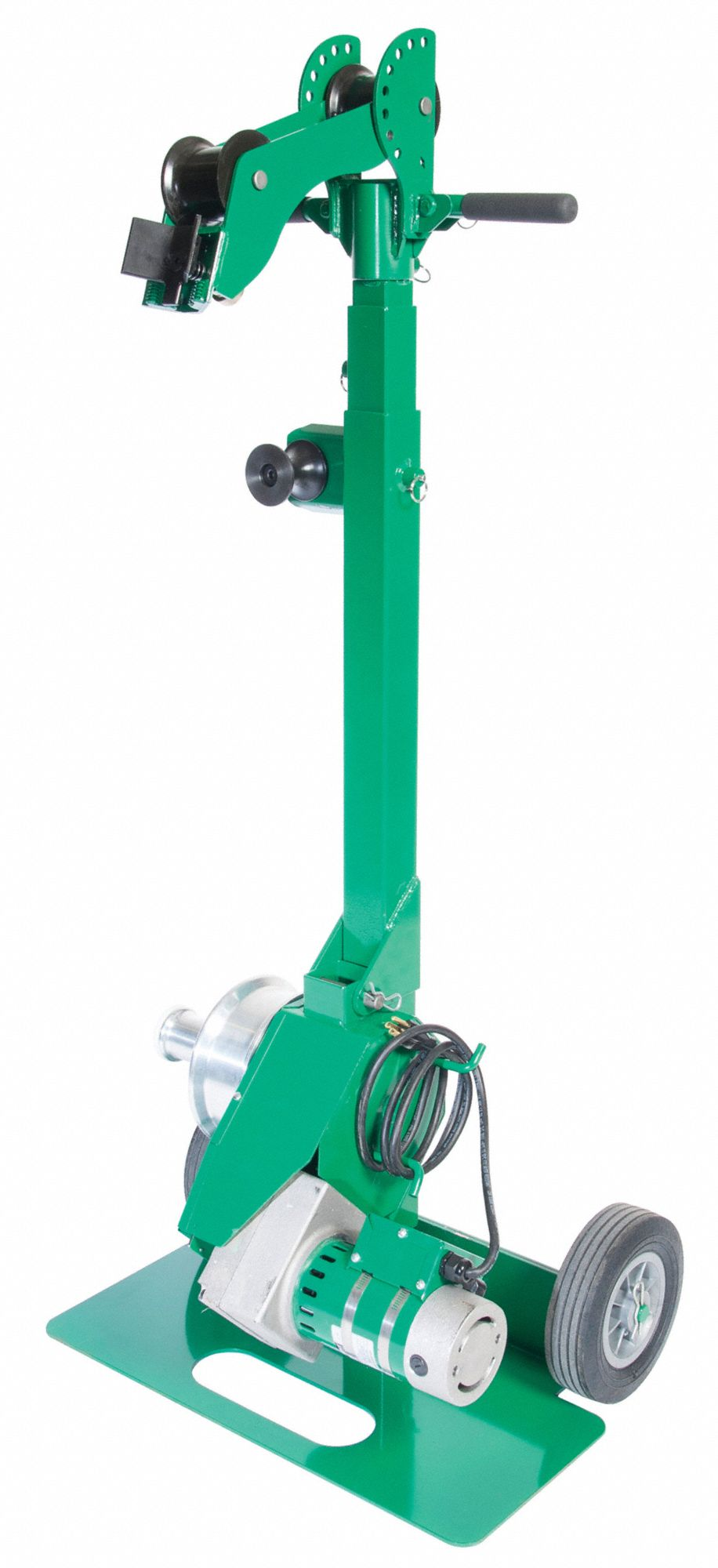

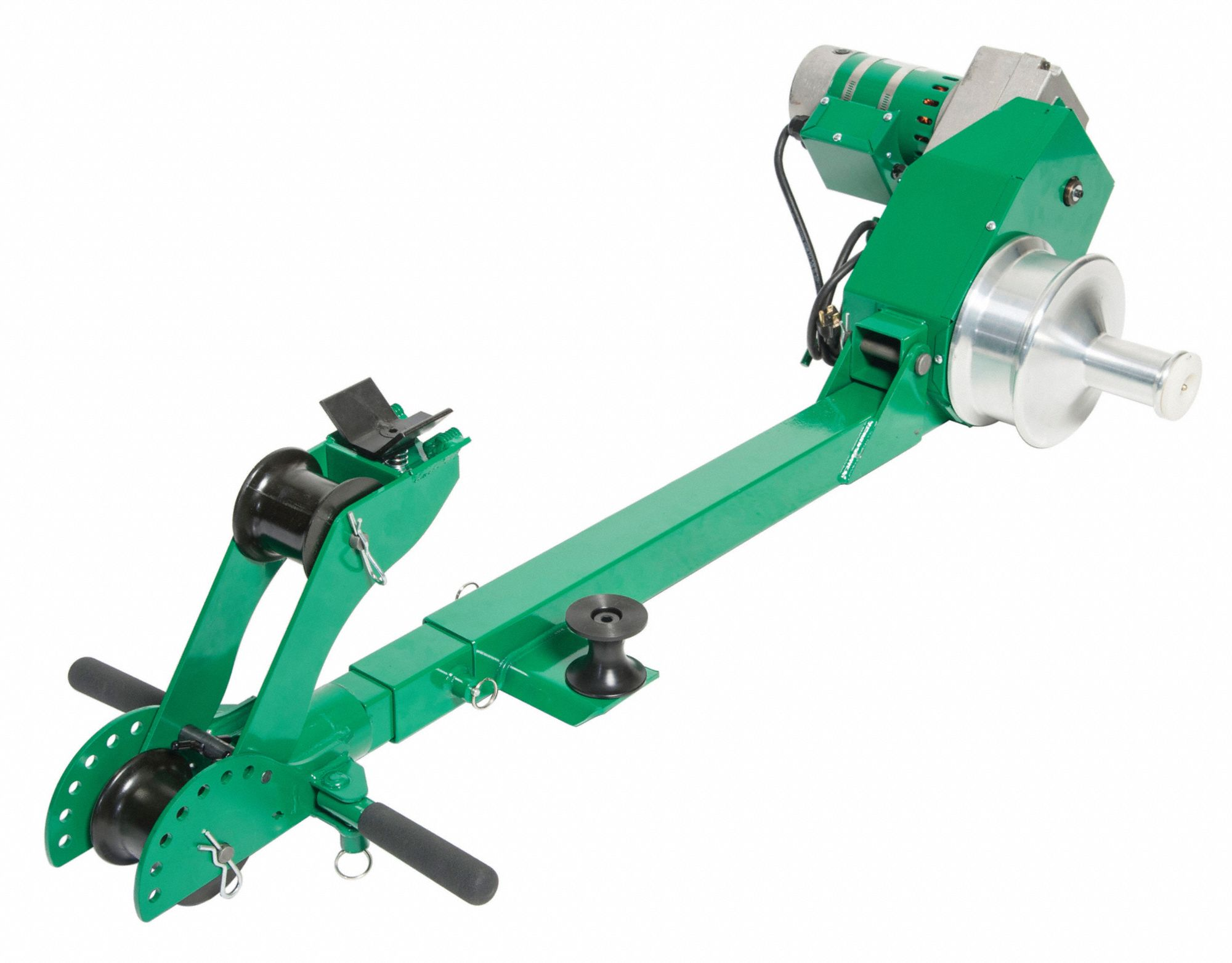

| Item | Cable Puller |
|---|---|
| Amps | 12A |
| Application | Pull Cable 4/0 Kcmil To 1000 Kcmil Cable |
| Boom Length | 6 ft. |
| Cable Capacity | 4 kcmil to 1000 kcmil |
| Cable Type | Electrical Cable |
| Capacity | Speed (High) No Load @ 97 Ft./Min. (30 M/Min.) 500 Lb @ 59 Ft./Min. (18 M/Min) 1000 Lbs. @ 36 Ft./Min. (11 M/Min.) Speed (Low) No Load @ 41 Ft./Min. (12 M/Min.) 1000 Lbs. @ 21 Ft./Min. (6 M/Min) 2000 Lbs. (Intermittent“ 5 Min. On, 20 Min. Off)@ 13 Ft./Min. (4 M/Min.) |
| Continuous Rating Load | 1200 lbs. |
| Display Qty | 1 |
| Features | No Loose Components |
| Frequency | 1 Hz |
| Function | For Cable Pulling |
| Hp | 1 hp |
| Intermittent Load | 2000 lbs. |
| Max. Continuous Pulling Force | 1200 lbf. |
| Max. Momentary Pulling Force | 2000 lbf. |
| Mounting | Boom |
| Mounting Type | Wheeled |
| No Load Pulling Speed | 97 FPM |
|---|---|
| Number Of Wheels | 2 |
| Overall Height | 54" |
| Overall Length | 16 4/5" |
| Overall Width | 23 2/5" |
| Power Source | Corded |
| Pulling Speed At Max. Continuous Pulling Force | 36 FPM |
| Required Pulling Rope Diameter | 1/2" |
| Required Pulling Rope Type | Double Braided Composite |
| Speed | Pulling Rope 1/2" Polyester (10000 lbs. Minimum Breaking Strength), 00444-Foot Switch |
| Tool Type | Cable Puller |
| Tool Weight | 123 lbs. |
| Type | Puller Assembly |
| Use With | 1/2" Double-Braided Composite Rope |
| Voltage | 115V AC |
| Voltage Rating | 120V |
| Wheel Size | 8" |
| Wheel Type | Solid |
| Height (cm) | 41.91 |
|---|---|
| Length (cm) | 27.94 |
| Width (cm) | 116.84 |
| HS Code | 8425310100 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 64.8 |
| Style | Model | Material | Type | Boom Length | No Load Pulling Speed | Tool Weight | Max. Momentary Pulling Force | Hp | Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

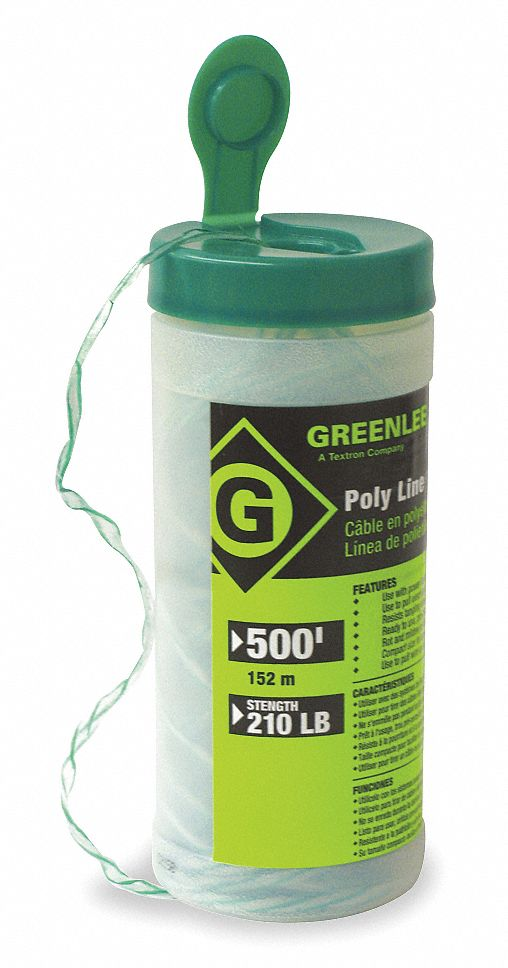

| A | 430-500 | Plastic | Twine, Spiral Wrap, Tracer | - | - | - | - | - | - | $35.93 | |
| B | 6900 | - | Puller Assembly | Not Applicable | 16 FPM | 88 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | $15,824.40 | |

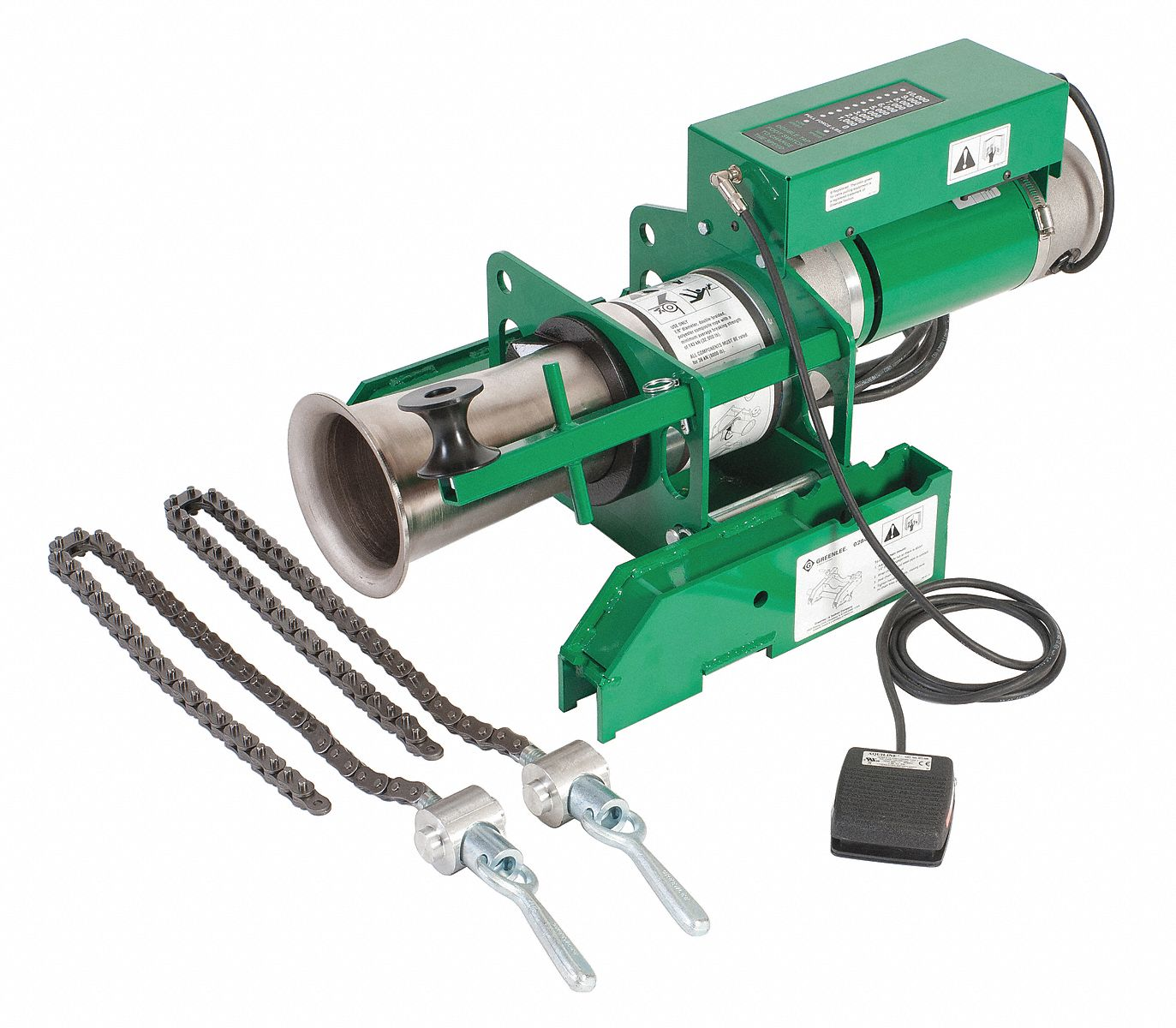

| C | 6901 | - | Puller Assembly | Not Applicable | 16 FPM | 88 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | $16,683.35 | |

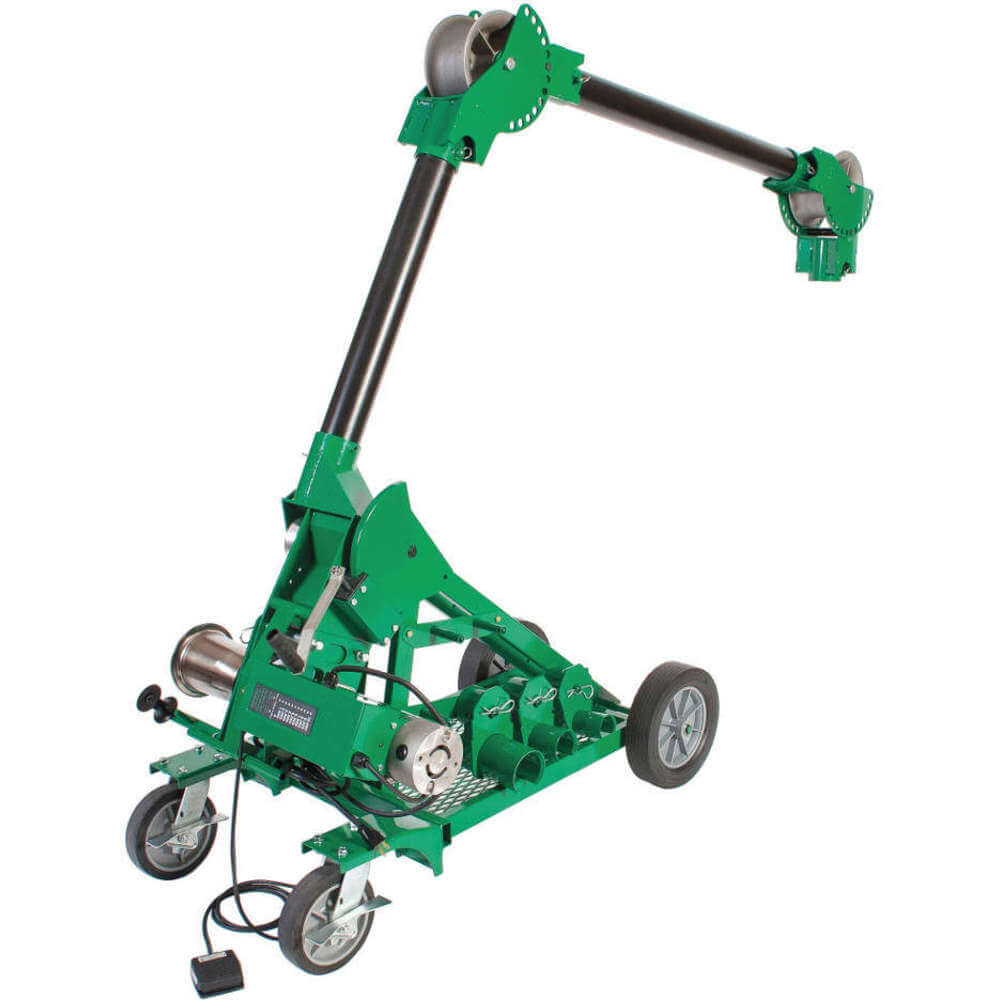

| D | 6906 | - | Puller Assembly | 20 ft. | 16 FPM | 408 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | $25,546.26 | |

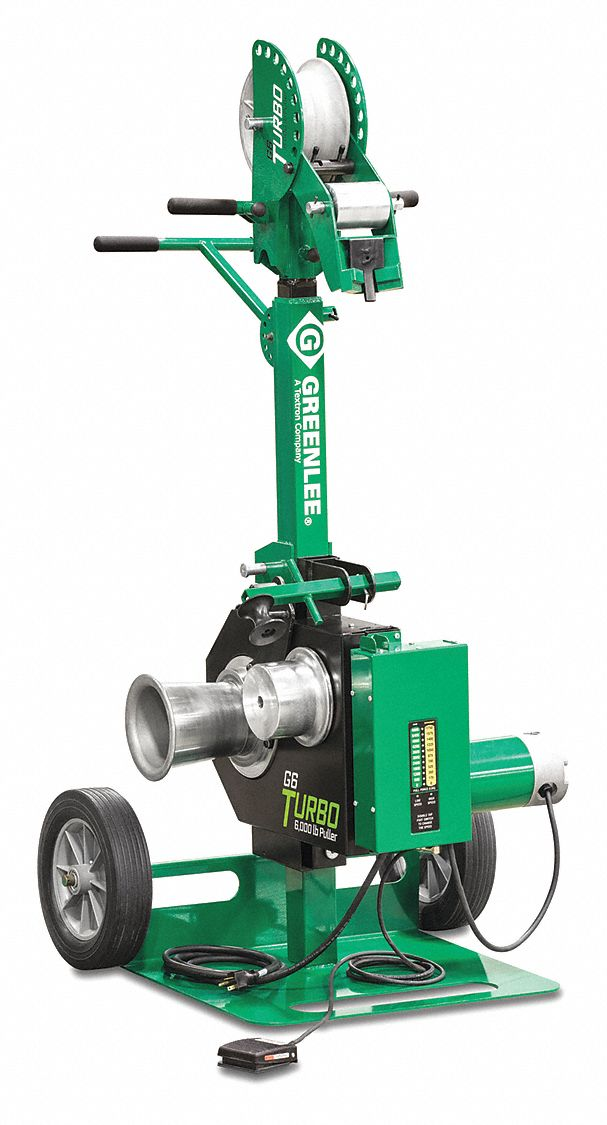

| E | G6 | - | Electric | 7.5 ft. | 90 FPM | 252 lbs. | 6000 lbf. | 1 1/2 hp | - | $15,732.61 | |

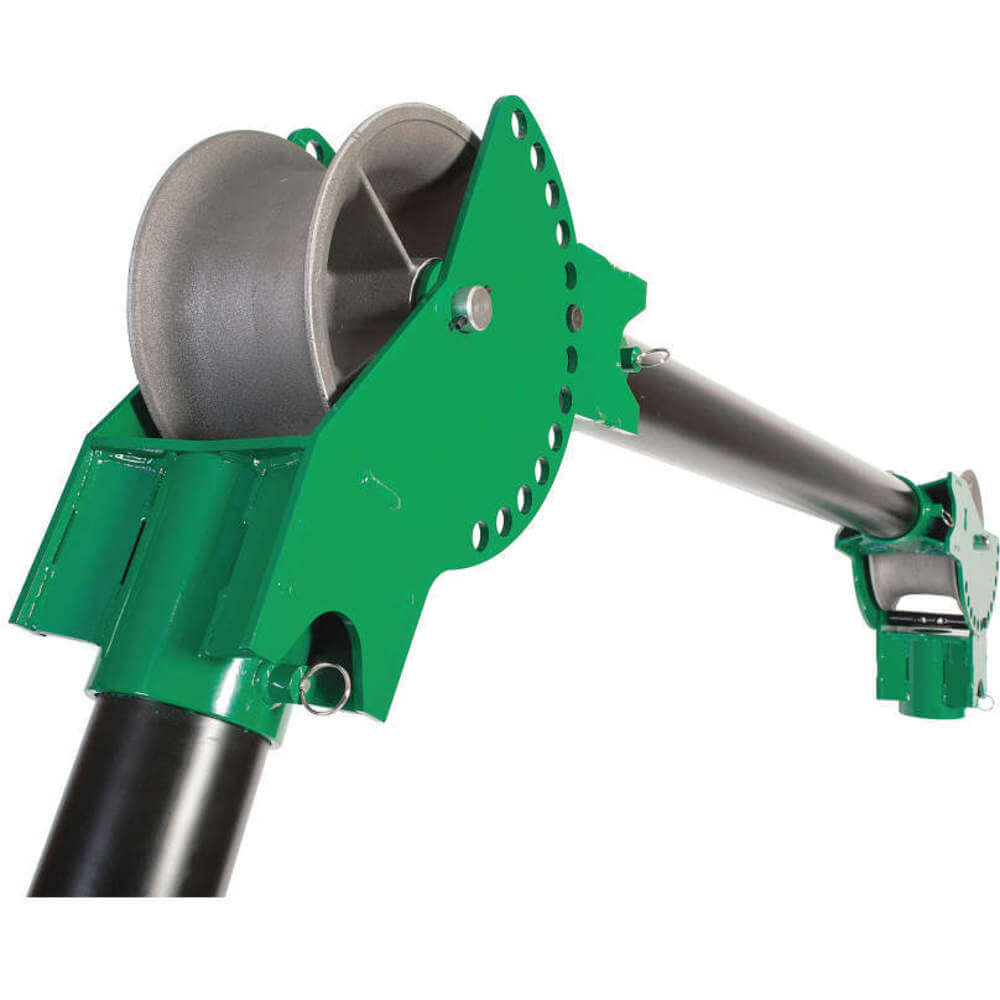

| F | MVB | Rubber, Plastic | Cable Puller | - | - | - | - | - | - | $11,395.78 | |

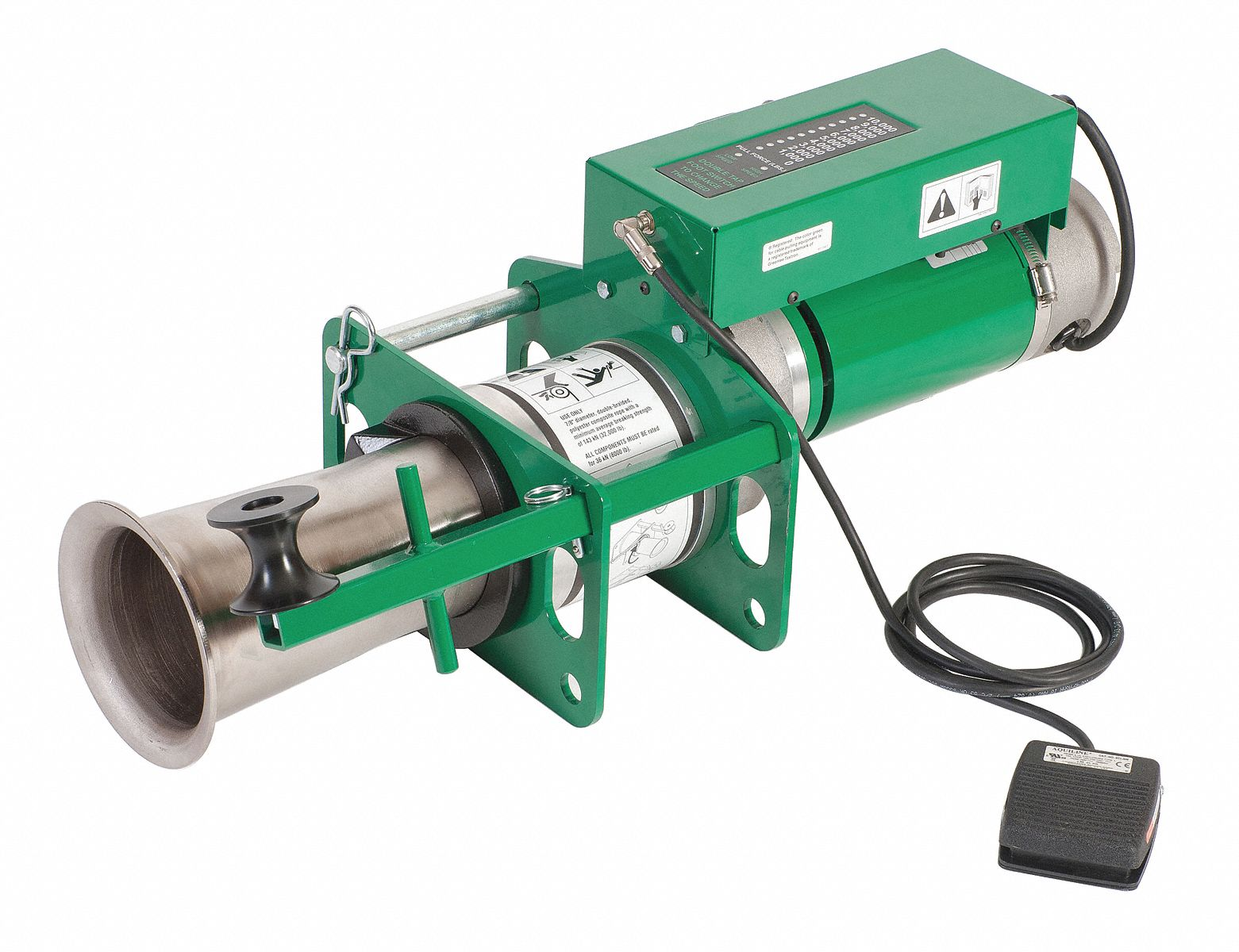

| G | UT10-2S | - | Puller Assembly | Not Applicable | 16 FPM | 86 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | $14,750.74 |
