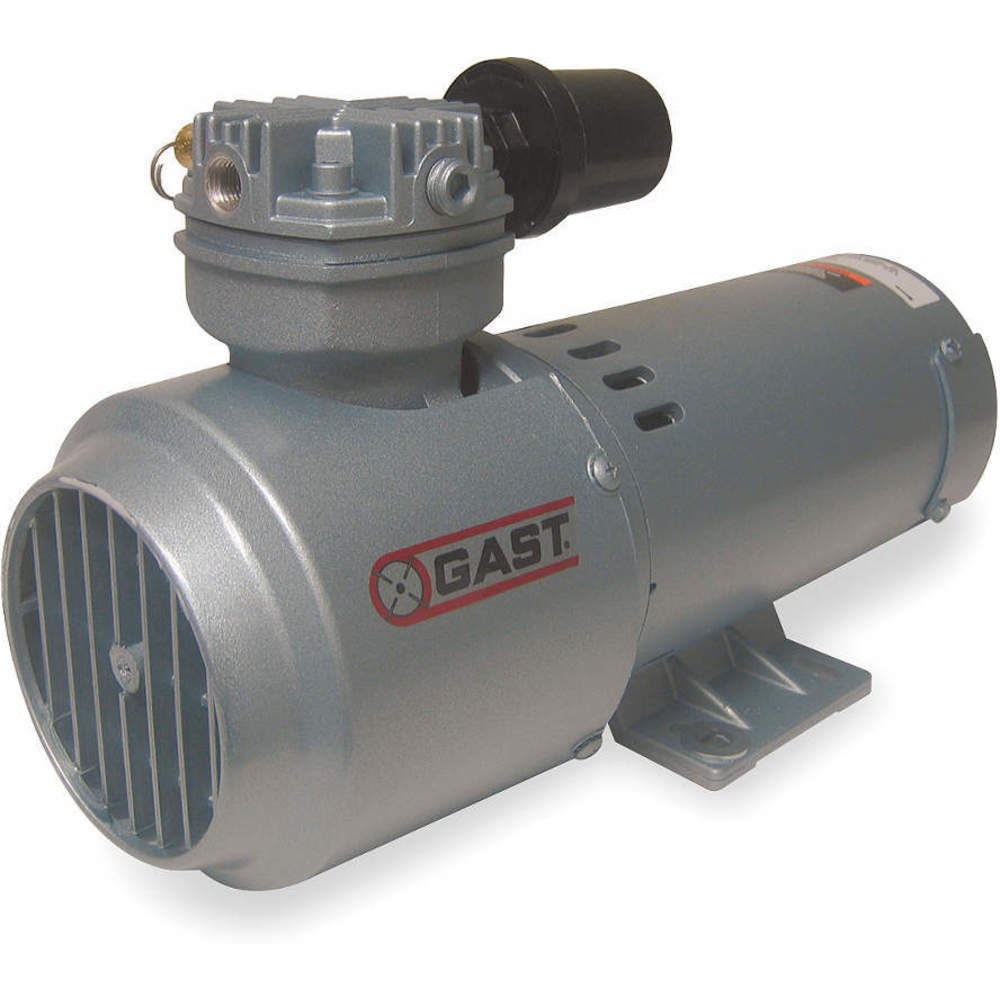

| Item | Piston Air Compressor |
|---|---|
| Current Rating | 46A |
| Cylinder Material | Aluminum |
| Duty Cycle | Continuous |
| Finish | Paint |
| Free Air Cfm @ 20 Psi | 1.4 CFM |
| Free Air Cfm @ 50 Psi | 1.1 CFM |
| Free Air Flow Rate | 2.1 CFM |
| Full Load Amps | 46A |
| Hp | 1/3 hp |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Lubrication Type | Oil Free |
| Maximum Continuous Pressure | 100 psi |
| Maximum Intermittent Pressure | 100 psi |
| Maximum Operating Temperature | 100°F |
| Maximum Speed | 1800 RPM |
| Minimum Operating Temperature | 32°F |
| Motor Type | Open |
|---|---|
| Number Of Cylinders | 1 |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/3 hp |
| Overall Height | 8 5/8" |
| Overall Length | 14" |
| Overall Width | 5 5/8" |
| Phase | Single |
| Piston Type | Reciprocating |
| Pump Type | Piston |
| Sound Level | 75 dBA |
| Tank Style | Tankless |
| Temp. Range | +32°F to +100°F |
| Thermal Protection | Automatic Reset |
| Valve Material | Stainless Steel |
| Valve Type | High Strength, Low Lift Stainless Steel |
| Voltage | 12V DC |
| Height (cm) | 30.73 |
|---|---|
| Length (cm) | 45.47 |
| Width (cm) | 29.46 |
| HS Code | 8414801615 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 12.96 |
| Style | Model | Number Of Cylinders | Phase | Max. Pressure | Hp | Flow @ 60 Hz | Duty Cycle | Thermal Protection | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2HAH-10-M200X | 1 | Single | 100 psi | - | - | 100% | Yes | 12.913" | $1,458.45 | |
| B | 3HBB-10-M300AX | 2 | Single | 100 psi | - | - | 100% | Yes | 12.45" | $1,761.39 | |
| B | 4HCC-10-M450X | 2 | Single | 100 psi | - | - | 100% | Yes | 14.33" | $1,929.35 | |
| C | 5HCD-10-M550NGX | 2 | - | 100 psi | - | - | 100% | Yes | 14.645" | $2,589.49 | |
| D | 6HCA-10-M616NEX | 2 | Single | 100 psi | 1 hp | - | 100% | Yes | 15 17/25" | $2,912.24 | |
| E | 7HDD-10-M750X | 2 | Single | 100 psi | - | - | 100% | Yes | 21" | $4,555.19 | |
| F | 8HDM-10-M853 | 2 | - | 100 psi | 2 hp | 11 CFM | 100% | No | 21.579" | $5,128.98 |
