| Item | Piston Air Compressor |
|---|---|
| Compressor/pump Enclosure Material | Aluminum, Plastic |
| Control Type | Pressure Switch |
| Cylinder Material | Aluminum |
| Duty Cycle | 100% |
| Electrical Connection | Spade Terminal |
| Enclosure Rating | IP20 |
| Enclosure Type | Clean Dust Free |
| Engine Enclosure Material | Steel |
| Exhaust Location | Front |
| Finish | Painted |
| Free Air Flow Rate | 3.52 CFM |
| Frequency | 60 Hz |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Life Expectancy | 16000 hrs. |
| Lubrication Type | Oilless |
| Max. Continuous Pressure | 100 psi |
| Max. Intermittent Pressure | 100 psi |
| Max. Pressure | 100 psi |
| Max. Speed | 1725 RPM |
| Maximum Operating Temperature | 104°F |
| Mfr. Series | GAST |
| Minimum Operating Temperature | 41°F |
|---|---|
| Motor Type | Capacitor Start |
| Mounting Hole Dia. | 1 1/4" |
| Number Of Cylinders | 2 |
| Outlet Gender | Female |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Overall Height | 8.582" |
| Overall Length | 14.33" |
| Overall Width | 11.968" |
| Phase | Single |
| Piston Type | Reciprocating |
| Power Output | 1/2 hp |
| Power Source | Corded Electric |
| Pump Type | Piston |
| Series | GAST Series |
| Sound Level | 74 dBA |
| Standards | Nfpa 13 |
| Tank Style | Tankless |
| Thermal Protection | Yes |
| Valve Material | Stainless Steel |
| Valve Type | Reed |
| Voltage | 115/230V |
| Height (cm) | 46.57 |
|---|---|
| Length (cm) | 44.03 |
| Width (cm) | 49.11 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 14.85 |
| Style | Model | Number Of Cylinders | Phase | Max. Pressure | Hp | Flow @ 60 Hz | Duty Cycle | Thermal Protection | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

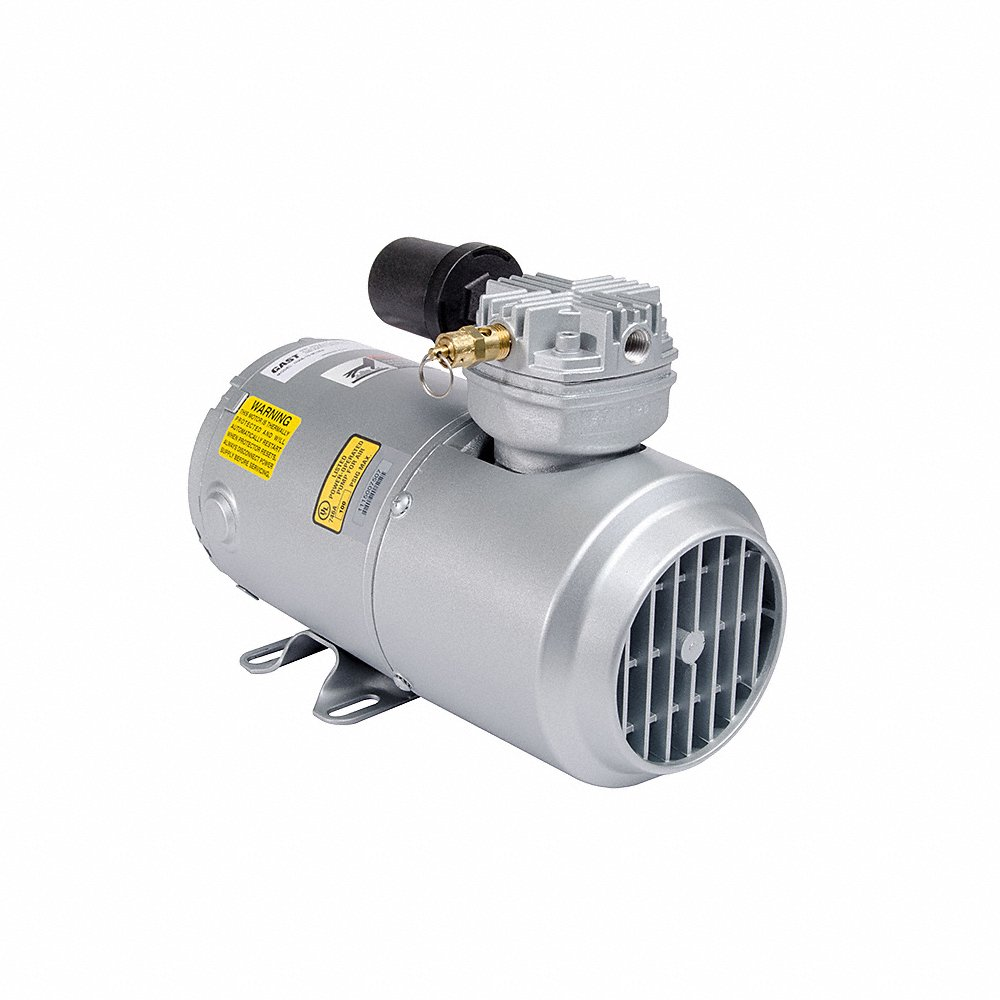

| A | 2HAH-10-M200X | 1 | Single | 100 psi | - | - | 100% | Yes | 12.913" | $1,458.45 | |
| B | 3HBB-10-M300AX | 2 | Single | 100 psi | - | - | 100% | Yes | 12.45" | $1,761.39 | |

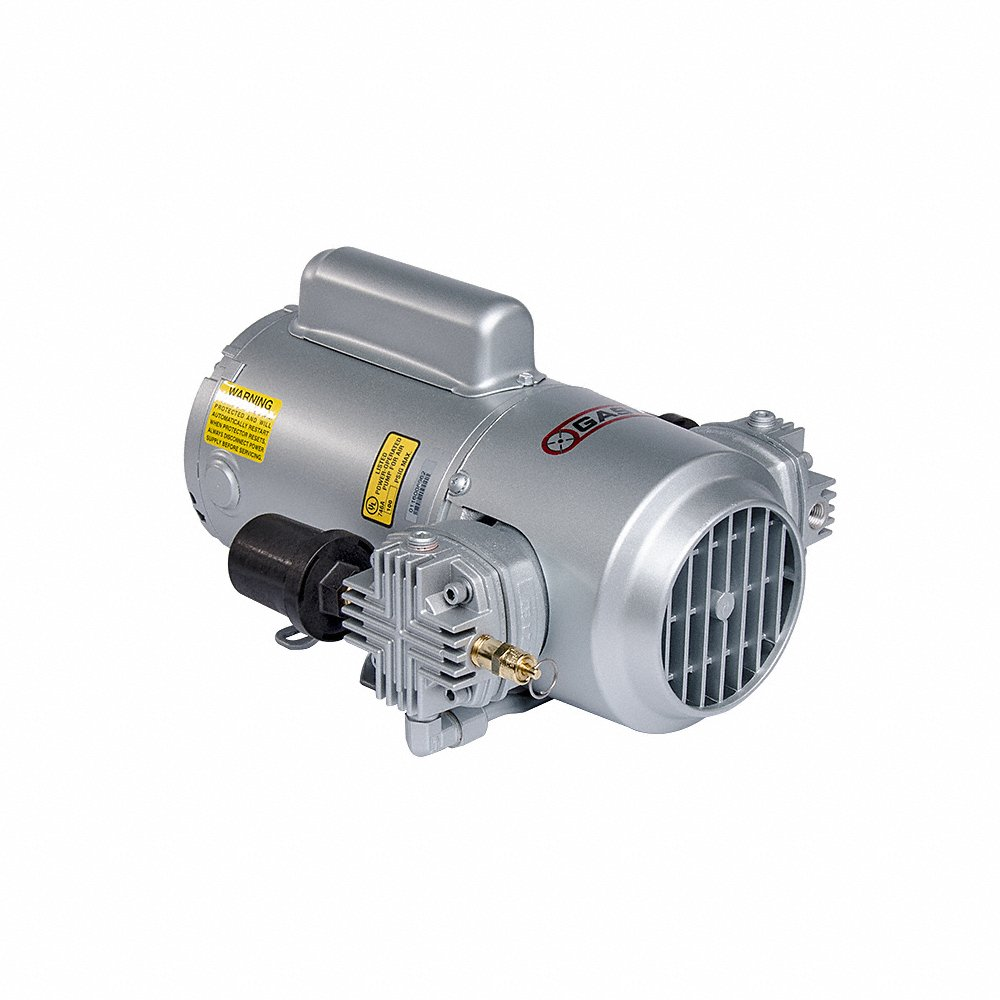

| C | 5HCD-10-M550NGX | 2 | - | 100 psi | - | - | 100% | Yes | 14.645" | $2,589.49 | |

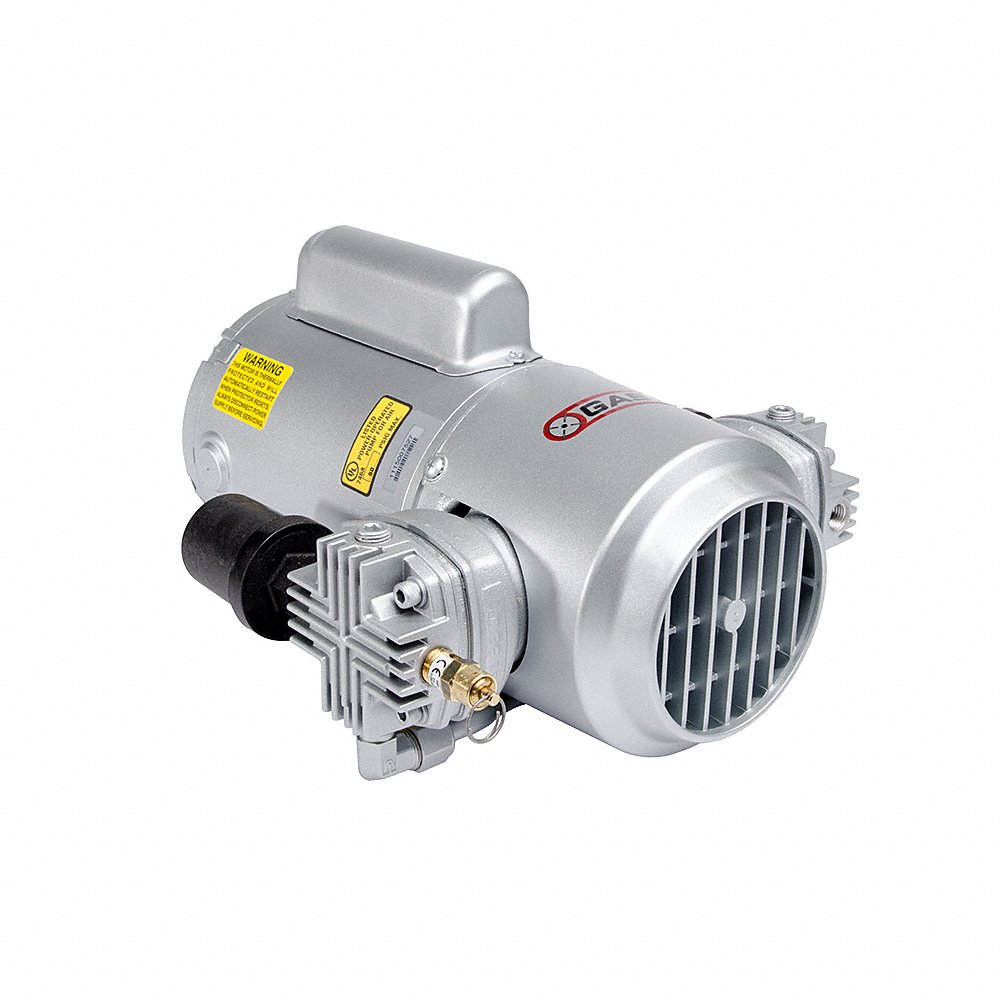

| D | 6HCA-10-M616NEX | 2 | Single | 100 psi | 1 hp | - | 100% | Yes | 15 17/25" | $2,912.24 | |
| E | 7HDD-10-M750X | 2 | Single | 100 psi | - | - | 100% | Yes | 21" | $4,555.19 | |
| F | 8HDM-10-M853 | 2 | - | 100 psi | 2 hp | 11 CFM | 100% | No | 21.579" | $5,128.98 | |

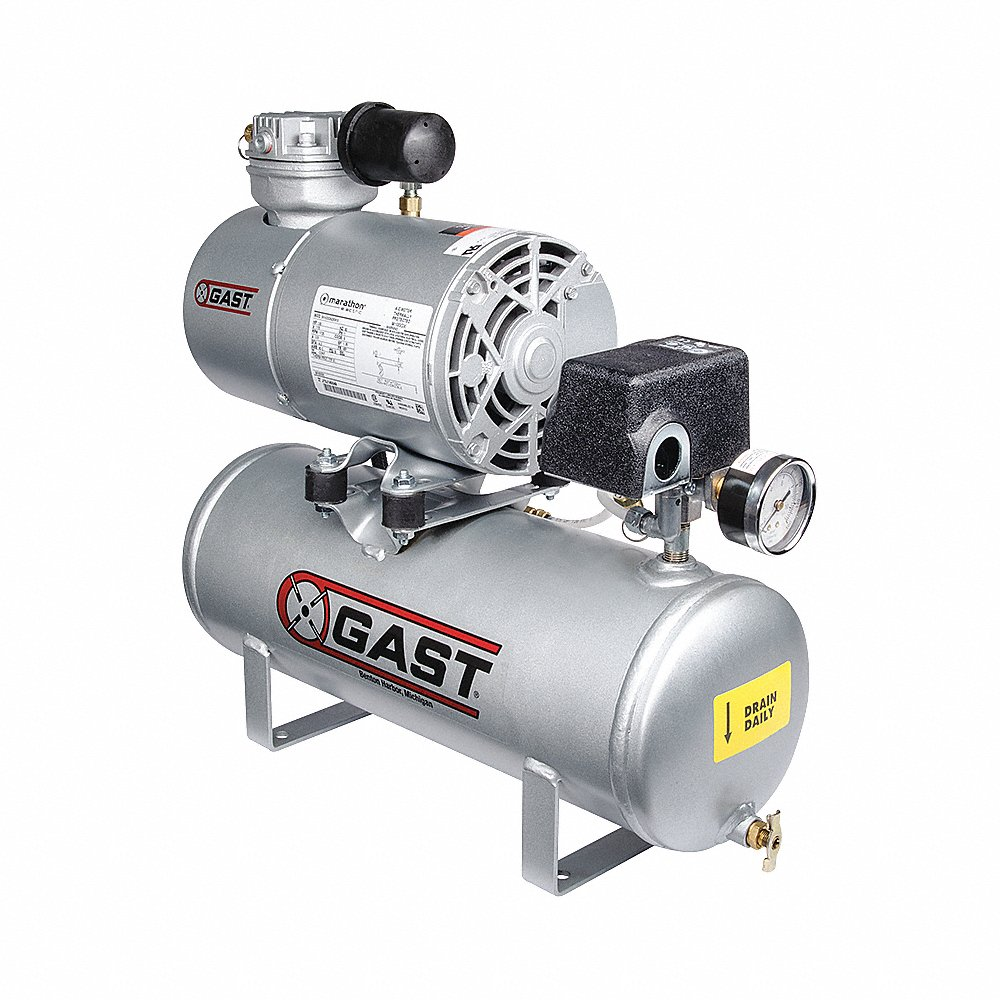

| G | 1HAB-11T-M100X | 1 | Single | 100 psig | 3/25 hp | - | 100% | Yes | 17.53" | $2,943.19 |
