| Item | Mixed Flow Duct Fan |
|---|---|
| Airflow @ 0.000 In Sp | 2156 CFM |
| Application | General Purpose |
| Bearing Type | Sealed Ball |
| Cfm @ 0.000-in. Sp | 2156 CFM |
| Cfm @ 0.125-in. Sp | 2061 CFM |
| Cfm @ 0.250-in. Sp | 1965 CFM |
| Cfm @ 0.375-in. Sp | 1868 CFM |
| Cfm @ 0.500-in. Sp | 1764 CFM |
| Cfm @ 0.750-in. Sp | 1520 CFM |
| Cfm @ 1.000-in. Sp | 1193 CFM |
| Cfm @ Duct | 2156 CFM |
| Duct Dia. | 14" |
| Fits Duct Dia. | 14" |
| Flange Width | 1 5/8" |
| For Fan Type | Centrifugal Duct Fan |
| High-efficiency Motor | No |
| Housing Dia. | 17 7/8" |
| Housing Finish | Galvanized , Steel |
| Includes | Mounting Brackets |
| Inlet And Outlet Dia. | 14" |
|---|---|
| Length | 17 1/4" |
| Max. Amps | 4.76A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 495 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Ip Rating | IP54 |
| Motor Output Power | 444 W |
| Motor Speed | 1700 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 120V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 17 7/8" |
| Overall Height | 17 1/4" |
| Overall Width | 17 7/8" |
| Phase | 1 |
| Speed Control | Yes |
| Speed Control Included | No |
| Standards | AMCA, CULUS |
| Height (cm) | 61 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 50.8 |
| HS Code | 8414596560 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 20.9964 |
| Style | Model | Phase | Airflow @ 0.000 In Sp | Motor Ip Rating | Motor Speed | Duct Dia. | Motor Output Power | Bearing Type | Inlet And Outlet Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

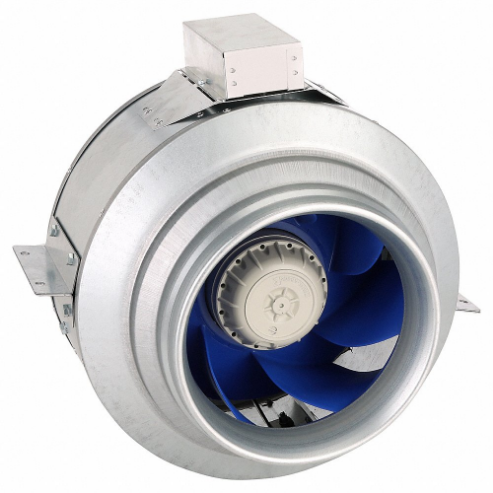

| A | FKD12XL | 1 | 2016 CFM | IP54 | 1700 RPM | - | - | Ball | 11 7/8" | $1,277.81 | |
| B | FKD 8XL | 1 | 836 CFM | IP44 | - | 8" | 318 W | Sealed Ball | 8" | $745.05 | |
| C | FKD 10 | 1 | 910 CFM | IP44 | - | 10" | 305 W | Sealed Ball | 10" | $842.24 | |

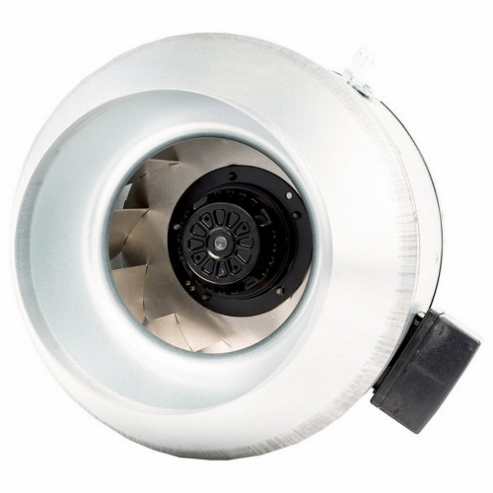

| D | FKD 10XL | 1 | 1266 CFM | IP44 | 2850 RPM | - | - | Sealed Ball | 10" | $981.51 | |
| E | FKD 14XL | 1 | 2619 CFM | IP54 | 1550 RPM | 14" | 716 W | Sealed Ball | 14" | $2,148.50 | |
| F | FKD 16XL | 1 | 4274 CFM | IP54 | 1600 RPM | 16" | - | Sealed Ball | 16" | $2,923.52 | |

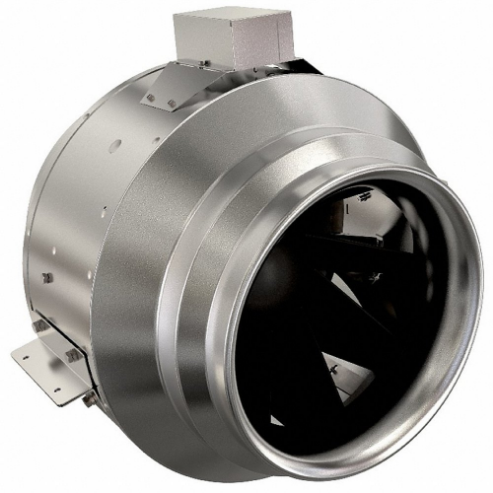

| G | FKD 18 | 1 | 3951 CFM | IP54 | 1600 RPM | - | - | Sealed Ball | 18" | $2,171.61 |
