| Item | Hydraulic Pump |
|---|---|
| Actuation Type | Foot, Hand |
| Air Consumption | 12 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Type | 3 Position, 3 Way |
| Cylinder Compatibility | Single Acting |
| Dimension A | 12.33" |
| Dimension B | 6.49" |
| Dimension C | 8.29" |
| Dimension D | 9 1/25" |
| Dimension E | 4" |
| Dimension J | 5 3/4" |
| Dimension L | 1.65" |
| Dimension M | 13.62" |
| Displacement @ 10,000 Psi | 10 cu. in./min. |
| Displacement @ No Load | 60 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
|---|---|
| Max. Air Consumption | 12 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 10 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 76 dBA |
| Media Intake Connection Size | 3/8" |
| Oil Capacity | 127 cu. in. |
| Overall Height | 8" |
| Overall Length | 13.6" |
| Overall Width | 6 1/2" |
| Power Source | Air |
| Reservoir Capacity | 127 cu. in. |
| Sound Level | 76 dBA |
| Treadle | Three Position |
| Treadle Design | Three Position |
| Type | Air Powered |
| Valve Operation | Manual |

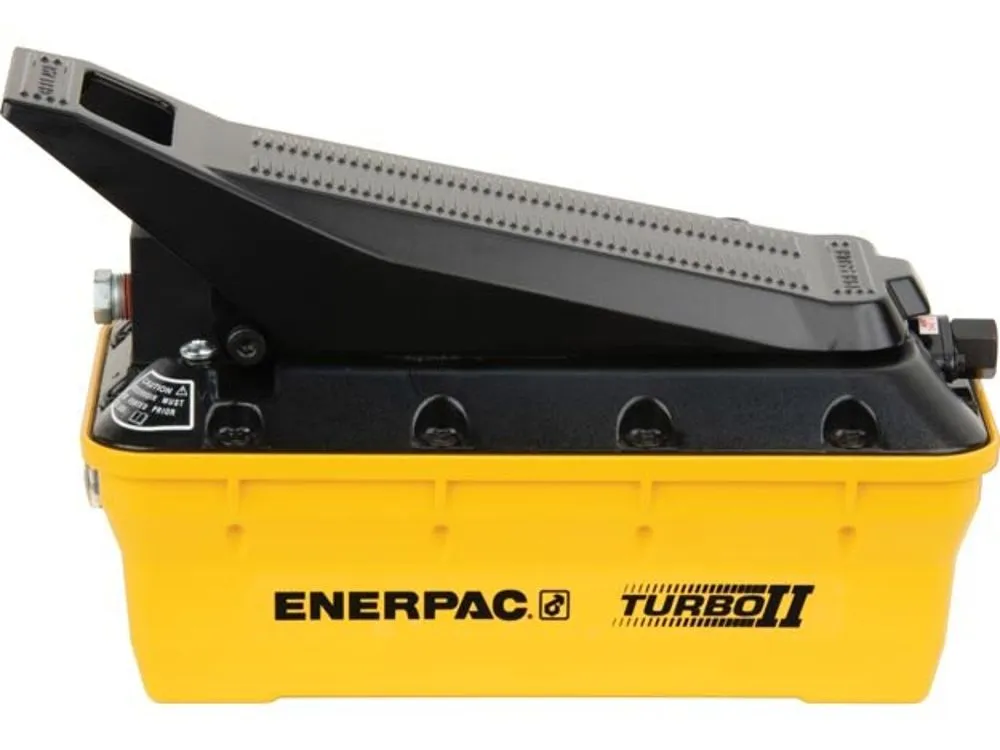

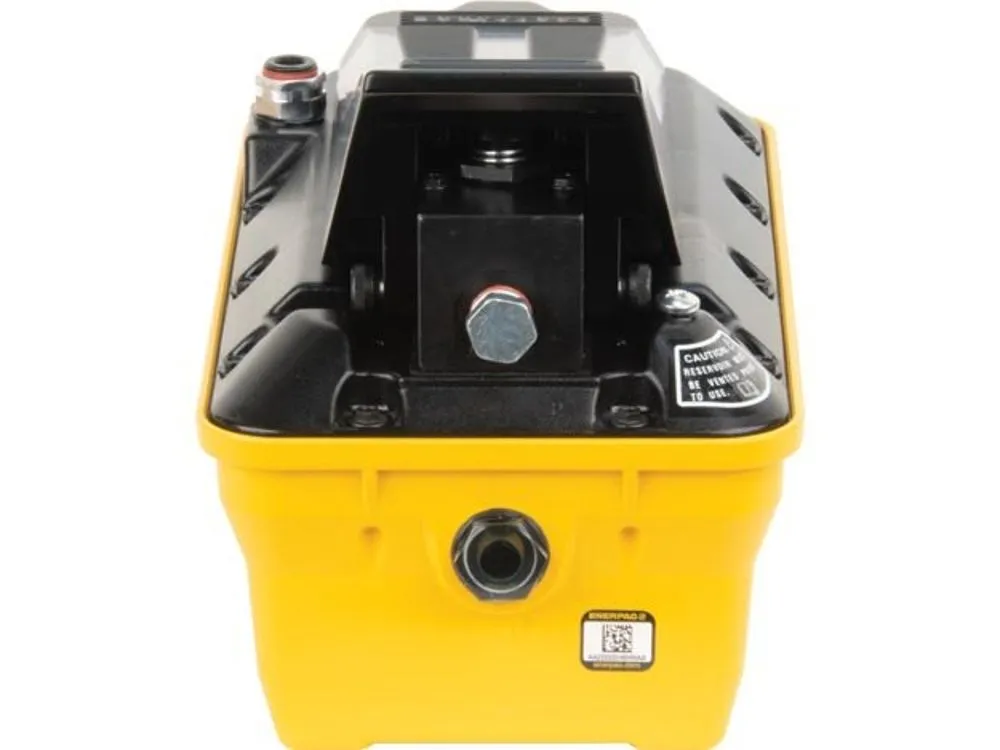

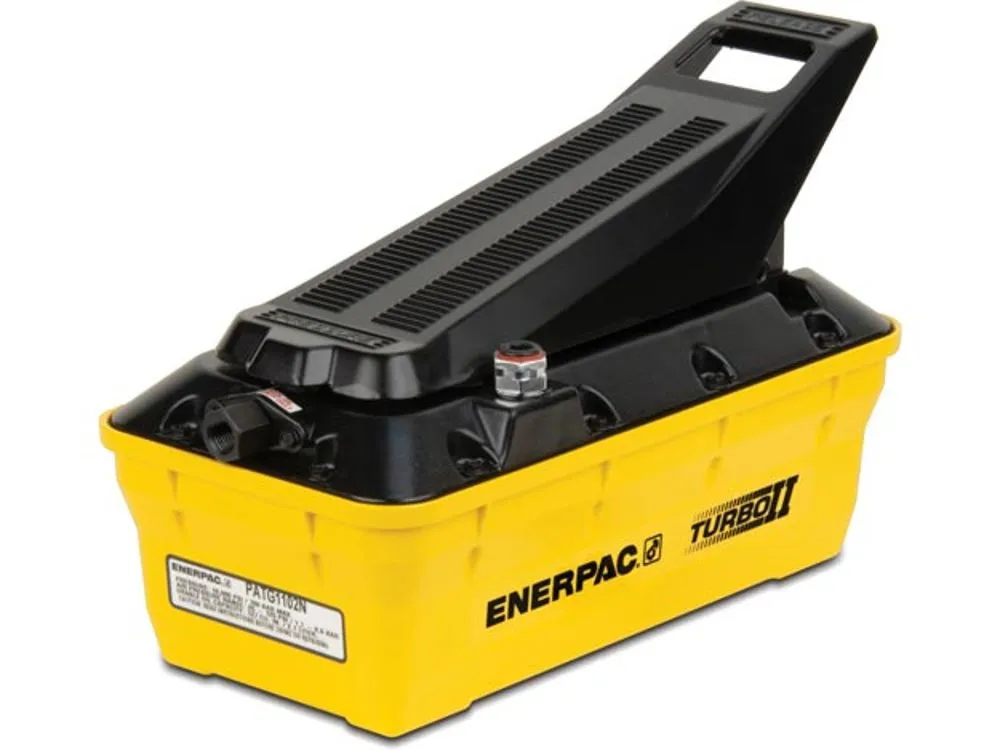

Enerpac PATG1102N Turbo II air hydraulic pump can deliver high-quality pressurising performance with minimal effort compared to hand-driven hydraulic pumps and minimal energy consumption compared to electric hydraulic pumps. It is ideal for lifting, lowering, pulling & pushing loads up to specific stroke lengths in offshore, marine, engineering, aerospace, agricultural, oil & gas, mining and food & production applications.
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 25.15 |
| Width (cm) | 40.39 |
| HS Code | 8413500080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 7.5825 |
This hydraulic pump's reservoir features an internal pressure relief valve for protecting the unit in case of over-pressurising.
This hydraulic pump is equipped with a return-to-tank port for use in remote valve applications.
This pump features an air-saver piston with a rugged one-piece design to decrease air consumption, a heavy-duty reservoir & a high-efficiency cast aluminium air motor to increase the operating life & reduce air consumption.
| Style | Model | Reservoir Capacity | Actuation Type | Air Consumption | Oil Capacity | Sound Level | Overall Height | Overall Length | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PA1150 | 80 cu. in. | Foot, Hand | 9 SCFM | 36 cu. in. | 85 dBA | 8.3" | 6.8" | 11.1" | $3,075.38 | |
| B | ZA4208MX | 404 cu. in. | Foot, Hand | 20-100 SCFM | 404 cu. in. | 94 dBA to 97 dBA | 20 1/2" | 19.4" | 12 1/2" | $10,652.31 | |
| C | XA11 | 61 cu. in. | Foot | 10-35 SCFM | 61 cu. in. | 87 dBA | 6.7" | 13.8" | 11" | $2,208.30 | |
| D | PARG1102N | 127 cu. in. | Pendant | 8 SCFM | 127 cu. in. | 76 dBA | 7.9" | 9" | 6 1/2" | $3,098.55 | |
| E | PA-133 | 36 cu. in. | Foot, Hand | 9 SCFM | 36 cu. in. | 85 dBA | 5 3/5" | 14.7" | 8.3" | $1,552.42 | |
| F | PATG-1105N | 230 cu. in. | Foot, Hand | 12 SCFM | 230 cu. in. | 76 dBA | 8 1/5" | 17.2" | 7.9" | $1,988.10 |
