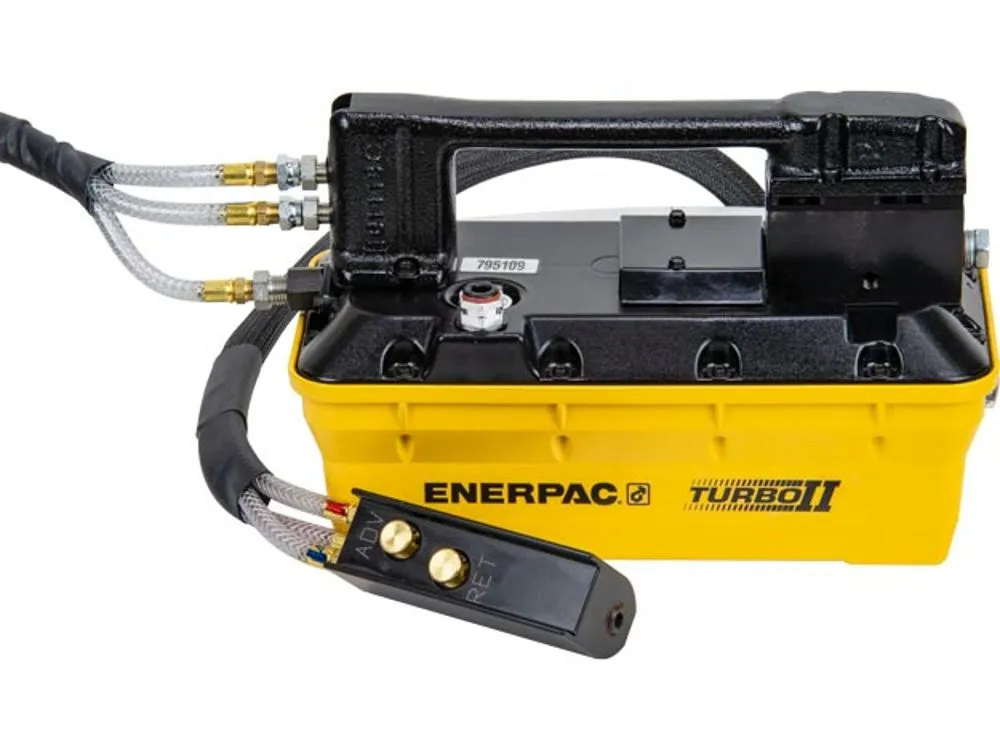

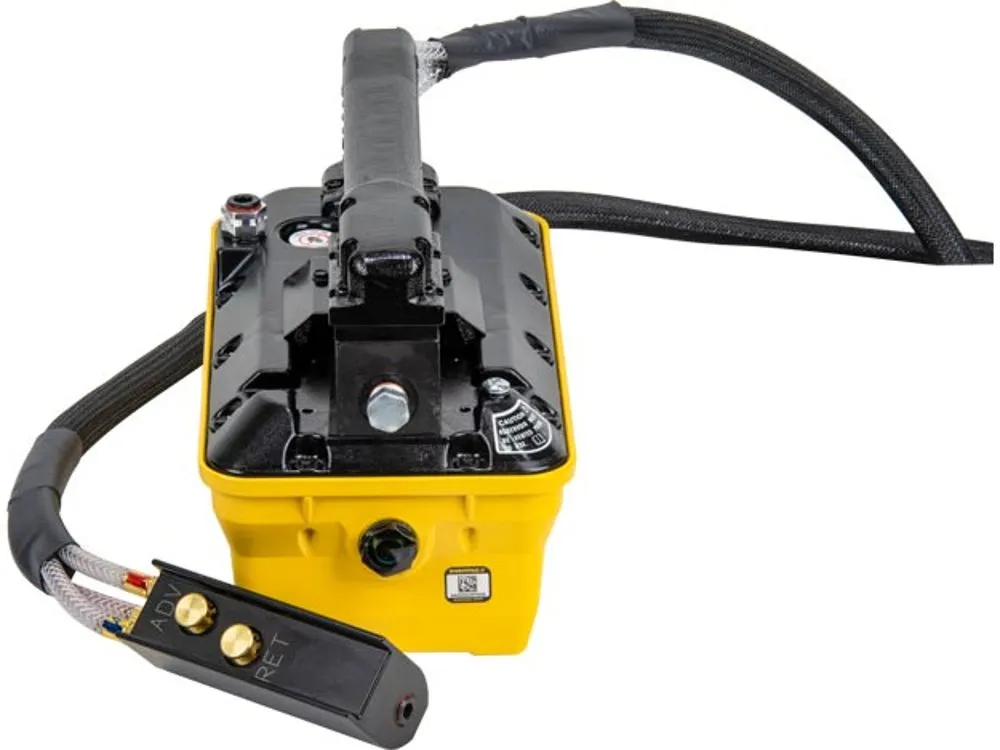

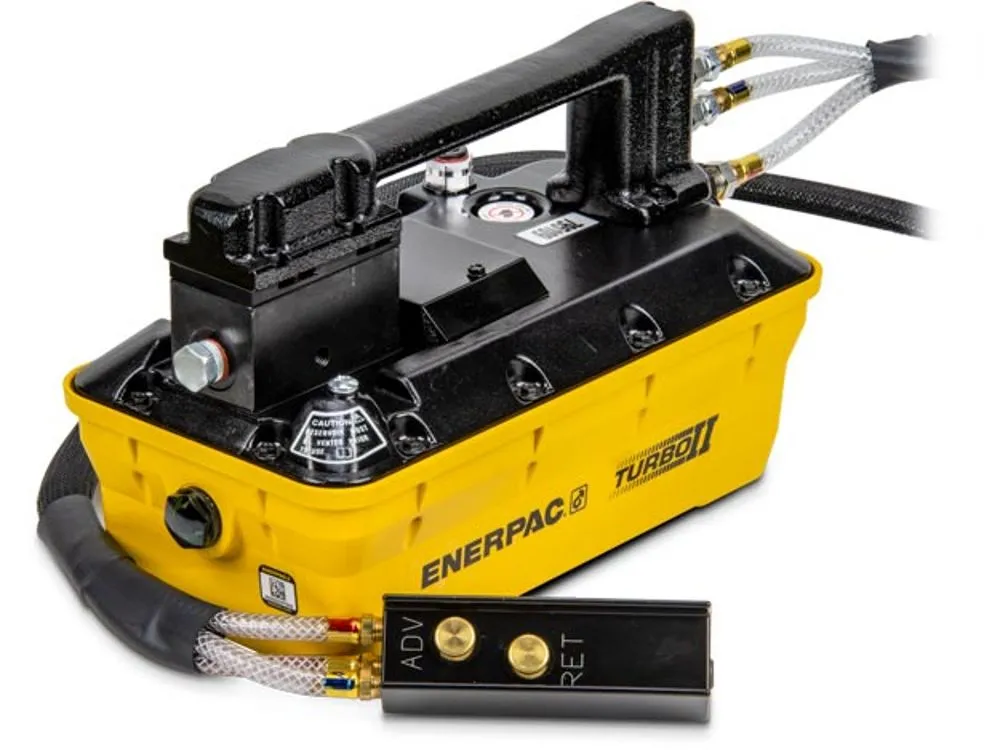

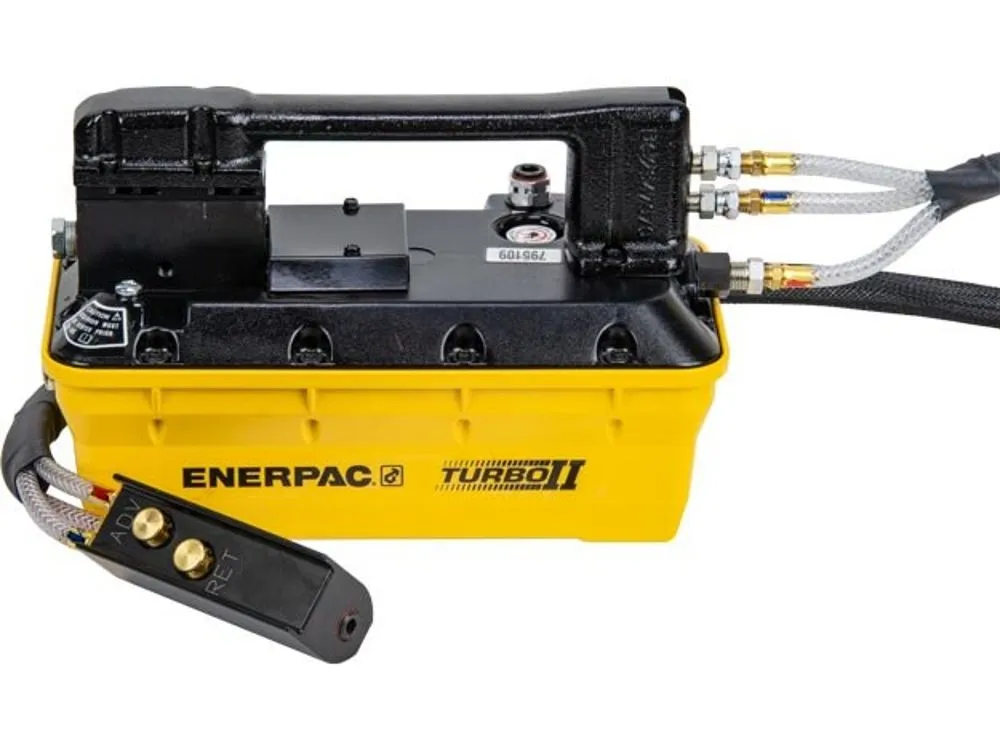

| Item | Hydraulic Pump |
|---|---|
| Actuation Type | Pendant |
| Air Consumption | 8 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Type | 3 Position, 3 Way |
| Cylinder Compatibility | Single Acting |
| Dimension A | 12.33" |
| Dimension B | 6.49" |
| Dimension C | 7 22/25" |
| Dimension D | 9 1/25" |
| Dimension E | 4" |
| Dimension L | 1.65" |
| Displacement @ 10,000 Psi | 10 cu. in./min. |
| Displacement @ 5000 Psi | 12 cu. in./min. |
| Displacement @ No Load | 51 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Includes | Treadle |
|---|---|
| Length | 9" |
| Max. Air Consumption | 12 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 10 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 76 dBA |
| Media Intake Connection Size | 3/8" |
| Oil Capacity | 127 cu. in. |
| Overall Height | 7.9" |
| Overall Length | 9" |
| Overall Width | 6 1/2" |
| Power Source | Air |
| Pump Control | Pendant |
| Reservoir Capacity | 127 cu. in. |
| Sound Level | 76 dBA |
| Type | Air Powered |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 22.86 |
| HS Code | 8414200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 9.765 |
| Style | Model | Reservoir Capacity | Actuation Type | Air Consumption | Oil Capacity | Sound Level | Overall Height | Overall Length | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PA1150 | 80 cu. in. | Foot, Hand | 9 SCFM | 36 cu. in. | 85 dBA | 8.3" | 6.8" | 11.1" | $3,075.38 | |
| B | ZA4208MX | 404 cu. in. | Foot, Hand | 20-100 SCFM | 404 cu. in. | 94 dBA to 97 dBA | 20 1/2" | 19.4" | 12 1/2" | $10,652.31 | |
| C | PATG-1102N | 127 cu. in. | Foot, Hand | 12 SCFM | 127 cu. in. | 76 dBA | 8" | 13.6" | 6 1/2" | $1,679.02 | |
| D | XA11 | 61 cu. in. | Foot | 10-35 SCFM | 61 cu. in. | 87 dBA | 6.7" | 13.8" | 11" | $2,208.30 | |
| E | PA-133 | 36 cu. in. | Foot, Hand | 9 SCFM | 36 cu. in. | 85 dBA | 5 3/5" | 14.7" | 8.3" | $1,552.42 | |
| F | PATG-1105N | 230 cu. in. | Foot, Hand | 12 SCFM | 230 cu. in. | 76 dBA | 8 1/5" | 17.2" | 7.9" | $1,988.10 |
