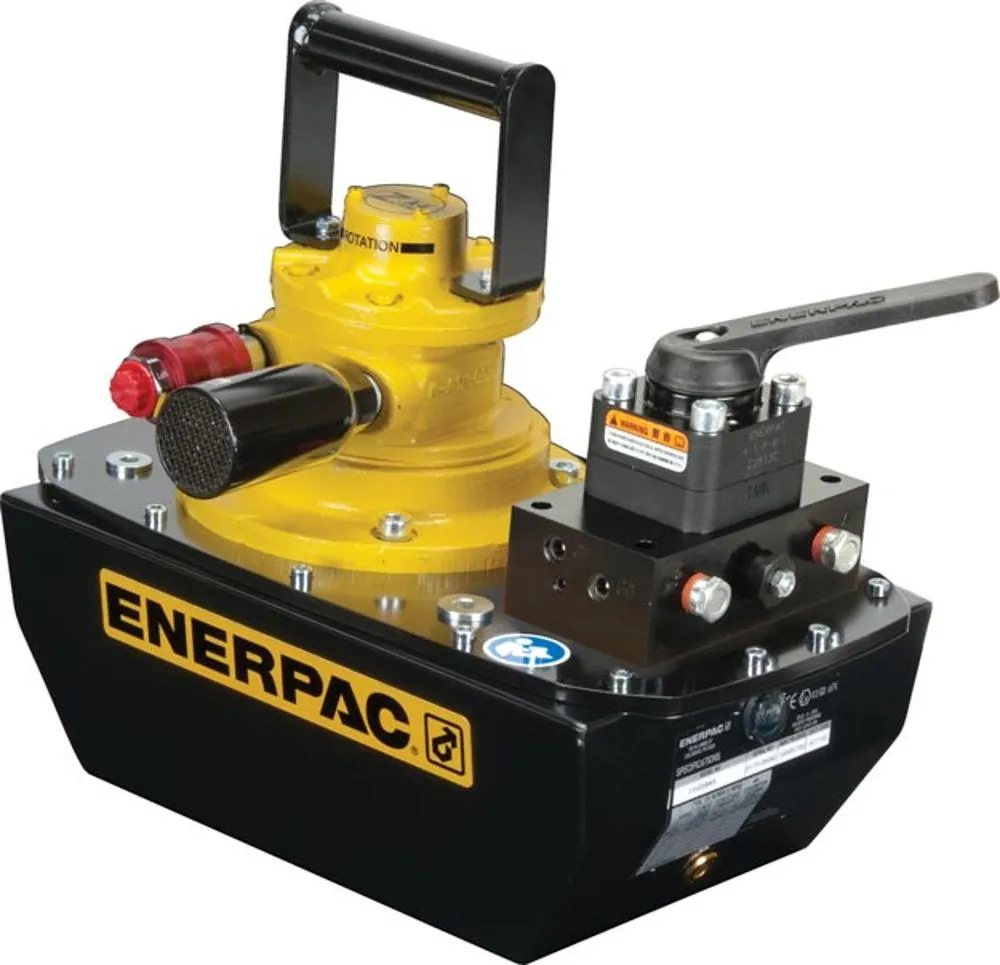

| Item | Hydraulic Pump |
|---|---|
| Actuation Type | Foot, Hand |
| Air Consumption | 20-100 SCFM |
| Air Intake Connection Size | 1/2" |
| Air Intake Connection Type | FNPT |
| Air Pressure | 60 psi to 100 psi |
| Control Valve Function | Advance, Retract |
| Control Valve Type | 2 Position, 3 Way |
| Cylinder Compatibility | Single Acting |
| Dimension A | 11 3/5" |
| Dimension B | 5 3/5" |
| Dimension C | 11" |
| Dimension E | 15 2/5" |
| Displacement @ 10,000 Psi | 80 cu. in./min. |
| Displacement @ 100 Psi | 850 cu. in./min. |
| Displacement @ 5000 Psi | 110 cu. in./min. |
| Displacement @ 700 Psi | 675 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Length | 16.3" |
|---|---|
| Max. Air Consumption | 100 SCFM |
| Max. Air Intake Pressure | 100 psi |
| Max. Flow Rate | 80 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 97 dBA |
| Media Intake Connection Size | 3/8" |
| Min. Sound Level | 94 dBA |
| Oil Capacity | 404 cu. in. |
| Overall Height | 20 1/2" |
| Overall Length | 19.4" |
| Overall Width | 12 1/2" |
| Power Source | Air |
| Reservoir Capacity | 404 cu. in. |
| Sound Level | 94 dBA to 97 dBA |
| Type | Air Powered |
| Usable Oil Capacity | 1.75 gal. |
| Valve Operation | Manual |
| Height (cm) | 76.2 |
|---|---|
| Length (cm) | 76.2 |
| Width (cm) | 60.96 |
| HS Code | 8413500080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 38.25 |
| Style | Model | Reservoir Capacity | Actuation Type | Air Consumption | Oil Capacity | Sound Level | Overall Height | Overall Length | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PA1150 | 80 cu. in. | Foot, Hand | 9 SCFM | 36 cu. in. | 85 dBA | 8.3" | 6.8" | 11.1" | $3,075.38 | |
| B | PATG-1102N | 127 cu. in. | Foot, Hand | 12 SCFM | 127 cu. in. | 76 dBA | 8" | 13.6" | 6 1/2" | $1,679.02 | |
| C | XA11 | 61 cu. in. | Foot | 10-35 SCFM | 61 cu. in. | 87 dBA | 6.7" | 13.8" | 11" | $2,208.30 | |
| D | PARG1102N | 127 cu. in. | Pendant | 8 SCFM | 127 cu. in. | 76 dBA | 7.9" | 9" | 6 1/2" | $3,098.55 | |
| E | PA-133 | 36 cu. in. | Foot, Hand | 9 SCFM | 36 cu. in. | 85 dBA | 5 3/5" | 14.7" | 8.3" | $1,552.42 | |
| F | PATG-1105N | 230 cu. in. | Foot, Hand | 12 SCFM | 230 cu. in. | 76 dBA | 8 1/5" | 17.2" | 7.9" | $1,988.10 |
