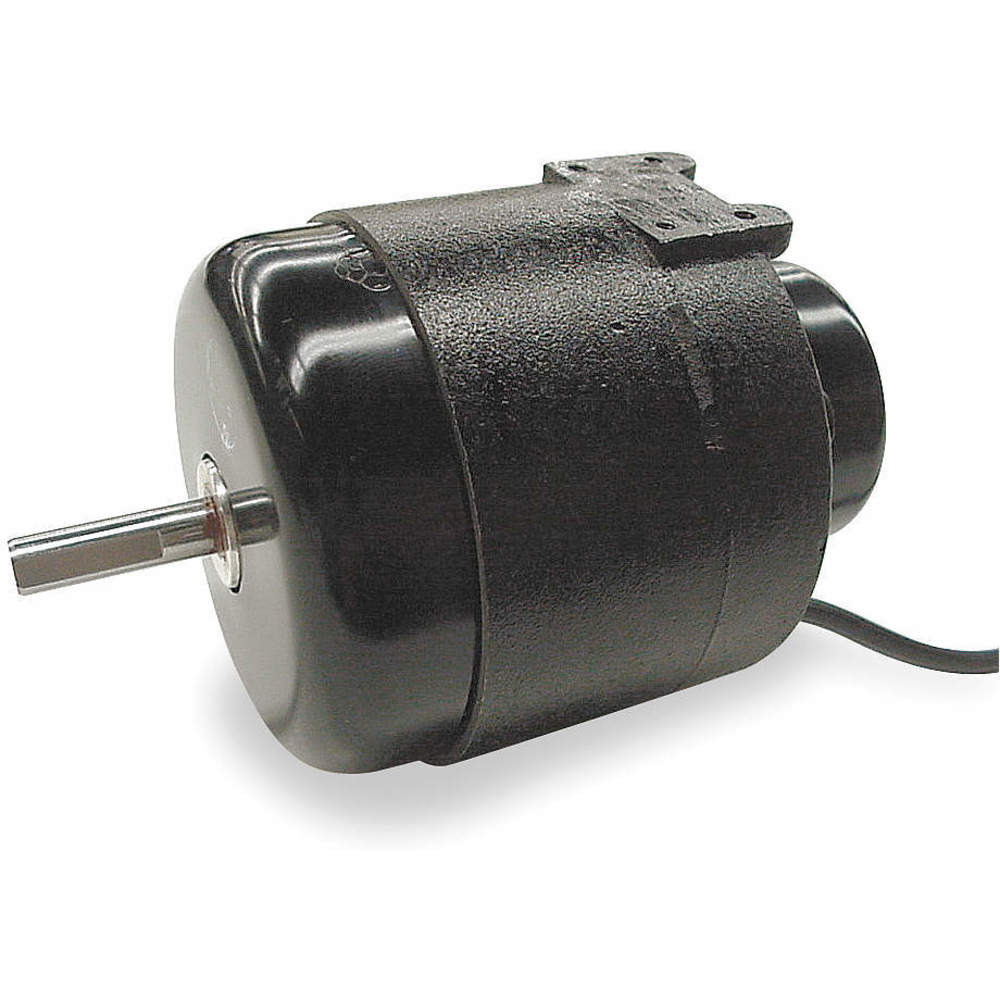

| Item | Unit Bearing Motor |
|---|---|
| Application | HVAC/R |
| Bearing Type | Unit |
| Body Dia. | 3 7/8" |
| Cord Length | 22" |
| Features | Cool Running, Quiet Operation, Thick Film Lubricating System For Long Life And Dependability |
| Frame | Non-Standard |
| Frequency | 60 Hz |
| Full Load Amps | 0.4A |
| Hp | 1/47 hp |
| Insulation Class | Class A |
| Length Less Shaft | 3 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Unit |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rear, Foot |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Type | Rear And Double Foot |
| Nameplate Rpm | 1500 RPM |
| No. Of Speeds | 1 |
| Output Wattage | 16 W |
| Overall Length | 4" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 1/2" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| standard | MEETS UL AND CANADIAN STANDARDS FOR SAFETY |
| Height (cm) | 11.43 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 10.16 |
| HS Code | 8501104020 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.8 |
| Style | Model | Hp | Nameplate Rpm | Motor Type | Output Wattage | Motor Shaft Rotation | Thermal Protection | Shaft Dia. | Motor Application | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ESP-OL50EMJR21 | 1/15 hp | 1500 RPM | Shaded Pole | 50 W | Counter Clockwise Shaft End | Automatic | 5/16" | HVAC/R | $189.96 | |
| B | ESP-L16EM1 | 1/47 hp | 1500 RPM | Shaded Pole | 16 W | Clockwise Lead End | Automatic | - | HVAC/R | $126.19 | |
| B | ESP-L25EM1 | 1/30 hp | 1500 RPM | Shaded Pole | 25 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | $151.30 | |
| B | ESP-L25EM2 | 1/30 hp | 1500 RPM | Shaded Pole | 25 W | Clockwise Lead End | Automatic | 1/4" | Refrigerator/Freezer | $156.89 | |
| B | ESP-L35EM1 | 1/20 hp | 1500 RPM | Shaded Pole | 35 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | $159.16 | |
| B | ESP-L35EM2 | 1/20 hp | 1500 RPM | Shaded Pole | 35 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | $161.71 | |
| C | ESP-OL50EM1 | 1/15 hp | 1500 RPM | Shaded Pole | 50 W | Clockwise Lead End | Automatic | 3/8" | HVAC/R | $165.36 |
