| Item | Vacuum Pump |
|---|---|
| Amps | 0.5/7.5A |
| Application | Die Casting, For Vacuum Packaging, Ling, Material H, Vacuum Chucking, Vacuum Thermoforming |
| Ballast | Gas |
| Current Rating | 14-15/7-7.5a |
| Displacement | 13 CFM |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed |
| Filter | Fine Mesh |
| Filter Type | Fine Mesh |
| Finish | Paint |
| Fluid Compatibility | Oil |
| Free Air Displacement | 15.6 CFM |
| Frequency | 50/60 Hz |
| Hp | 1.5 hp |
| Includes | Filter, Oil, Oil Separator, Vacuum Non Return Valve |
| Inlet Size | 1/2" |
| Inlet Type | NPT |
| Max. Dba | 64 dBA |
| Maximum Discharge Pressure | 2 mbar |
| Maximum Operating Pressure | 29.86 in. hg |
|---|---|
| Maximum Operating Temperature | 40°C |
| Maximum Speed | 3420 RPM |
| Maximum Vacuum | 2 mbar |
| Minimum Operating Temperature | 12°C |
| Motor Type | Tefc Continuous Duty |
| Npt Inlet | 1/2" |
| Oil Capacity | 12.8 oz. |
| Outlet Type | FBSP |
| Output Power | 1 1/2 hp |
| Overall Height | 7.06" |
| Overall Length | 16.12" |
| Overall Width | 9.31" |
| Phase | 1 |
| Runs Dry | No |
| Sound Level | 64 dBA |
| Valve Type | Gas Ballast |
| Voltage | 115/230V AC |
| Standards | EN 1012-1:2010, EN 1012-2:1996+A1:2009 |
Elmo Rietschle VCB-20 vacuum pump is an oil-lubricated rotary vane vacuum pump that provides a flow capacity of 13.0 CFM (cubic feet per minute). It is ideal for lowering the pressure inside a closed environment. This rotary vane pump is used in packaging, medical suction and pick-and-place applications.
| Height (cm) | 36.83 |
|---|---|
| Length (cm) | 68.58 |
| Width (cm) | 45.72 |
| HS Code | 8414100000 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 24.75 |
It has a maximum speed of 3420 RPM for fast and efficient vacuum generation.
It has an operating temperature range of 12 to 40 degrees C.
| Style | Model | Voltage | Hp | Phase | Displacement | Overall Height | Overall Length | Overall Width | Sound Level | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | VC-75 | 208-230/460V AC | 3 hp | 3 | 49 CFM | 10 1/2" | 27.68" | 13.12" | 64 dBA, 68 dBA | $17,398.62 | |

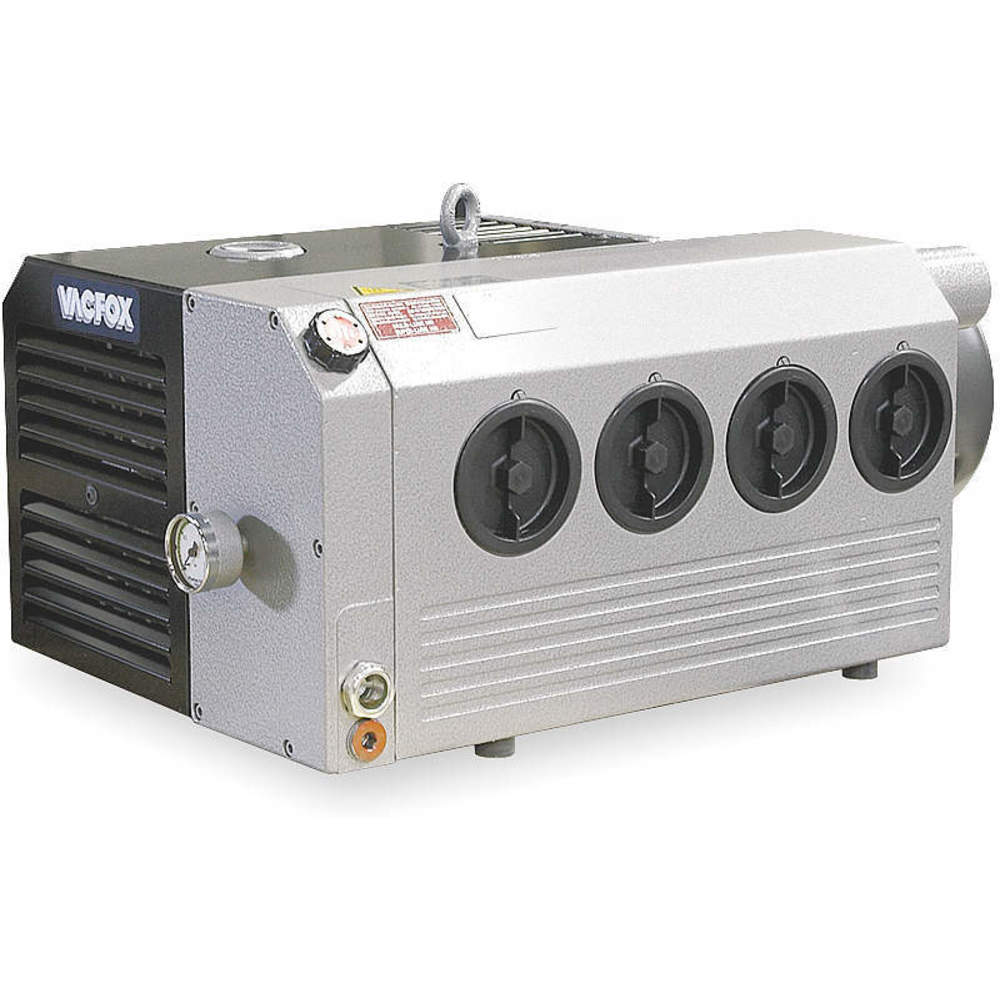

| B | VC-100 | 230/460V AC | 5 hp | 3 | 71 CFM | 11.81" | 31.62" | 16" | 66 dBA, 69 dBA | - | RFQ
|

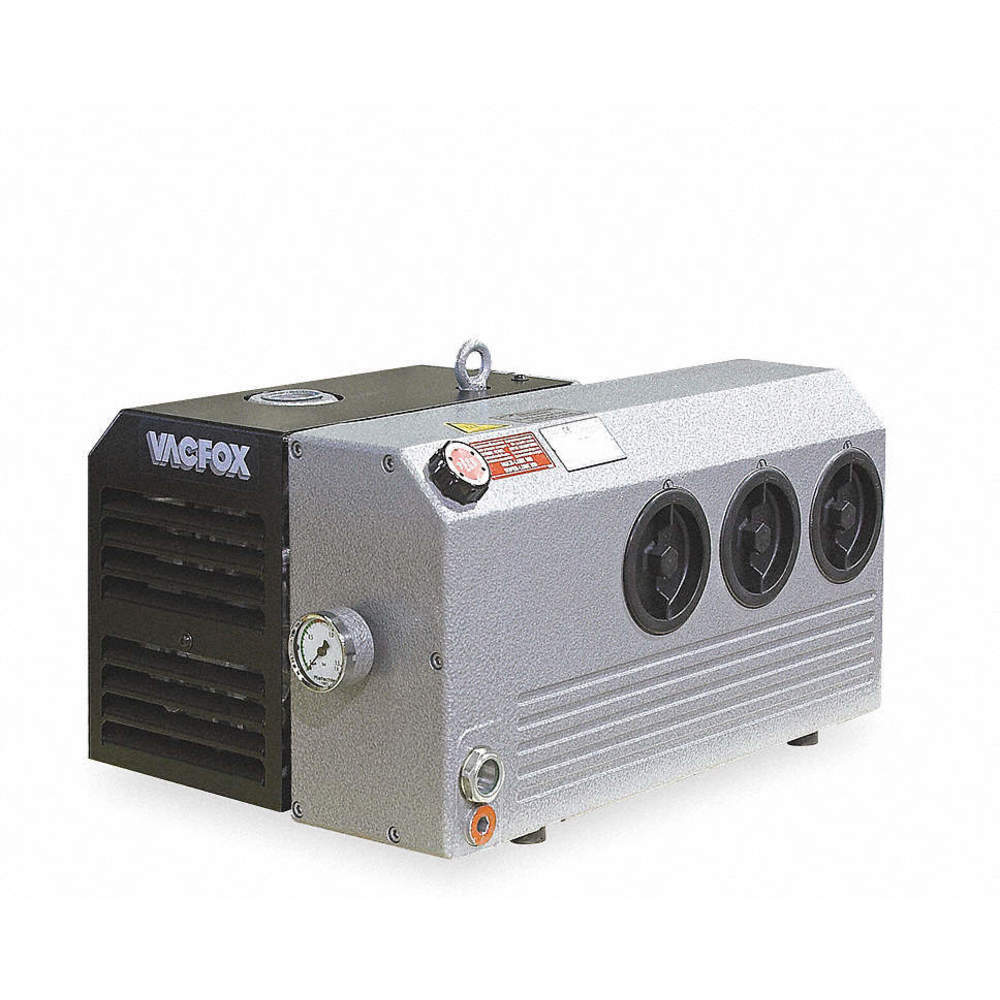

| C | VC-50 | 230/460V AC | 2 hp | 3 | 35 CFM | 10 1/2" | 24.68" | 13.12" | 64 dBA, 67 dBA | $14,313.04 |
