| Item | Plug In Circuit Breaker |
|---|---|
| Amps Rating | 200A |
| Circuit Breaker Frame Type | BJ |
| Connection | Plug-On |
| Height | 2 1/2" |
| Interrupt Rating | 10 kAIC |
| Length | 6 1/2" |
| Main Circuit Breaker | BJ |
| Mounting Type | Plug-On |
| Notes | Requires at Least A 150 A Load Center, Breaker Uses Two 1-Inch (25.4 Mm) Pole Spaces And Two 1-Inch (25.4 Mm) Pole Spaces On Right Side Of Load Center. |
|---|---|
| Number Of Poles | 2 |
| Trip Type | Common |
| Type | 1-inch Plug-on Main Breaker |
| Voltage Rating | 120/240V |
| Warranty | Limited Lifetime Residential, 1 Year Commercial |
| Width | 3 1/2" |
| Wire Size | #2 AWG to 300 kcmil |

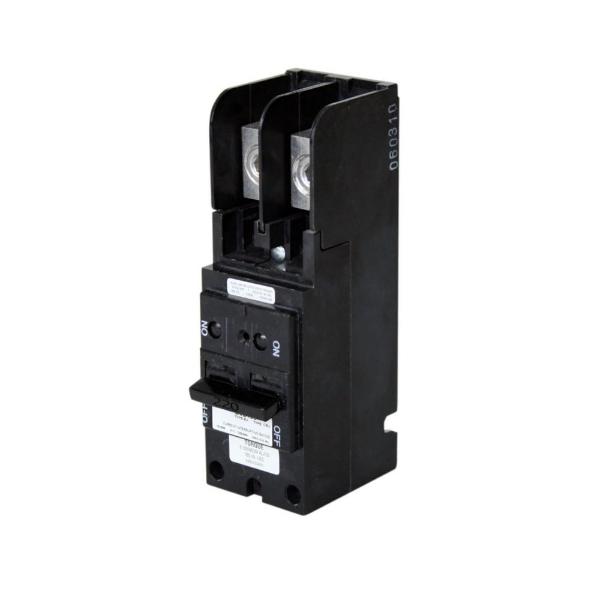

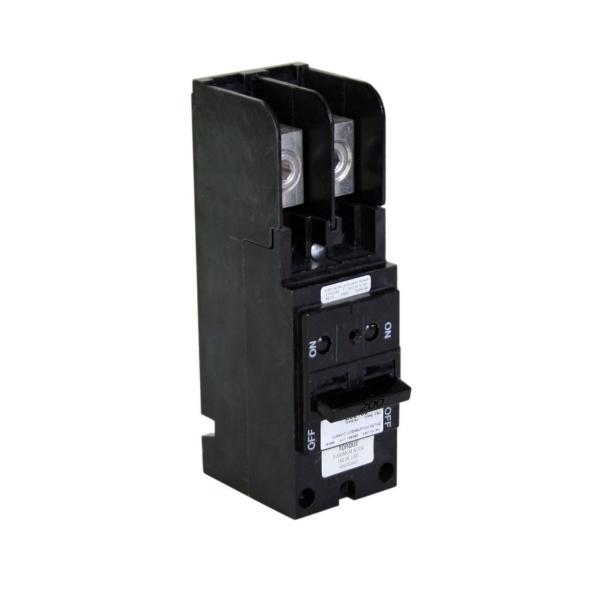

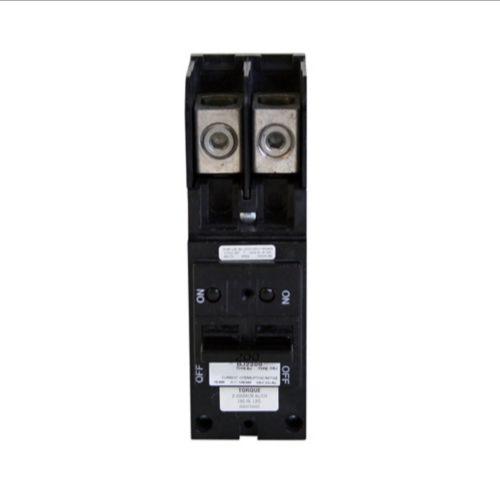

Eaton BJ2200 circuit breaker is an Eaton BJ type standard trip circuit breaker ideal for protecting branch circuits & sub-feed mains. This plug-on panelboard circuit breaker prevents overloads & short circuits in conductors & connected apparatus like motors and motor starters.
| Height (cm) | 6.35 |
|---|---|
| Length (cm) | 16.51 |
| Width (cm) | 8.89 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.81 |
Users should remember that the breaker at least requires a 150A loadcentre and four 1-inch pole spaces in total (two 1-inch on the load centre's right side).
