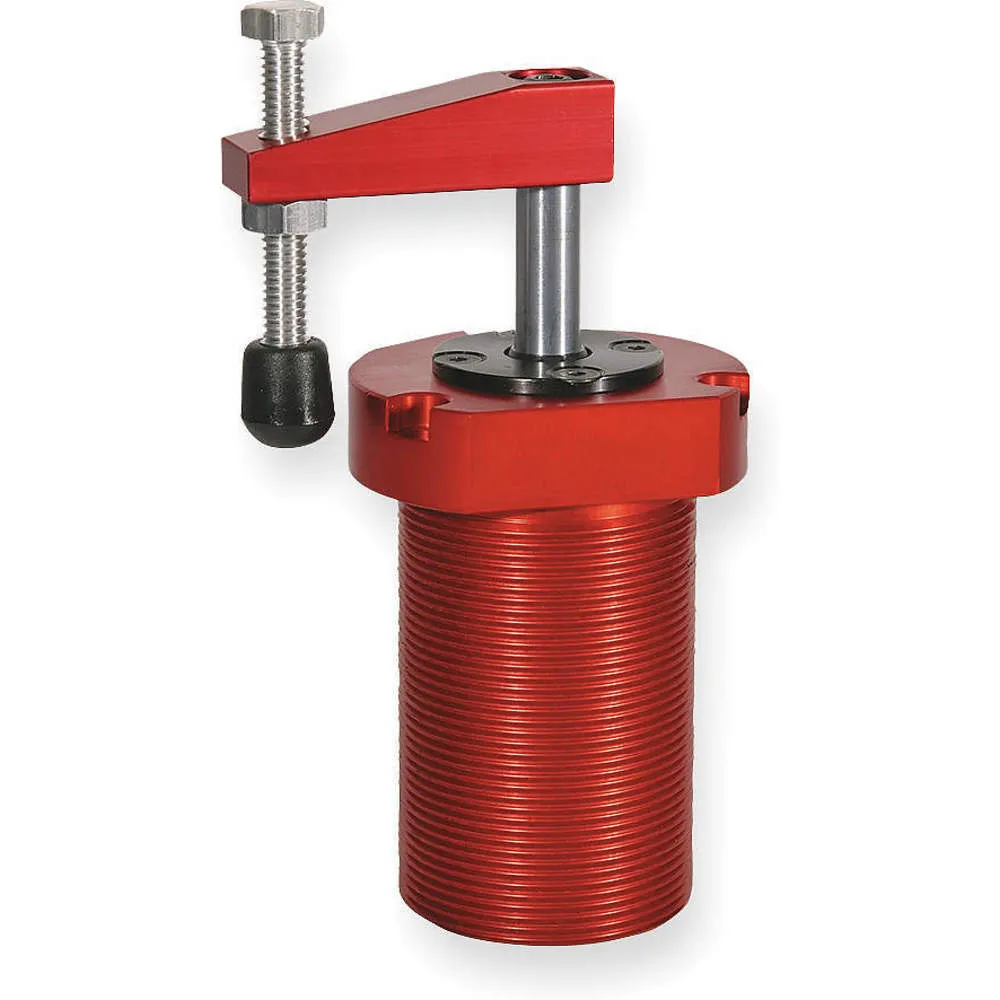

DESTACO 8216 Pneumatic Swing Clamp, Threaded Body, Left Hand Swing

Destaco 8216 pneumatic swing clamp employs a strong hydraulic clamping mechanism for quick swing-and-clamp movement to improve productivity. It is intended for quick clamping in secondary manufacturing operations on both metallic & non-metallic products. This unit offers lock angle repeatability with high accuracy, thereby making clamping on an extremely small area possible. It has a block style aluminium body that can be mounted from the sides or top. This pneumatic swing clamp has a magnetic piston ring for position sensing and is supplied with a clamping arm & spindle that offer a maximum holding capacity of 89 lb. This pneumatic clamp can work at pressure up to 130 psi and at temperatures ranging from -14 degrees Fahrenheit to 195 degrees Fahrenheit. It is equipped with a manually adjustable threaded stud at the end of an air powered pivoting arm that clamps down on the workpiece. This unit is integrated with a pneumatic cylinder having an input port for connecting to a source of compressed air. This Destaco non-locking clamp provides clamping force in direct proportion to the bore size and inlet pressure. The lightweight and robust construction allows several million cycles of operation. If you want to order these swing clamps without the clamping arm, simply add -LA at the end of the MPN. (For example, 8216-LA).

Destaco 8216 block style pneumatic swing clamp is useful for a wide variety of applications including welding, light machining and assembly. It is ideal for the automotive and food & packaging industries.

• Destaco 8216 pneumatic swing clamp features a locking tapered connection that allows 360 degree arm positioning.
• It comes with a tapered piston rod to accommodate the clamping arm.
• Destaco 8216 pneumatic swing clamp is supplied with a spindle to maximise holding force.
• This pneumatic swing clamp is sensor ready for use with round style sensors.
• If you want to order this swing clamp without the clamping arm, simply add -LA suffix to the MPN (for example, 8216-LA).

• Destaco 821512: These Destaco clamping arms are compatible with Destaco 8216 pneumatic swing clamp. They have lightweight aluminium construction for excellent structural rigidity and are equipped with a locking tapered connection that facilitates arm positioning up to 360 degrees.
• Destaco 821556: These clamping arm adapters provide a means for attaching customised clamp arms to Destaco 8216 pneumatic swing clamp. The units feature a rotatable arm that is capable of delivering free movement up to 360 degrees.
• Destaco 821553: These Destaco mounting flanges enhance the capabilities of Destaco 8216 threaded pneumatic swing clamp by allowing variable height adjustments, and are suitable for recessed mounting applications.
• Destaco 821560: These replacement seal kits are designed for unobstructed functioning of Destaco 8216 pneumatic swing clamp.

• Destaco 8216 pneumatic swing clamp meets international standards like ISO 14001:2015 & ISO 9001:2015 to ensure environmental health, utmost user safety and efficient performance of the clamp.

• Destaco 8216 pneumatic swing clamp has an imperial threaded body for mounting the unit in a tapped hole or through a clearance hole, with optional mounting screws and flange accessories.
• The through hole allows recessed mounting.
