| Item | Pneumatic Swing Clamp |
|---|---|
| Air Connection Size | #10 |
| Air Connection Type | NPT |
| Arm Height | 1.01" |
| Arm Length | 1.74" |
| Arm Material | Aluminum |
| Arm Swing Angle | 90° |
| Body Material | Aluminum |
| Body Mounting Type | Mounting Holes |
| Body Thread Length | 2.87" |
| Body Thread Size | 1 1/8"-16 |
| Clamping Force | 18 lbs. |
| Cylinder Bore | 3/4" |
| Holding Capacity | 25 lbs. |
| Includes | Spindle 305203 |
| Material | Aluminum |
| Max Air Pressure | 130 psi |
| Max Clamping Force | 18 lbf. |
|---|---|
| Max Vertical Clamp Stroke | 0.38" |
| Max. Input Air Pressure | 130 psi |
| Mounting | Threaded Body |
| Opening Angle | 90° |
| Operating Temp. | -14°F to +195°F |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -14°F |
| Overall Height | 3.9" |
| Overall Width | 1 1/4" |
| Rotating Stroke | 0.47" |
| Stroke | 0.85" |
| Stroke Length | 0.85" |
| Stroke Length During Rotation | 15/32" |
| Swing Direction | Right Hand |
| Vertical Clamp Stroke | 0.38" |

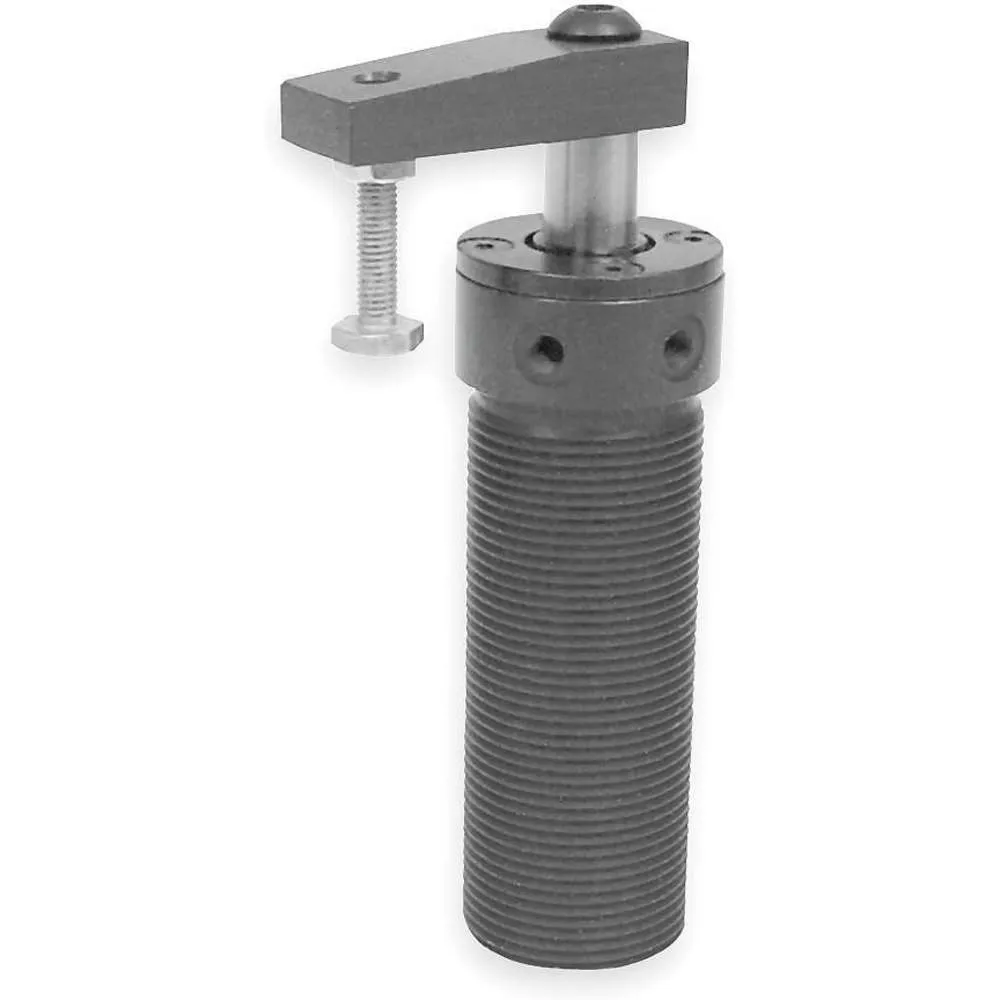

Destaco 8015 pneumatic swing clamp is ideal for holding down workpieces in metalworking facilities. This clamp is designed for light duty clamping applications & features a sensor ready design for accurately sensing the piston location throughout the clamping operation. It has a threaded body for easy installation in clearance / tapped holes.
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 10.16 |
| Width (cm) | 12.7 |
| HS Code | 8205700090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.216 |
Yes, you can choose Destaco 8416 left hand swing clamp, in addition to this right hand swing variant.
