| Item | Latch Clamp |
|---|---|
| Arm | U Shaped |
| Base Mounting Centers | 1.25" x 1.44" |
| Base Mounting Style | Flange |
| Body Material | Steel |
| Diameter | 0.34" |
| Drawing Movement Without Thumb Control | 2.46" |
| Exerted Force Applied Force - Pulling | 45:1 |
| Exerted Force Applied Force - Pushing | 45:1 |
| Handle Orientation | Horizontal |
| Holding Capacity | 2000 lbs. |
| Holding Capacity - Maximum | 2000 lbf. |
| Hook Adjustment - Maximum | 1.22" |
| Hook Type | Vertical U |
|---|---|
| Includes Latch Plate | Yes |
| Includes Locking Handle | No |
| Latch Release Style | Manual Latch Release |
| Material | Steel |
| Mounting Base | Flange |
| Overall Depth | 3.39" |
| Overall Height | 3.39" |
| Overall Length | 5.77" |
| Recommended Latch Plate Manufacturer Model Number | 344101 |
| Toggle Lock Plus | No |
| Type | Vertical Latch |

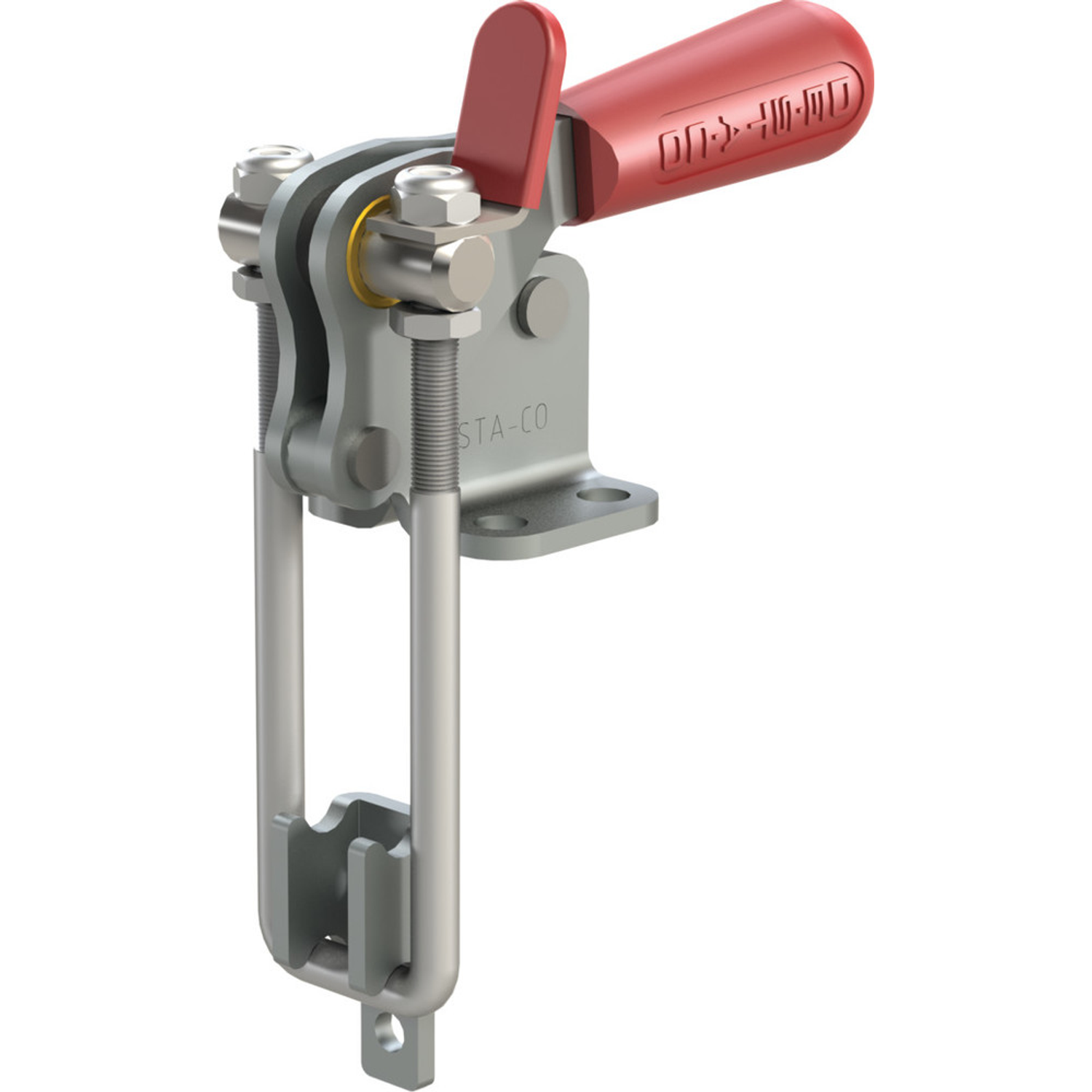

Destaco 344 pull action latch clamp features a patented thumb control lever for quick, safe and one-handed operation, to improve productivity. This U hook style latch clamp is used to repetitively open & close doors and lids during latching, moulding and assembly operations. The clamp is mounted perpendicular to the latch surface for pulling workpieces. This clamp is ideal for holding workpieces that are perpendicular to the mounting surface. This latch clamp is made of steel for providing strength and reducing breaking / bending / clamp failure under heavy loads. The clamp attains the locked position by moving the handle to place the clamping pull bar around the opposing latch and pressing it down towards the opposing surface.We also offer Destaco 334 Series pull action latch clampshaving a maximum holding capacity of 1000 lb and exerting force to applied force ratio of 31:1. If you want to order these latch clamps with longer hooks (25 / 50 / 100 mm), simply add -M-25, -M-50 or -M-100 at the end of the model number.
| Height (cm) | 29.21 |
|---|---|
| Length (cm) | 30.73 |
| Width (cm) | 22.61 |
| HS Code | 8205700090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.6885 |
Destaco supplies similar latch clamps in different hook lengths: 25 mm longer than standard length (344-M-25), 50 mm longer than standard length (344-M-50) and 100 mm longer than standard hook length . Raptor Supplies can also deliver manual clamps in variants having stainless steel construction (344-SS) for corrosion resistance under harsh environmental conditions or Destaco Toggle Lock Plus mechanism (344-R) to prevent accidental disconnection of the clamp.
Coupling greases like Mobil XTC are used for rebuilding or maintenance of Destaco clamps.
The holding capacity indicates the maximum external force that a clamp in a locked position can resist safely, without getting deformed permanently.
No, Destaco clamps cannot be used for hoisting or lifting applications.
These pull action latch clamps depend mainly on 3 components - a base for attaching the clamp to the surface, a handle for operating the tool, and a clamping arm for contact point between the work item & clamp. The handle is moved for creating force perpendicular to the base and squeeze-holding the work items when the linkage system / hook of the clamp is put in the over-centre position.
Destaco clamps feature steel or stainless steel construction and are available in flange & narrow flange base mounting styles for easy installation. They are offered in varying holding capacities, indicating the maximum external force that a clamp can resist safely (in locked position), without getting deformed permanently. Also, one should calculate the distance between the clamping plate and workpiece in its farthest position, before choosing a latch clamp.
The red coloured handles indicate a recognisable area for the user to grab onto when operating the clamp.
