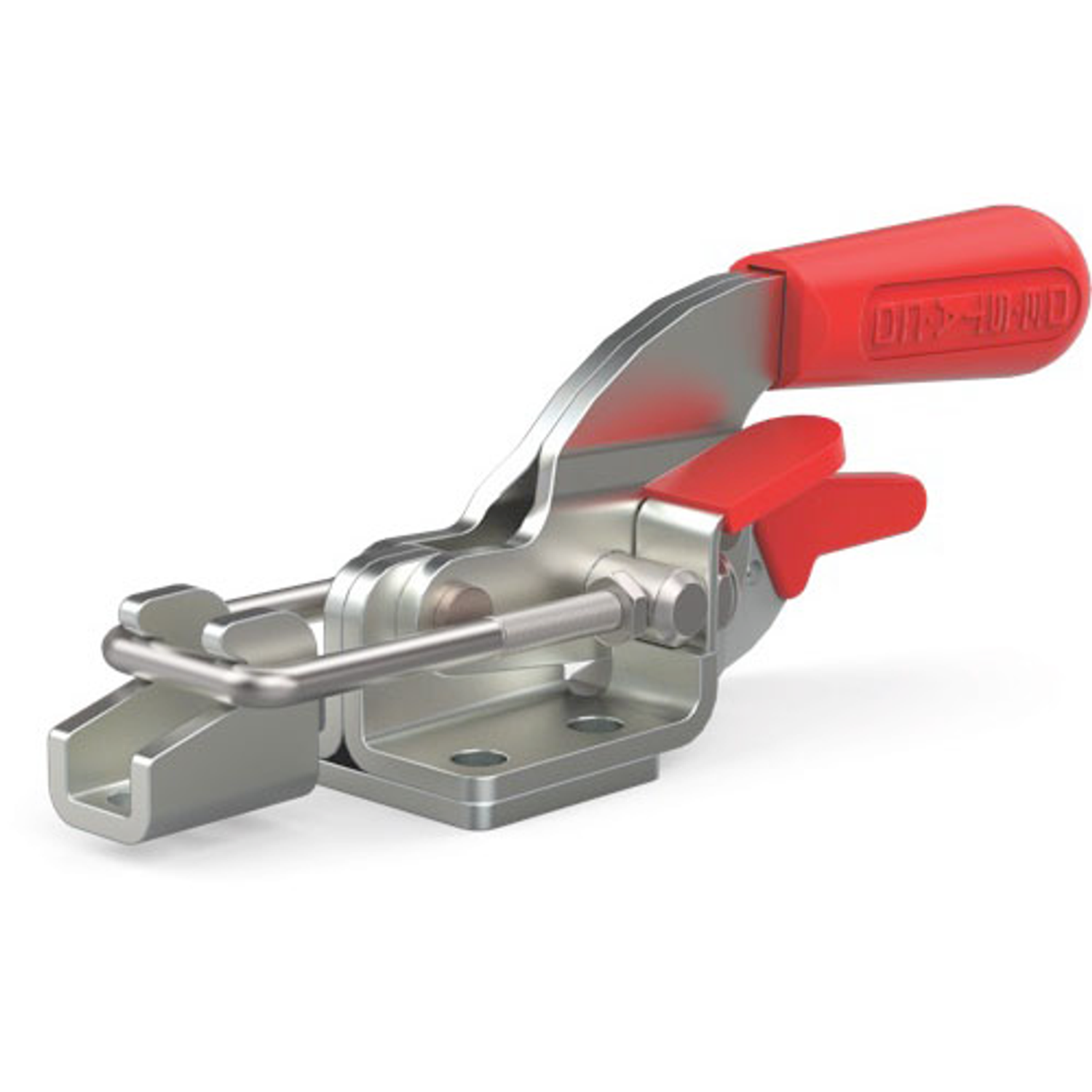

DESTACO 331-RSS Pull Action Latch Clamp, U Hook, Toggle Lock Plus, 720 lb

Pull action latch clamps feature a handle to place & press down the clamping pull bar or hook around the opposing latch and provide a strong closing force to repetitively close & open doors and lids for latching, moulding and assembly operations. These clamps offer a powerful closing force for positive holding and thumb control lever for convenient single handed operation. These clamps are generally available in 3 major styles that are fixed latch, U-hook (horizontal and vertical) and J-hook type clamps. Destaco 331 Series clampsare mounted parallel to the latch surface for pulling workpieces. Destaco 331-RSS clamp is integrated with Toogle Lock Plus mechanism to prevent accidental disconnection of the clamp. This horizontal U-Hook style latch clamp has stainless steel construction for providing corrosion resistance under harsh environments and minimising damage / wear due to abrasive conditions. Raptor Supplies offers these 331 Series clamps in variants having steel construction for structural strength. It is also offered in variants without Toggle Lock Plus mechanism for reducing operating costs. You can order these latch clamps with longer hooks (25, 50 & 100 mm), by simply adding -M-25, -M-50 or -M-100 at the end of the model number.
We also offer Destaco 334 Seriespull action latch clamps having a vertical U-hook, providing a maximum holding capacity of 1000 lb.

Destaco 331-RSS latch clamp is ideal for holding moulds and various assembly operations in the aerospace, automotive & food and packaging industries. This clamp can also be used for closing chamber doors, lids, access covers, drums, containers and vessels.

• Destaco 331-RSS pull action latch clamp is integrated with Toggle Lock Plus mechanism to prevent accidental opening of clamp.
• This clamp is made of stainless steel to provide corrosion resistance & durability and withstand highly abrasive environments / industrial conditions.
• It is equipped with a threaded U hook (horizontal) pull bar for easy adjustment of the latch & workpiece.
• This clamp has flanged base mounting style for easy mounting on any surface, providing a maximum holding capacity of 720 lb.
• Drawing movement of the clamp without thumb control is 1.78 inches and max hook adjustment is 0.59 inches.
• This clamp has a patented thumb control lever for one handed operation of the clamp.
• The clamp provides an exerting force (pushing) to applied force (pulling) ratio of 32:1.
• It comes with a latch plate to provide support and closure to the U hook.

• Raptor Supplies delivers Destaco 331905 latch plate for tight closure of clamp by attaching onto workpieces.
• Destaco also supplies a replacement hook assembly (331915) for replacing the Destaco 331-RSS clamp's worn out or faulty hook.
• Destaco replacement thumb control lever (330-ZB1) is used to replace the clamp's thumb control lever.

• Destaco 331-RSS clamp is designed in compliance with ISO 9001:2015 & ISO 14001:2015 standards for ensuring environmental health, user safety and superior performance of the clamps.

• The clamp has threaded holes on the base & latch plate to mount Destaco 331-RSS clamp to flat surfaces for pulling doors or lids.
