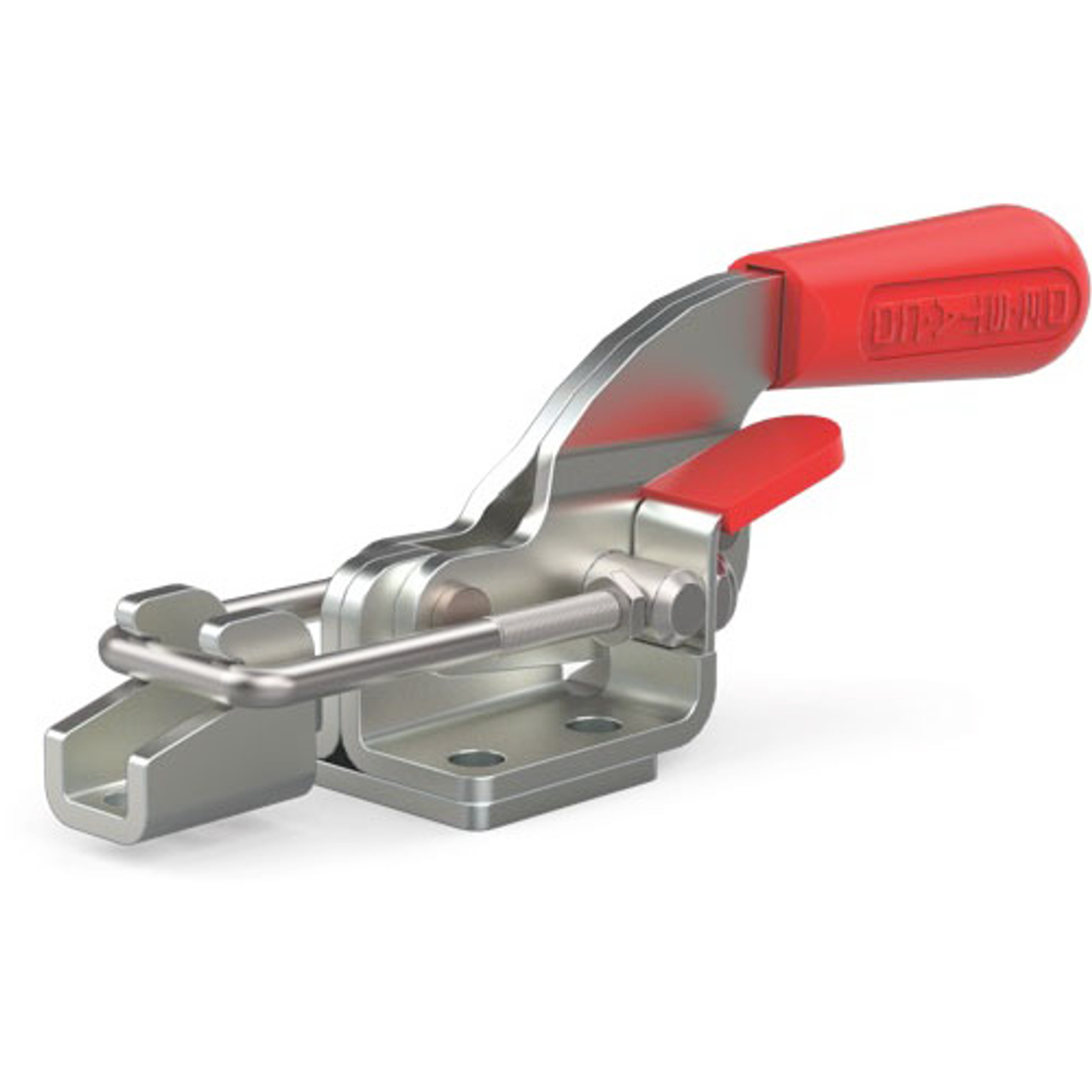

DESTACO 331-SS Pull Action Latch Clamp, U Hook, Stainless Steel, 720 lb

Pull action latch clamps are horizontal or vertical holding type devices that provide a strong closing force to repetitively close & open doors and lids for latching, moulding and assembly operations. They have handles to place the clamping pull bars or hooks around the opposing latches and press down to lock the clamp. These clamps offer a powerful closing force, providing a positive holding and convenient single-handed operation due to thumb control lever in the clamps. It is generally available in 3 major styles, namely: fixed latch type, U-hook type (horizontal and vertical) and J-hook type. Destaco 331-SS pull action latch clamp is mounted parallel to the latch surface for pulling workpieces. This horizontal U-Hook style latch clamp is made up of stainless steel for providing corrosion resistance under harsh environments and minimising damage / wear due to abrasive conditions. Destaco 331 Series clampsare also available in variants having steel construction, Destaco Toggle Lock Plus mechanism and many more. You can also order these latch clamps with the longer hooks (25, 50 & 100 mm), by simply adding -M-25, -M-50 or -M-100 at the end of the model number.

• Destaco 331-SS latch clamp is used for moulding & assembly operations in the aerospace, transportation, automotive and food & packaging industries. This clamp is also ideal for sealing chamber doors, lids, drums, containers, vessels, covers and access doors.

• Destaco 331-SS pull action latch clamp has stainless steel construction for corrosion resistance and durability to withstand highly abrasive environments / industrial conditions.
• Drawing movement of the clamp without thumb control is 1.780 inches and max hook adjustment is 0.590 inches
• This clamp is integrated with a patented thumb control lever for one-handed operation of the clamp.
• It has flanged base mounting style for easy mounting on any surface and a maximum holding capacity of 720 lb.
• This clamp is equipped with a threaded U-hook (horizontal) pull bar for easy adjustment.
• The clamp ratio of exerting force (pushing) to applied force (pulling) is 32:1.
• It comes with a latch plate to provide support and closure to the U-hook.

• Destaco 330-ZB1 replacement thumb control lever replaces the patented thumb control lever of the Destaco 331-SS clamp.
• Destaco 331905 replacement latch plate is used for a tight closure of clamp on pressing the handle.
• Raptor Supplies can deliver Destaco replacement hook assembly (331915) for replacing the clamp's worn out or faulty hook.

• Destaco 331-SS clamp is ISO 9001:2015 & ISO 14001:2015 certified for ensuring environmental health, user safety and superior performance of the clamps.

• Destaco 331-SS pull action latch clamp has a flanged base with two pairs of threaded mounting holes and a latch plate with one pair of threaded holes to allow quick and secure screwing onto flat surfaces / workpieces.
• This clamp can be easily removed and installed at a different location by simply unscrewing using a simple screwdriver.
