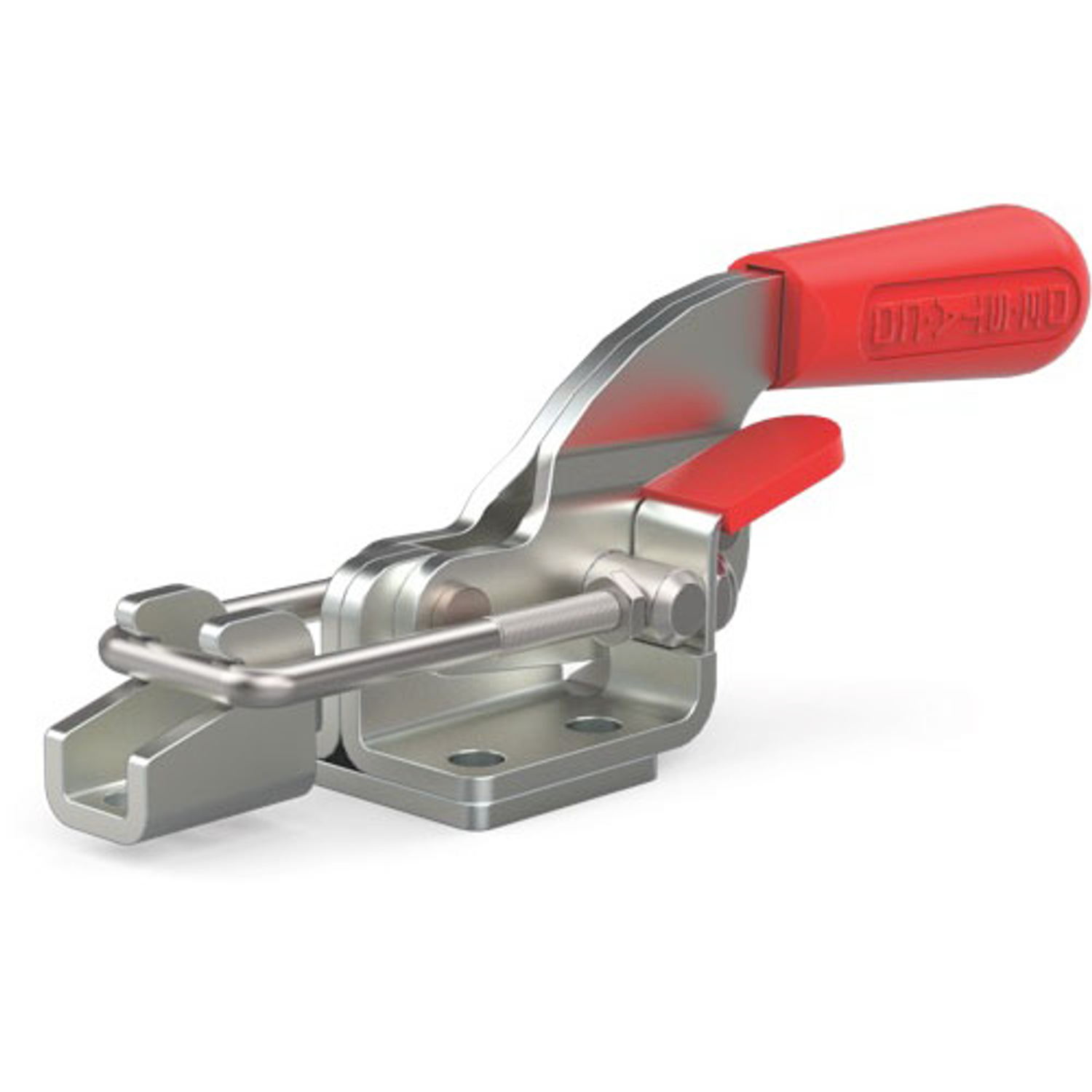

DESTACO 331-M-100 Pull Action Latch Clamp, U Hook, 700 lb, 10.53 Inch Length

Pull action latch clamps are ideal for opening & closing doors or lids repetitively during latching, moulding and assembly operations. They are generally available in fixed latch, U hook (horizontal and vertical) and J-hook styles. These clamps feature a handle to place & press down the clamping pull bar or hook around an opposing latch for holding a workpiece. The clamp handles are equipped with a thumb control lever for convenient one handed operation. Destaco 331 Series clampsare mounted parallel to the latch surface and have a horizontal U hook for pulling workpieces. They have a flanged base for installation on flat, horizontal surfaces. Destaco 331-M-100 latch clamp has steel construction for strength and resistance against bending / breaking due to rough usage. It has a 100 mm longer U hook for pulling workpieces at a greater distance than standard length, U hook style clamps. Raptor Supplies offers this clamp in variants having stainless steel construction for corrosion resistance; Toggle Lock Plus mechanism for acting as a secondary locking feature in the clamp. You can order these latch clamps with different hook lengths (standard length, 25mm longer than standard length & 50 mm longer than standard length) by simply removing -M-100 or adding -M-25 & -M-50 at the end of the model number.
We also offer Destaco 323-M-100pull action latch clamp, providing a maximum holding capacity of 360 lb.

Destaco 331-M-100 latch clamp is used for various assembly line operations and closing chamber doors, moulds, lids, access covers, drums, containers and vessels in aerospace, automotive and food & packaging industries.

• Destaco 331-M-100 pull action latch clamp has a threaded U hook (horizontal) pull bar for easy adjustment of the clamp according to workpieces.
• The U hook of this clamp is 100 mm longer than the standard hook length for easy placement over a latch plate.
• This clamp is made of steel for structural rigidity to prevent wear & tear due to heavy duty usage.
• It has flanged base for quick installation on horizontal surfaces.
• The clamp has a maximum holding capacity of 720 lb.
• It has an ergonomic handle with a thumb control lever for single handed operation.
• This clamp comes with a latch plate for support to the U hook when pulling the workpieces.

• Raptor Supplies delivers Destaco 331005 latch plate for tight closure of Destaco 331-M-100 clamp when attached to a workpiece.
• Destaco supplies a replacement thumb control lever (330-ZB1) to replace the clamp's patented thumb control lever.
• Destaco hook assembly (331215-M-100) is used for replacing the clamp's worn out or faulty hook.

• Destaco 331-M-100 clamp adheres to ISO 9001:2015 & ISO 14001:2015 standards to ensure user safety, environmental health and superior performance of the clamps.

• Destaco 331-M-100 clamp features threaded holes on its base & latch plate for mounting the clamp to flat surfaces.
