| Item | Latch Clamp |
|---|---|
| Arm Length | 1.3" |
| Bar Width (in.) | 3/4" |
| Base Mounting Style | Flange |
| Base Width | 1.1" |
| Body Material | Steel |
| Drawing Movement With Thumb Control | 1.17" |
| Drawing Movement Without Thumb Control | 1.17" |
| Exerted Force Applied Force - Pulling | 27:1 |
| Exerted Force Applied Force - Pushing | 27:1 |
| Handle Orientation | Horizontal |
| Handle Style | Straight |
| Holding Capacity | 360 lbs. |
| Holding Capacity - Maximum | 360 lbf. |
| Hook Adjustable Range | 10.7 mm |
|---|---|
| Hook Adjustment - Maximum | 0.49" |
| Hook Type | Horizontal U |
| Includes Latch Plate | Yes |
| Includes Locking Handle | Yes |
| Latch Release Style | Automatic Latch Release |
| Material | Steel |
| Mounting Base | Flange |
| Overall Depth | 1.19" |
| Overall Height | 1.19" |
| Overall Length | 3.88" |
| Recommended Latch Plate Manufacturer Model Number | 323104-M |
| Toggle Lock Plus | Yes |

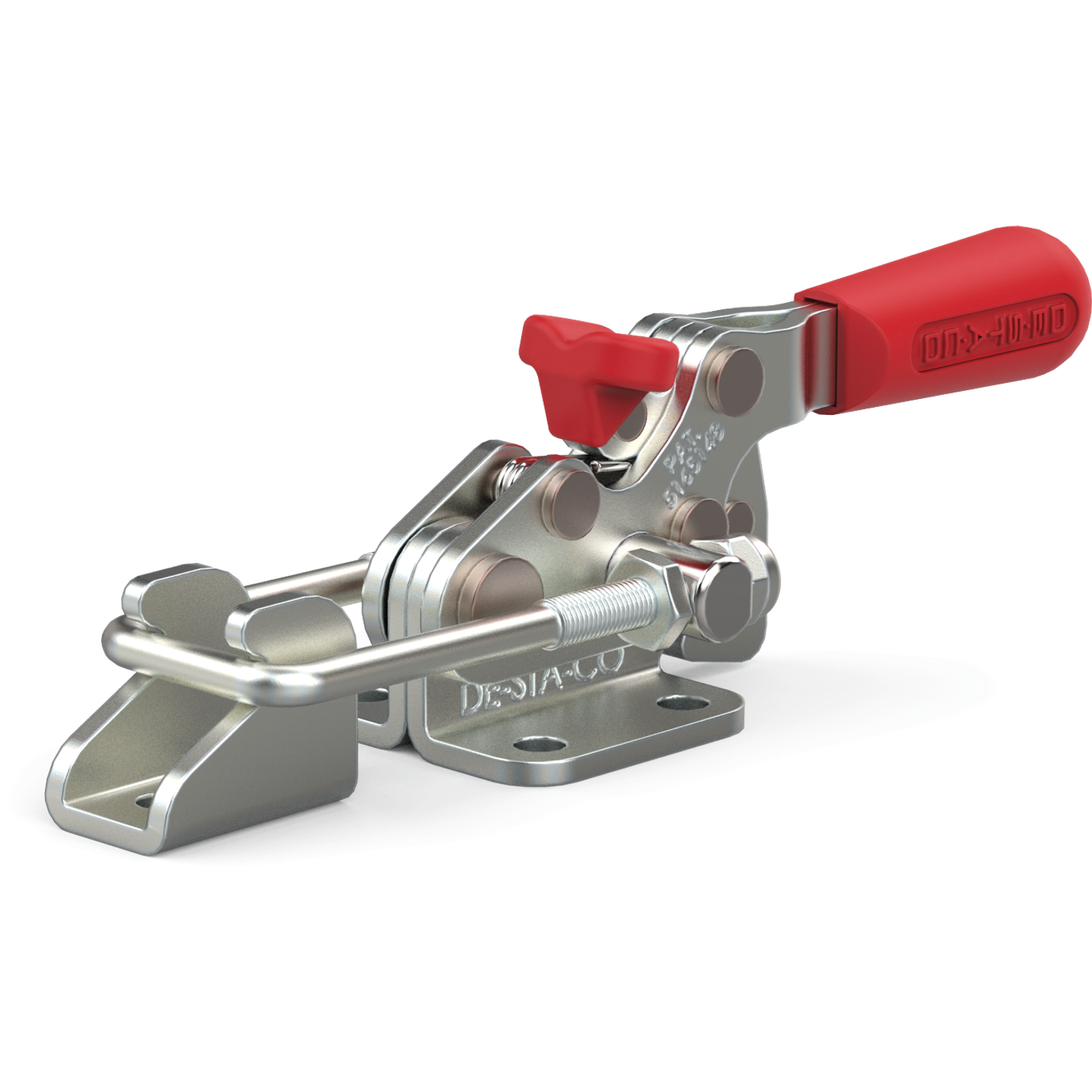

Pull action latch clamps are suitable for repetitively closing & opening the doors & lids in latching, moulding and assembly operations. These latch clamps feature handles that place a clamping pull bar or hook around the opposing latch that is horizontally or vertically oriented to the clamp base. Destaco pull action latch clamps are available in fixed latch, U-hook (horizontal and vertical) and J-hook types for pulling workpieces. Destaco 323 Series clampsare used to pull workpieces that are positioned parallel to the base. These clamps provide a powerful closing force for positive holding of the workpieces and a thumb control lever for a convenient single handed operation. Destaco 323-R clamp is integrated with Toggle Lock Plus mechanism to act as a secondary locking feature. It has a flanged base for quick & easy mounting onto flat, horizontal surfaces. This horizontal U-Hook style latch clamp has steel construction for structural integrity and preventing bending / breaking due to rough usage. Raptor Supplies offers this 323-R clamp in variants having stainless steel construction for corrosion resistance and without Toggle Lock Plus mechanism for reducing operating costs. You can order these latch clamps having longer hooks (25, 50 & 100 mm), by simply adding -M-25, -M-50 or -M-100 at the end of the model number.
| Height (cm) | 3.02 |
|---|---|
| Length (cm) | 9.86 |
| Width (cm) | 1.9 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.081 |
Destaco 323-R latch clamp is used in various applications, such as wood working and other assembly operations. This clamp is also used for closing lids, chamber doors & access covers and hold moulds in the automation, aerospace & automotive industries.
Raptor Supplies can also deliver similar clamp variants, such as 323-RSS latch clamp having stainless steel construction for corrosion resistance and durability. We also offer these manual clamps without Destaco Toggle Lock Plus mechanism (323 latch clamp) for reducing operating costs.
Destaco supplies similar latch clamps in different hook lengths of 25 mm longer than standard length (323-R-M-25), 50 mm longer than standard length (323-R-M-50) and 100 mm longer than standard hook length (323-R-M-100).
These pull action latch clamps has a handle to operate the tool, a clamping arm to act as a contact point between the work item & the clamp, and a base to attach the clamp to the surface. Once the simple linkage system of the clamp is put in the over-centre position, the handle is moved for creating a force parallel to the base to hold the work items.
Many of the Destaco manual clamps come with the Toggle Lock Plus feature to act as a secondary locking mechanism and ensure the over-centre toggle lock condition of the clamps. This mechanism is essential when fixtures of the clamp are in motion, in a vibratory environment or are inverted. It offers an extra level of safety for the user and the workpiece.
Whenever you're dealing with the brand's mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.
The holding capacity or the holding force depicts the clamp's capability to hold down an equipment or sheet metal on the assembly line or during similar manufacturing processes.
