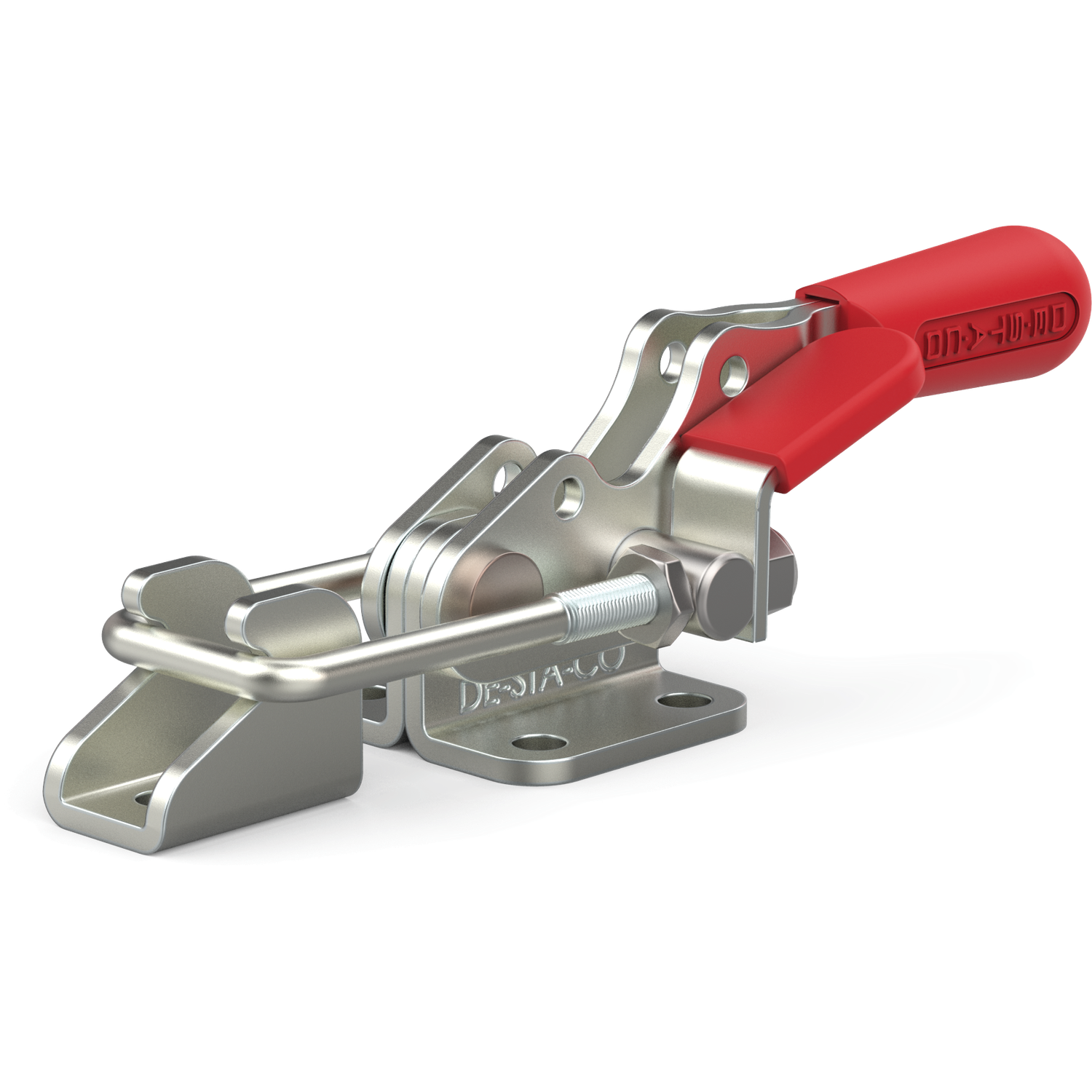

DESTACO 323 Pull Action Latch Clamp, U Hook, Steel, Flange Base, 360 lb

Pull action latch clamps are horizontal or vertical holding devices suitable for repetitively closing & opening doors & lids in latching, moulding and assembly operations. Handles of these latch clamps are used to place a clamping pull bar or hook around the opposing latch that is attached to a workpiece. Destaco pull action latch clamps are available in fixed latch, U-hook (horizontal and vertical) and J-hook types. Destaco 323 Series clampsare used to pull workpieces that are parallel to the base. These clamps offer a powerful closing force for positive holding of workpieces and a thumb control lever for convenient single handed operation. Destaco 323 clamp features a flanged base for quick & easy mounting onto flat, horizontal surfaces. This horizontal U-Hook style latch clamp has steel construction for structural rigidity and preventing bending / breaking due to heavy duty usage. Raptor Supplies offers this clamps in variants having stainless steel construction for corrosion resistance; Toggle Lock Plus mechanism for preventing accidental opening of the clamp. You can order these latch clamps with longer hooks (25, 50 & 100 mm), by simply adding -M-25, -M-50 or -M-100 at the end of the model number.
We also offer Destaco 324 Seriespull action latch clamps having vertical U hook for holding workpieces perpendicular to the base, providing a maximum holding capacity of 500 lb.

Destaco 323 latch clamp is used to hold & close moulds, chamber doors, lids, access and covers in consumer goods, aerospace & automotive and food & packaging industries.

• Destaco 323 pull action latch clamp has steel construction for structural integrity, providing a maximum load capacity of 360 lb.
• This clamp has a flanged base for quick & easy mounting on horizontal surfaces.
• It is equipped with a threaded U hook (horizontal) pull bar for easy adjustment of workpieces.
• The clamp comes with a patented thumb control lever and latch plate (323104-M) for one-handed operation.
• The clamp provides an exerting force (pushing) to applied force (pulling) ratio of 27:1.
• Drawing movement of the clamp without thumb control is 1.18 inches and max hook adjustment is 0.49 inches.

• Raptor Supplies delivers accessories like Destaco replacement thumb control lever (324-ZB1) for replacing Destaco 323 clamp's thumb control lever.
• Destaco hook assembly (323215) is used to replace the faulty or worn-out hook of the clamp.

• Destaco 323 clamp complies with ISO 9001:2015 & ISO 14001:2015 standards for ensuring environmental health, user safety and efficient performance of the clamps.

• Destaco 323 clamp is mounted to the surfaces using threaded holes on the base and latch plate.
• This clamp can be easily removed by unscrewing the base using a screwdriver.
