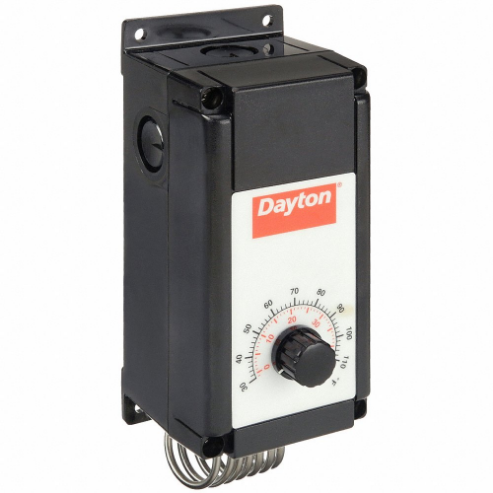

| Item | Line Volt Mechanical Tstat |
|---|---|
| Application | Heat Or Cool |
| Color | Black |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 22A |
| Depth | 3 1/2" |
| Enclosure Color | Black |
| Enclosure Material | Plastic |
| Enclosure Nema Rating | 4X |
| Full Load Amps @ 120v | 15A , 16A |
| Full Load Amps @ 240v Ac | 8A |
| Height | 7" |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 240v | 8A |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Maximum Control Temperature | 110°F |
| Maximum Operating Temperature | 140°F |
| Minimum Control Temperature | 30°F |
| Minimum Operating Temperature | -26°F |
| Number Of Cooling Stages | 1 |
|---|---|
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Operating Temperature Range | -26°F to +140°F |
| Overall Depth | 3 1/2" |
| Overall Height | 7" |
| Overall Width | 3 1/4" |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Remote Sensing Bulb Included | No |
| Remote Sensing Capability | No |
| Sensor Type | Hydraulic Air Coil |
| Switch Action | Open/Close On Rise |
| Switch Type | SPDT |
| Temp. Differential | 3°F to 12°F |
| Temperature Scale | Celsius, Fahrenheit |
| Thermostat Programmable | No |
| Thermostat Type | Line Voltage |
| Voltage | 120-240V AC |
| Width | 3 1/4" |
| standard | RAINTIGHT ENCLOSURE, UL/CUL LISTED FOR US AND CANADA |
| Height (cm) | 17.78 |
|---|---|
| Length (cm) | 8.89 |
| Width (cm) | 8.26 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 0.6075 |
| Style | Model | Application | Switch Type | Switch Action | Number Of Cooling Stages | Compatible System Type | Number Of Heating Stages | Height | Depth | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

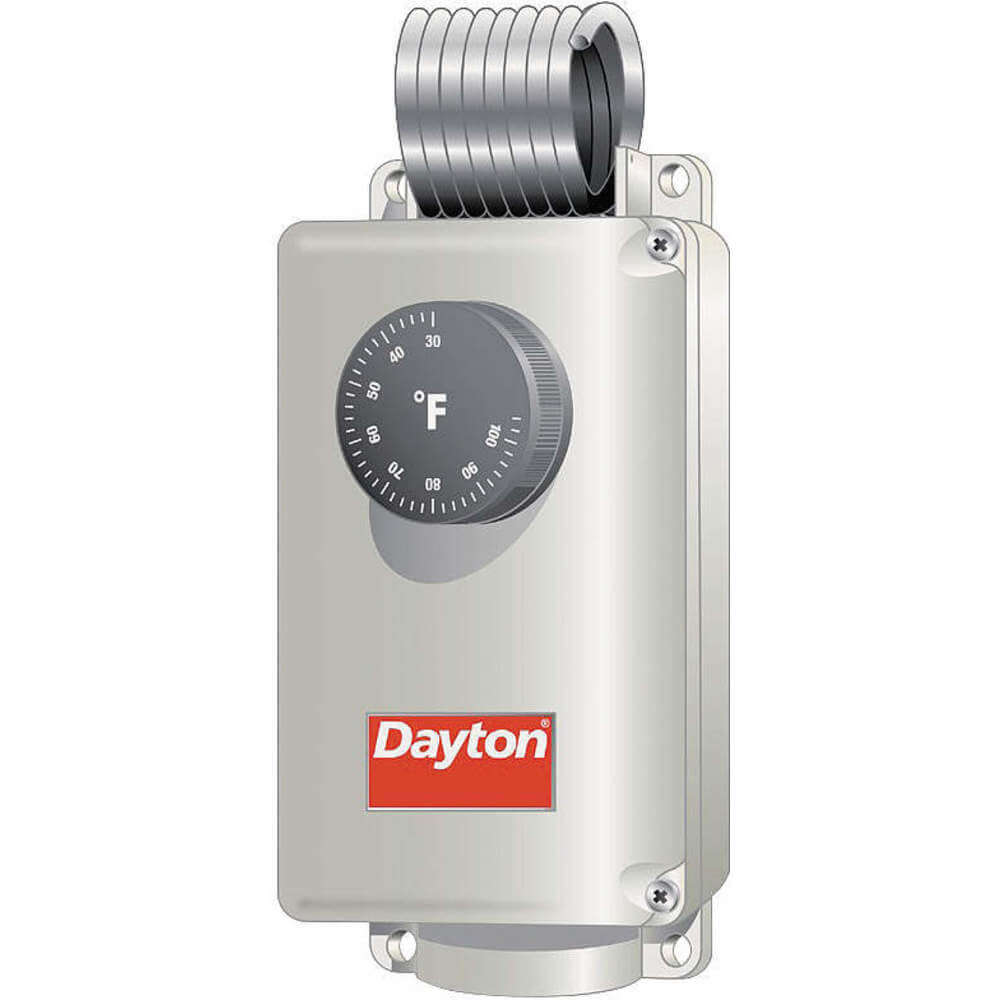

| A | 1UHH1 | Heat Or Cool | SPDT | Open/Close On Rise | 1 | Fan Coil Units | 1 | 5 3/4" | 2 1/2" | $229.03 | |

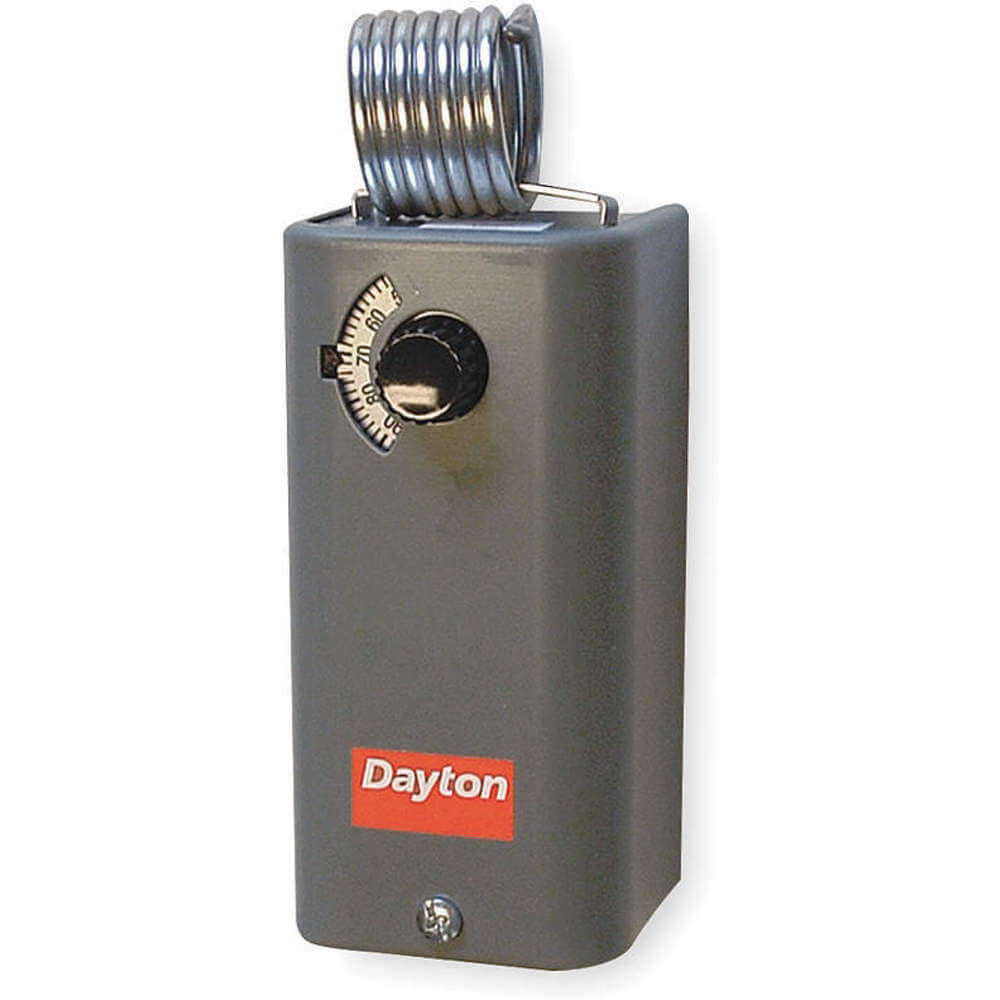

| B | 1UHH2 | Heat Or Cool | SPDT | Open/Close On Rise | 1 | Fan Coil Units | 1 | 5 3/4" | 2 1/4" | $220.97 | |
| B | 1UHH3 | Heat Or Cool | SPDT | Open/Close On Rise | 2 | Fan Coil Units | 2 | 5 3/4" | 2 1/4" | $201.79 | |
| B | 1UHH4 | Cool Only | SPST | Close On Rise | 1 | Fan Coil Units | - | 5 3/4" | 2 1/4" | $159.80 | |

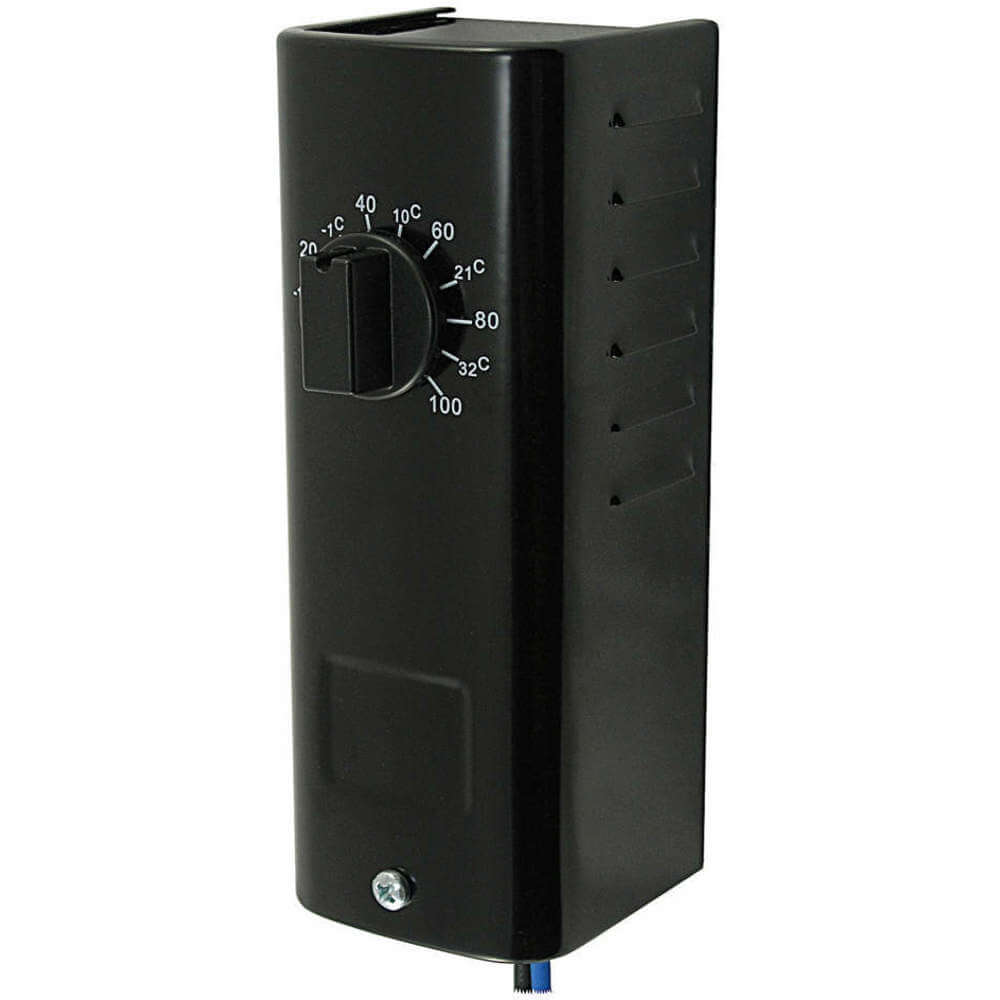

| C | 2E815 | Heat Only | SPST | Open On Rise | - | Gas Or Forced Air Furnaces | 1 | 5 1/2" | 2.63" | $79.16 | |

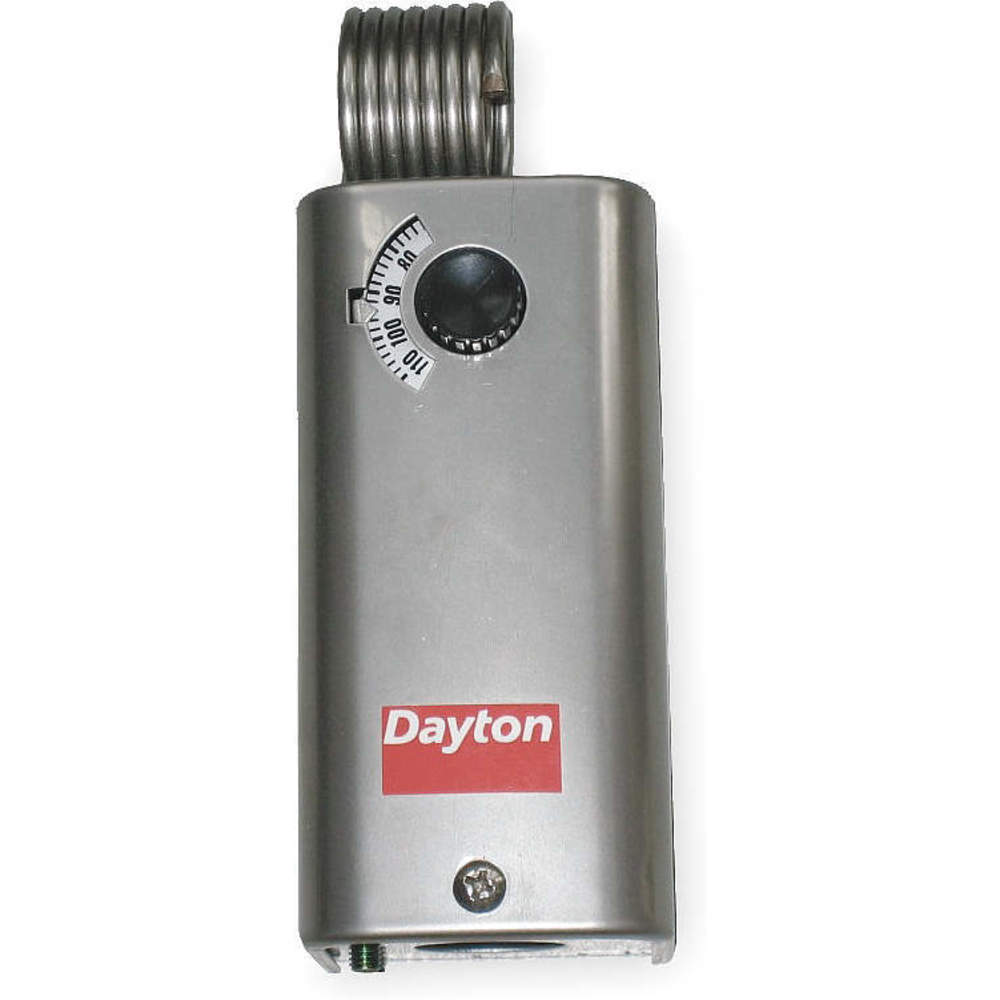

| D | 2NNR9 | Heat Or Cool | SPDT | Open/Close On Rise | 1 | Fan Coil Units | 1 | 4 1/2" | 2 1/8" | $140.93 | |
| D | 2NNT1 | Heat Or Cool | SPDT | Open/Close On Rise | 2 | Fan Coil Units | 2 | 4 1/2" | 2 1/8" | $386.31 |
