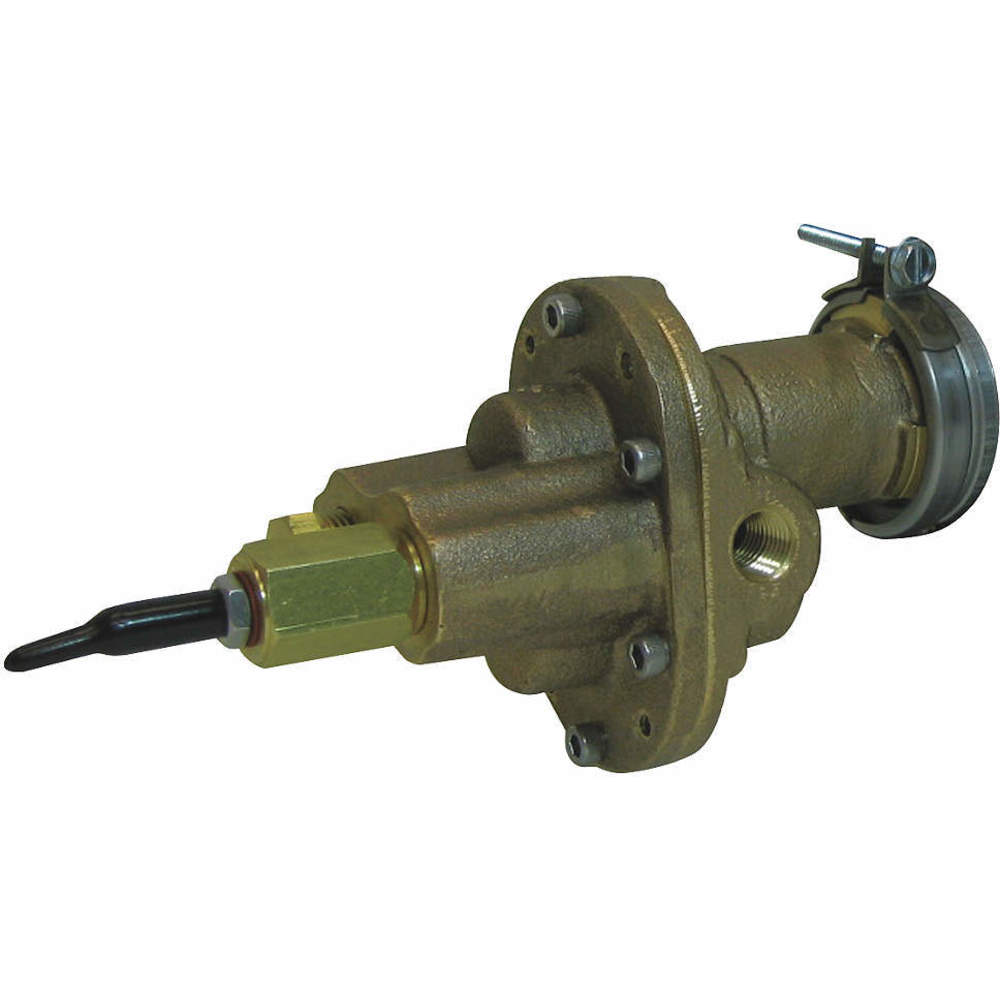

| Item | Rotary Gear Pump Head |
|---|---|
| Amps | 6.6A |
| Body Material | Bronze |
| Compatible Motor Frame | 56C |
| Connection Size | 3/8" |
| Connection Type | NPT |
| Design | Close Coupled |
| Duty Rating | Heavy |
| Flow Rate | 7 GPM |
| Flow Rate @ 100 Psi | 6.5 GPM |
| Flow Rate @ 125 Psi | 6.1 GPM |
| Flow Rate @ 25 Psi | 6.9 GPM |
| Flow Rate @ 50 Psi | 6.8 GPM |
| Flow Rate @ 75 Psi | 6.7 GPM |
| Frame Type | 56C |
| Gear Design | Spur |
| Gear Material | Fortron PPS |
| Gear Type | Spur |
| Gpm @ 100 Psi | 6.5 GPM |
| Gpm @ 125 Psi | 6.1 GPM |
| Gpm @ 125 Psi @ 1725 Rpm | 6.1 GPM |
| Gpm @ 25 Psi | 6.9 GPM |
| Gpm @ 50 Psi | 6.8 GPM |
| Gpm @ 75 Psi | 6.7 GPM |
| Gpm @ Freeflow | 7 GPM |
| Gpm @ Freeflow @ 1725 Rpm | 7 GPM |
| Grade | Grade 304 |
| Height | 5 5/8" |
| Housing Material | Bronze |
| Hp @ 100 Psi | 1 hp |
| Hp @ 125 Psi | 1 1/2 hp |
| Hp @ 125 Psi @ 1725 Rpm | 1 1/2 hp |
| Hp @ 25 Psi | 3/4 hp |
| Hp @ 50 Psi | 1 hp |
| Hp @ 75 Psi | 1 hp |
|---|---|
| Hp @ Free Flow | 3/4 hp |
| Hp @ Free Flow @ 1725 Rpm | 3/4 hp |
| Includes | Relief Valve |
| Length | 10 1/2" |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 125 psi |
| Max. Suction Lift | 7.9 ft. |
| Max. Viscosity | 550 SUS |
| Motor Hp | 1 1/2 hp |
| Motor Mounting Type | Close Coupled |
| O-ring Material | Buna N |
| Overall Height | 5 3/5" |
| Overall Length | 10 1/2" |
| Overall Width | 5 3/5" |
| Port Size | 3/8" |
| Pump Body Material | Bronze |
| Pump Material | Bronze |
| Recommended Motor Hp | 1 1/2 hp |
| Relief Valve | With |
| Required Horsepower | 1 1/2 hp |
| Seal Material | Buna N, Carbon, Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Shaft Dia. | 0.63" |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 5/8" |
| Suction Lift | 7.9 ft. |
| Suction Lift - Maximum | 7.9 ft. |
| Suction Lift @ 1725 Rpm | 7.9 ft. |
| Temp. Range | -20°F to +210°F |
| Type | Heavy Duty |
| Viscosity - Maximum | 550 SUS |
| Width | 5 5/8" |
| Height (cm) | 38.1 |
|---|---|
| Length (cm) | 27.94 |
| Width (cm) | 27.94 |
| HS Code | 8413600090 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 6.39 |
| Style | Model | Flow Rate @ 100 Psi | Temp. Range | Seal Type | Max. Suction Lift | Gear Material | Motor Hp | Port Size | Shaft Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4KHA9 | 4.4 GPM | -20°F to +210°F | Mechanical | 3.5 ft. | Fortron PPS | 1 hp | 1/4" | 1/2" | $602.12 | |
| A | 4KHC2 | 10.2 GPM | -20°F to +210°F | Mechanical | 12.3 ft. | Fortron PPS | 1 1/2 hp | 1/2" | 5/8" | $711.11 | |
| A | 4KHC4 | 23.9 GPM | -20°F to +210°F | Mechanical | 19.5 ft. | Fortron PPS | 3 hp | 1" | 0.787" | $941.66 | |
| B | 4KHC5 | 4.4 GPM | +32°F to +280°F | Mechanical | 3.5 ft. | Steel | 1 hp | 1/4" | 1/2" | $470.11 | |
| B | 4KHC6 | 6.5 GPM | +32°F to +280°F | Mechanical | 7.9 ft. | Steel | 1 1/2 hp | 3/8" | 5/8" | $520.71 | |
| B | 4KHC7 | 10.2 GPM | +32°F to +280°F | Mechanical | 12.3 ft. | Steel | 1 1/2 hp | 1/2" | 5/8" | $539.58 | |
| B | 4KHC9 | 23.9 GPM | +32°F to +280°F | Mechanical | 19.5 ft. | Steel | 3 hp | 1" | 0.787" | $672.45 |
