| Item | Centrifugal Pump |
|---|---|
| Amps | 14.4/7.2A |
| Bearing Type | Ball |
| Best Efficiency Flow | 75 GPM |
| Best Efficiency Flow Range @ Head | 60 to 98 GPM @ 45 to 20 ft. |
| Best Efficiency Flow Rate @ Head | 75 GPM @ 38 ft. |
| Best Efficiency Head | 38 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Drain Plug | Side And Bottom |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 88 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 83 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 77 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 64 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 50 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 29 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 70 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Grade | Grade 304 |
| Height | 6" |
| Housing Material | Stainless Steel |
| Hp | 1 hp |
| Hp - Pumps | 1 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Semi Open |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 15" |
| Max. Case Pressure | 200 psi |
|---|---|
| Max. Feet Of Head | 50 ft. |
| Max. Flow Rate | 88 GPM |
| Max. Flow Rate @ 10 Ft. | 88 GPM |
| Max. Flow Rate @ 140 Ft. | 83 GPM |
| Max. Flow Rate @ 15 Ft. | 83 GPM |
| Max. Flow Rate @ 20 Ft. | 77 GPM |
| Max. Flow Rate @ 25 Ft. | 70 GPM |
| Max. Flow Rate @ 30 Ft. | 64 GPM |
| Max. Flow Rate @ 40 Ft. | 50 GPM |
| Max. Flow Rate @ 50 Ft. | 29 GPM |
| Max. Flow Rate @ Head | 88 GPM @ 10 ft. |
| Max. Head | 58 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 25.1 psi |
| Max. Solid Dia. | 1/2" |
| Max. Specific Gravity | 1 |
| Maximum Flow Rate @ 140 Feet Of Head | 83 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 29 GPM |
| Min. Flow Rate @ Head | 29 GPM @ 50 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56J |
| Motor Type | Capacitor Start |
| Overall Height | 6" |
| Overall Length | 15" |
| Overall Width | 7.1" |
| Phase | 1 |
| Port Rotation | Four Position |
| Pump Housing Material | Stainless Steel |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.4 |
| Shaft Material | Stainless Steel |
| Shaft Size | 5/8" |
| Shut Off Pressure | 25 psi |
| Shut Off Pressure (maximum) | 25 psi |
| Solid Diameter (maximum) | 1/2" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Centrifugal |
| Voltage | 115/230V AC |
| Volute Material | Stainless Steel |
| Wetted Material | Carbon Ceramic, Stainless Steel, Viton |
| Wetted Materials | Carbon, Ceramic, Stainless Steel, Viton |
| Width | 7.1" |
| Standards | CULUS LISTED |
| Height (cm) | 15.24 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 18.03 |
| HS Code | 8413702005 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 18.765 |
| Style | Model | Hp | Phase | Shut Off Pressure | Motor Enclosure Design | Voltage | Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 12A075 | 7 1/2 hp | 3 | 65 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Cast Iron | 2 1/2" | 2" | $2,733.84 | |
| B | 12A076 | 7 1/2 hp | 3 | 65 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Stainless Steel | 2 1/2" | 2" | $3,959.11 | |
| A | 12A079 | 10 hp | 3 | 82 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Cast Iron | 2 1/2" | 2" | $3,656.79 | |
| B | 12A080 | 10 hp | 3 | 82 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Stainless Steel | 2 1/2" | 2" | $4,338.50 | |
| C | 2ZWN9 | 1/3 hp | 1 | 19 psi | Open Dripproof | 115/230V AC | Cast Iron | 1" | 3/4" | $575.45 | |

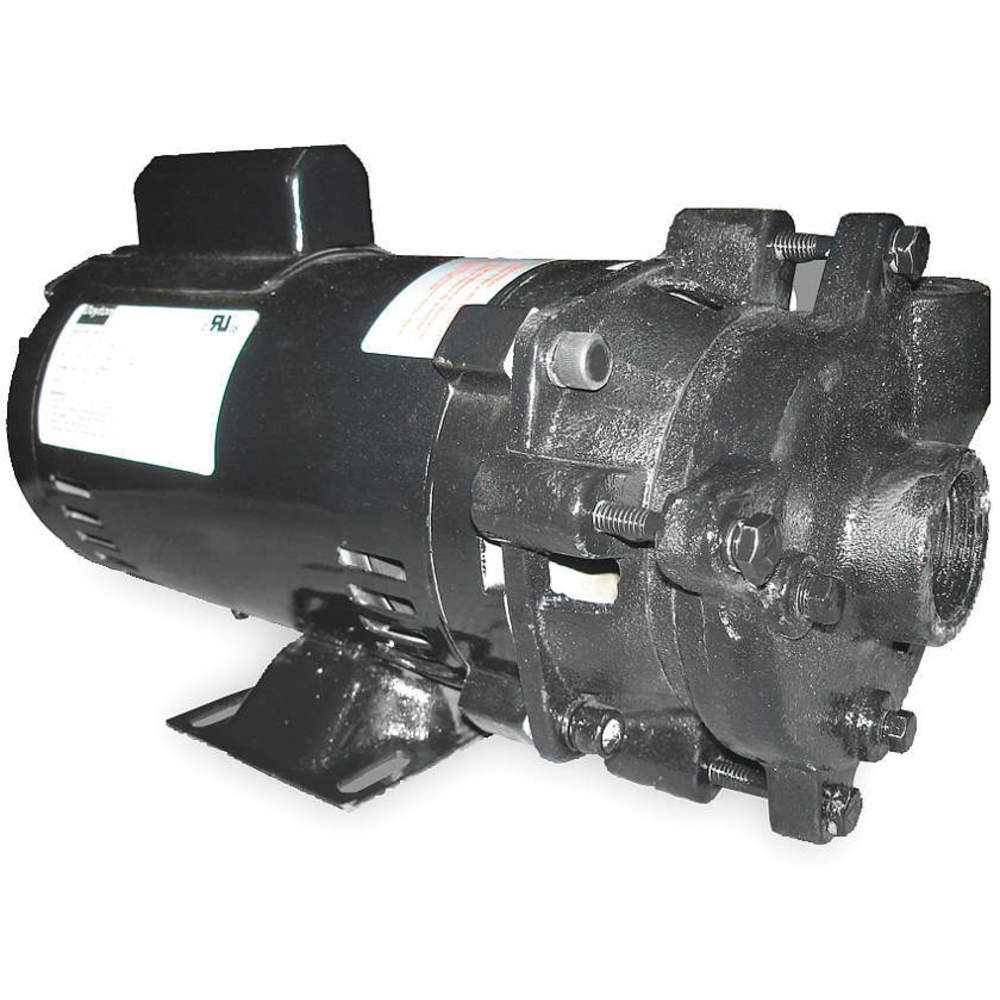

| D | 2ZWP1 | 1/2 hp | 1 | 19 psi | Open Dripproof | 115/230V AC | Cast Iron | 1 1/4" | 1" | $600.07 | |
| C | 2ZWP2 | 1/2 hp | 3 | 19 psi | Open Dripproof | 208-230/460V AC | Cast Iron | 1 1/4" | 1" | $641.22 |
