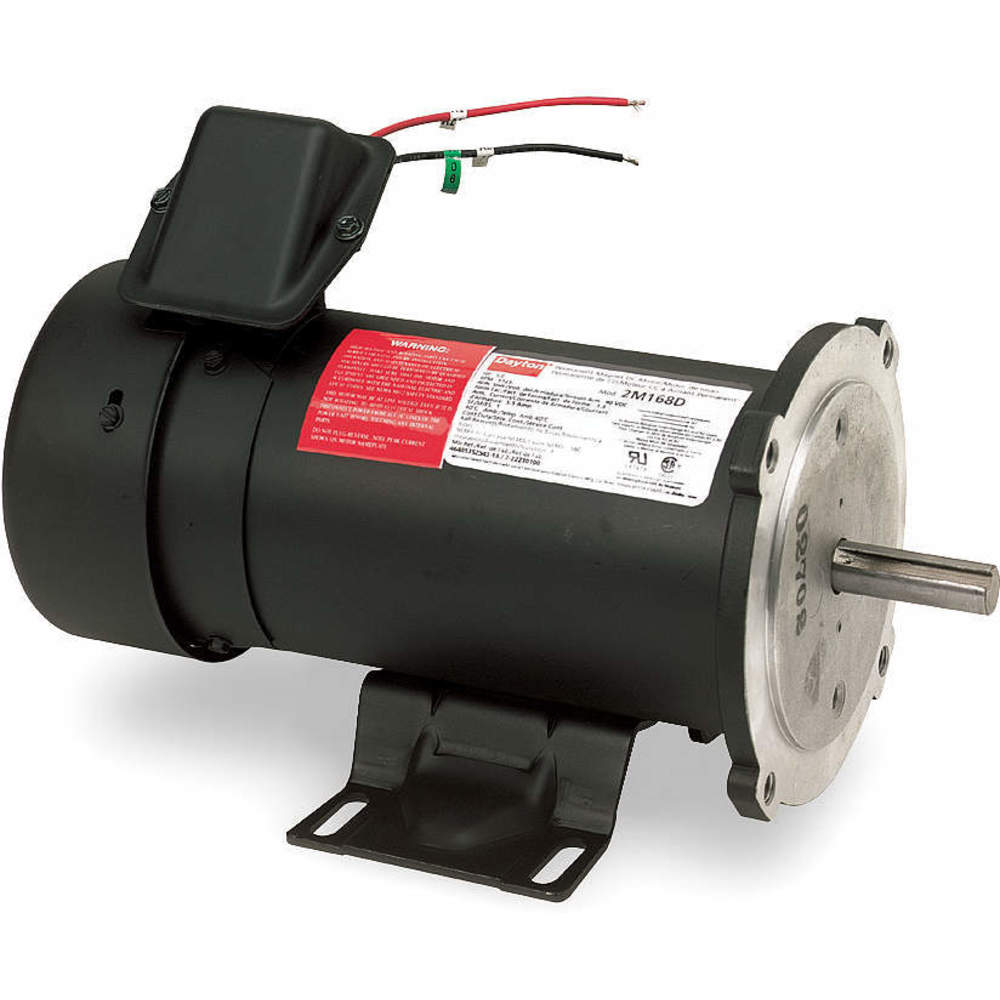

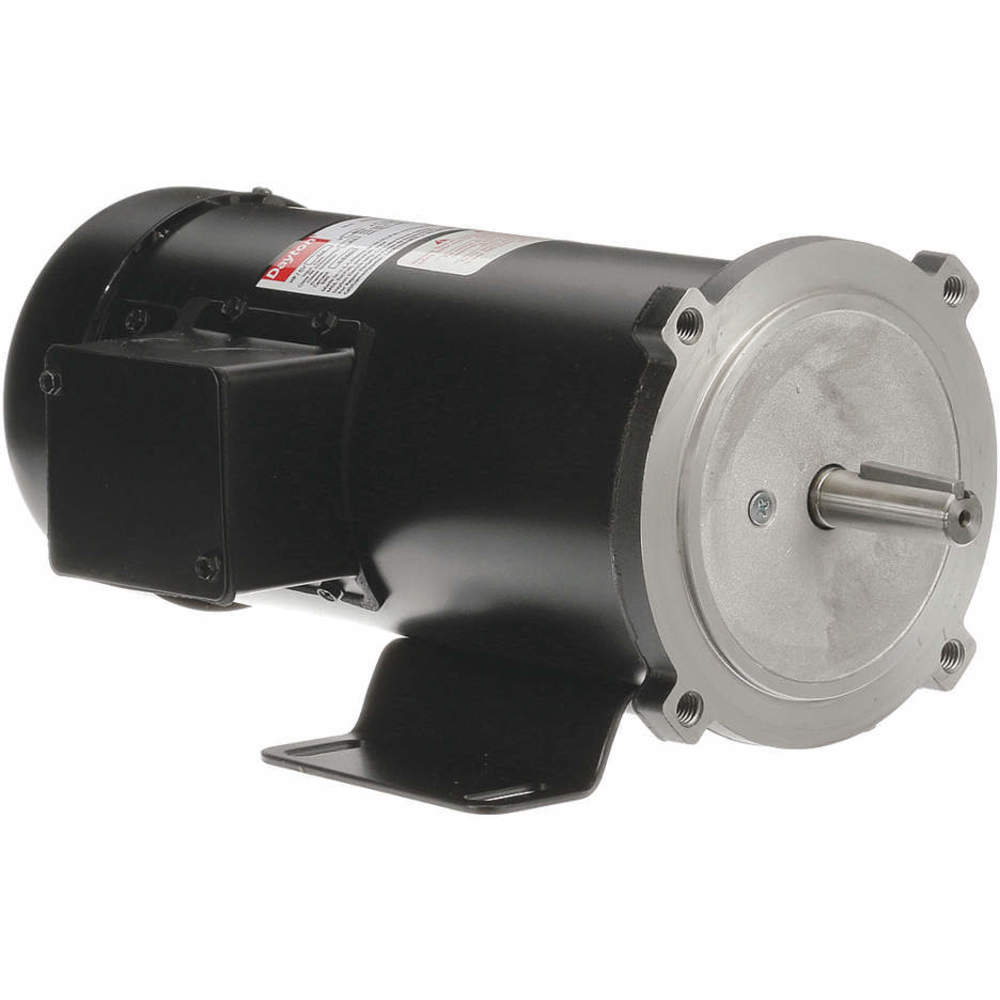

| Item | DC Permanent Magnet Motor |
|---|---|
| Armature Amps | 3.5A |
| Bearing Type | Ball |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56C |
| Full Load Amps | 3.5A |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Length | 11 5/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
|---|---|
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Overall Length | 11 5/16" |
| Rpm | 1750 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standards | Ul Recognized (E47479) |
| Thermal Protection | None |
| Voltage | 90V DC |
| Motor Thermal Protection | None |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 27.94 |
| HS Code | 8501314000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 8.235 |
| Style | Model | Voltage | Hp | Insulation Class | Motor Application | Overall Length | Brush Type | Max. Ambient Temp. | Motor Enclosure Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2M167A | 90V DC | 1/4 hp | Class F | General Application | - | - | 40°C | - | $870.61 | |
| B | 2M168A | 90V DC | 1/2 hp | Class F | General Purpose | 11 13/16" | - | 40°C | Totally Enclosed Fan Cooled | $1,042.54 | |
| C | 2M169A | 90V DC | 3/4 hp | Class F | General Purpose | 13 13/16" | - | 40°C | Totally Enclosed Fan Cooled | $1,192.97 | |
| D | 2M170A | 90V DC | 1 hp | Class F | General Purpose | 14 13/16" | - | 40°C | Totally Enclosed Fan Cooled | $1,276.25 | |
| A | 4Z378A | 180V DC | 1 hp | Class F | General Purpose | 14 13/16" | Carbon | 40°C | Totally Enclosed Fan Cooled | $1,246.14 | |
| A | 4Z524A | 180V DC | 1/2 hp | Class F | General Purpose | 11 13/16" | Carbon | 40°C | Totally Enclosed Fan Cooled | $937.04 | |
| D | 4Z525A | 180V DC | 3/4 hp | Class F | General Purpose | 13 13/16" | Carbon | 40°C | Totally Enclosed Fan Cooled | $1,083.35 |
