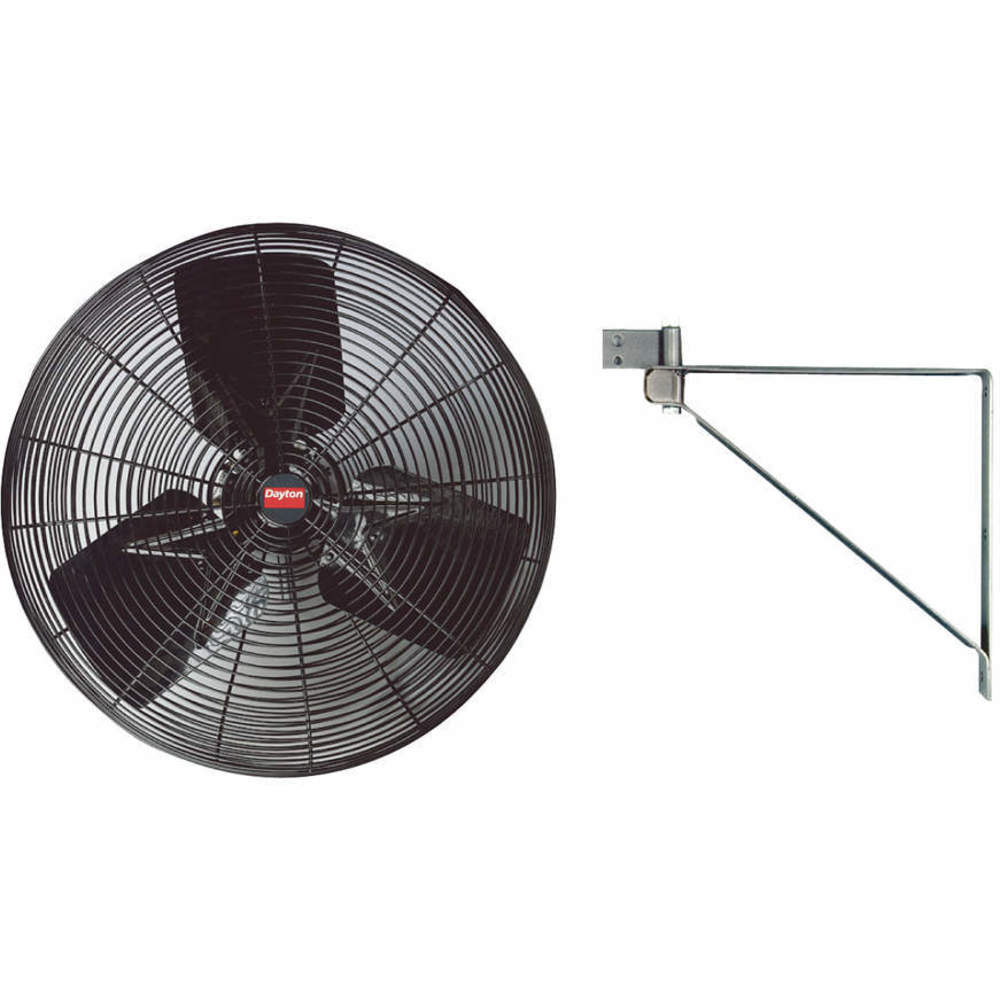

| Item | Air Circulator |
|---|---|
| Air Velocity (fpm) @ 40 Ft | 142/132 FPM |
| Air Velocity @ 10 Ft. | 475/396 FPM |
| Air Velocity @ 20 Ft. | 272/230 FPM |
| Assembled | No |
| Bearing Type | Ball |
| Blade Dia. | 18" |
| Blade Material | Aluminum |
| Cord Length | 9 ft. |
| Depth | 24" |
| Drive Type | Direct |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 9 ft. |
| Fan Speed | 1101/1019 RPM |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 38 1/8" |
| Housing Material | Steel |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 24" |
| Mobile/stationary | Stationary |
|---|---|
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/5 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1101/1019 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Wall |
| No. Of Conductors | 3 |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | Yes |
| Oscillating/non-oscillating | Oscillating |
| Oscillation | Oscillating |
| Phase | 1 |
| Shaft Dia. | 12 mm |
| Sound Level | 70 dBA, 66 dBA |
| Thermal Protection | Automatic |
| Wattage | 213/148 W |
| Width | 20 22/25" |
| Wire Guard Finish | Gloss Powder Coated |
| Height (cm) | 18.8 |
|---|---|
| Length (cm) | 85.09 |
| Width (cm) | 58.42 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 14.85 |
| Style | Model | Phase | Number Of Speeds | Motor Hp | Voltage | Blade Dia. | Mounting Location | Oscillating/non-oscillating | Sound Level | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 13V402 | 1 | 2 | 1/5 hp | 120V AC | 20" | Wall | Oscillating | 68 dBA, 65 dBA | $412.58 | |
| B | 1RWB4 | 1 | 2 | 1/4 hp | 120V AC | 30" | Ceiling, Wall | Non Oscillating | 77 dBA | $383.32 | |
| C | 1VCH1 | 1 | 1 | 1/4 hp | 115/230V AC | 24" | Wall | Non Oscillating | 76 dBA | $1,991.71 | |
| C | 1VCH2 | 1 | 1 | 3/4 hp | 115/230V AC | 30" | Wall | Non Oscillating | 80 dBA | $1,767.50 | |
| C | 1VCH3 | 1 | 1 | 3/4 hp | 115/230V AC | 36" | Wall | Non Oscillating | 82 dBA | $2,533.01 | |
| D | 1ZCN7 | 1 | 1 | 1/15 hp | 115V AC | 18" | Ceiling, Wall | Non Oscillating | 59 dBA | $259.75 | |
| E | 1ZCN8 | 1 | 1 | 1/4 hp | 115V AC | 24" | Ceiling, Wall | Non Oscillating | 74 dBA | $409.45 |
