| Item | Centrifugal Pump |
|---|---|
| Amps | 8.9/17.8-18.8A |
| Bearing Type | Ball |
| Best Efficiency Flow | 129-187 GPM |
| Best Efficiency Flow Range @ Head | 86 to 71 GPM @ 129 to 187 ft. |
| Best Efficiency Flow Rate | 129-187 GPM |
| Best Efficiency Flow Rate @ Head | 148 GPM @ 82 ft. |
| Best Efficiency Head | 71 ft. to 86 ft. |
| Compatible Discharge Pipe Size | 3" |
| Compatible Intake Pipe Size | 3" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 352 GPM |
| Flow Rate @ 20 Ft. | 333 GPM |
| Flow Rate @ 25 Ft. | 323 GPM |
| Flow Rate @ 30 Ft. | 309 GPM |
| Flow Rate @ 40 Ft. | 285 GPM |
| Flow Rate @ 50 Ft. | 257 GPM |
| Flow Rate @ 60 Ft. | 228 GPM |
| Flow Rate @ 70 Ft. | 97 GPM |
| Flow Rate @ 80 Ft. | 157 GPM |
| Flow Rate @ 90 Ft. | 0 GPM |
| Flow Rate Of Water @ 15 Ft. | 342 GPM |
| Flow Rate Of Water @ 25 Ft. | 323 GPM |
| Flow Rate Of Water @ 50 Ft. | 257 GPM |
| Flow Rate Of Water @ 90 Ft. | 121 GPM |
| For Use With Potable Systems | No |
| Frame | 184JM |
| Frequency | 60 Hz |
| Gpm Of Water @ 10 Ft. | 352 GPM |
| Gpm Of Water @ 20 Ft. | 333 GPM |
| Gpm Of Water @ 30 Ft. | 309 GPM |
| Gpm Of Water @ 40 Ft. | 285 GPM |
| Gpm Of Water @ 60 Ft. | 228 GPM |
| Gpm Of Water @ 70 Ft. | 195 GPM |
| Gpm Of Water @ 80 Ft. | 157 GPM |
| Height | 12 3/5" |
| Housing Material | Cast Iron |
| Hp | 7 1/2 hp |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open |
| Inlet Pressure | 100 psi |
| Inlet Size | 3" |
| Length | 26 1/2" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Case Pressure | 125 psi |
| Max. Flow Rate | 352 GPM |
| Max. Flow Rate @ 15 Ft. | 342 GPM |
| Max. Flow Rate @ Head | 352 GPM @ 10 ft. |
| Max. Head | 90 ft. |
|---|---|
| Max. Media Temp. | 180°F |
| Max. Pressure | 47.6 psi |
| Max. Solid Dia. | 3/8" |
| Max. Suction Lift | 20 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 352 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 333 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 309 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 285 GPM |
| Maximum Flow Rate @ 50 Feet Of Head | 257 GPM |
| Maximum Flow Rate @ 60 Feet Of Head | 228 GPM |
| Maximum Flow Rate @ 70 Feet Of Head | 97 GPM |
| Maximum Flow Rate @ 80 Feet Of Head | 157 GPM |
| Maximum Flow Rate @ 90 Feet Of Head | 0 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 121 GPM |
| Min. Flow Rate @ Head | 121 GPM @ 90 ft. |
| Min. Gpm @ Head | 121 GPM @ 90 ft. |
| Min. Head | 10 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Three Phase |
| Nameplate Voltage | 208-230/460V AC |
| Nema/iec Frame | 184JM |
| Outlet Size | 3" |
| Outlet Type | NPT |
| Overall Height | 12 3/5" |
| Overall Length | 26.5" |
| Overall Width | 10" |
| Phase | 3 |
| Port Rotation | None |
| Priming | Self Priming |
| Pump Housing Material | Cast Iron |
| Pumping Application | Decorative Water, Dewatering, Irrigation, Liquid And Chemical Transfer |
| Rpm | 3500 RPM |
| Rpm (maximum) | 3500 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Non-Flammable And Non-Abrasive Liquids Compatible With Seal Component Materials Up To 200 Deg. F |
| Seal Material | Buna N, Carbon Ceramic |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Service Factor | 1.25 |
| Shaft Material | Stainless Steel, Steel |
| Solid Diameter (maximum) | 0.38" |
| Specific Gravity | 1 |
| Thread Size | 3/4"-14 |
| Voltage | 208/230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Width | 10" |
| Standards | CULUS LISTED |
| Height (cm) | 32 |
|---|---|
| Length (cm) | 67.31 |
| Width (cm) | 25.4 |
| HS Code | 8413702015 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 87.75 |
| Style | Model | Hp | Phase | Max. Suction Lift | Max. Head | Pump Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

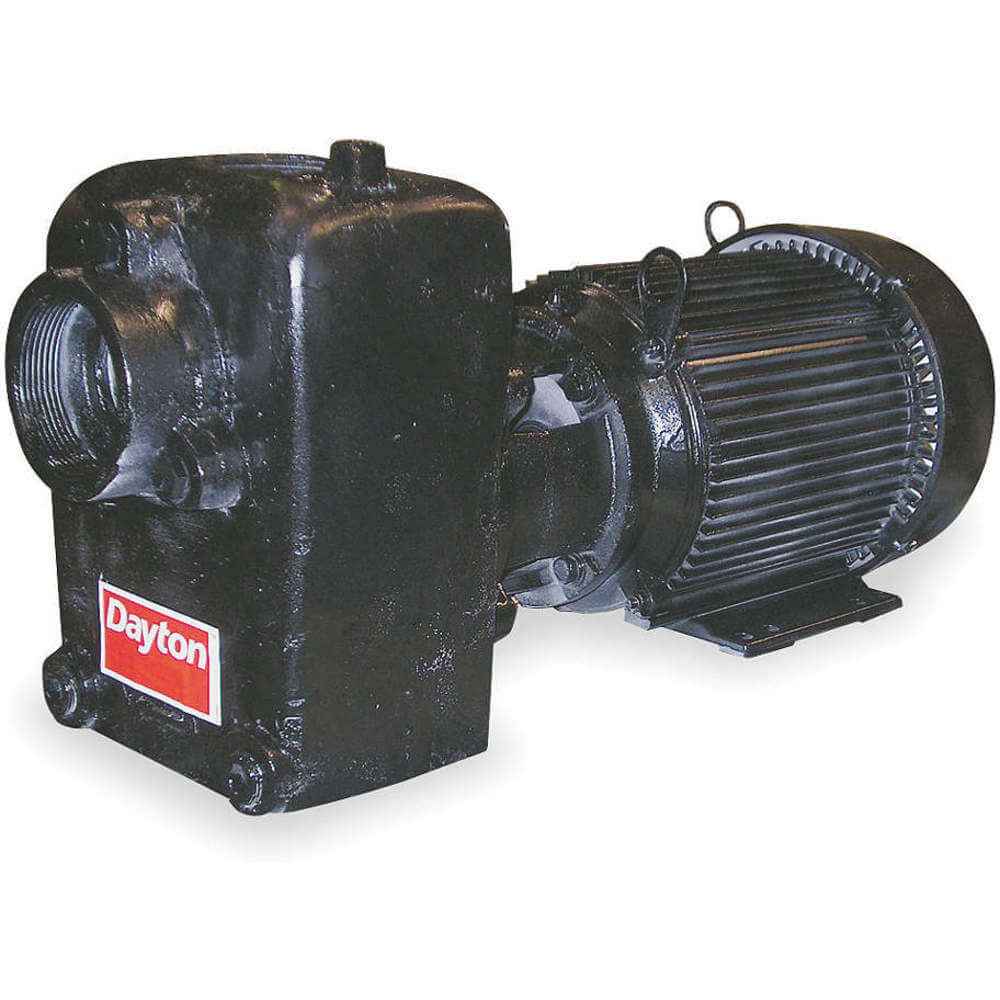

| A | 12N810 | 3 hp | 3 | 20 ft. | 65 ft. | Cast Iron | 3" | 3" | - | $2,305.66 | |
| B | 12N811 | 3 hp | 3 | 20 ft. | 65 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | $4,735.94 | |
| A | 12N812 | 5 hp | 3 | 20 ft. | 88 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | $2,576.72 | |
| B | 12N813 | 5 hp | 3 | 20 ft. | 88 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | $4,595.54 | |
| B | 12N815 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | $4,903.49 | |

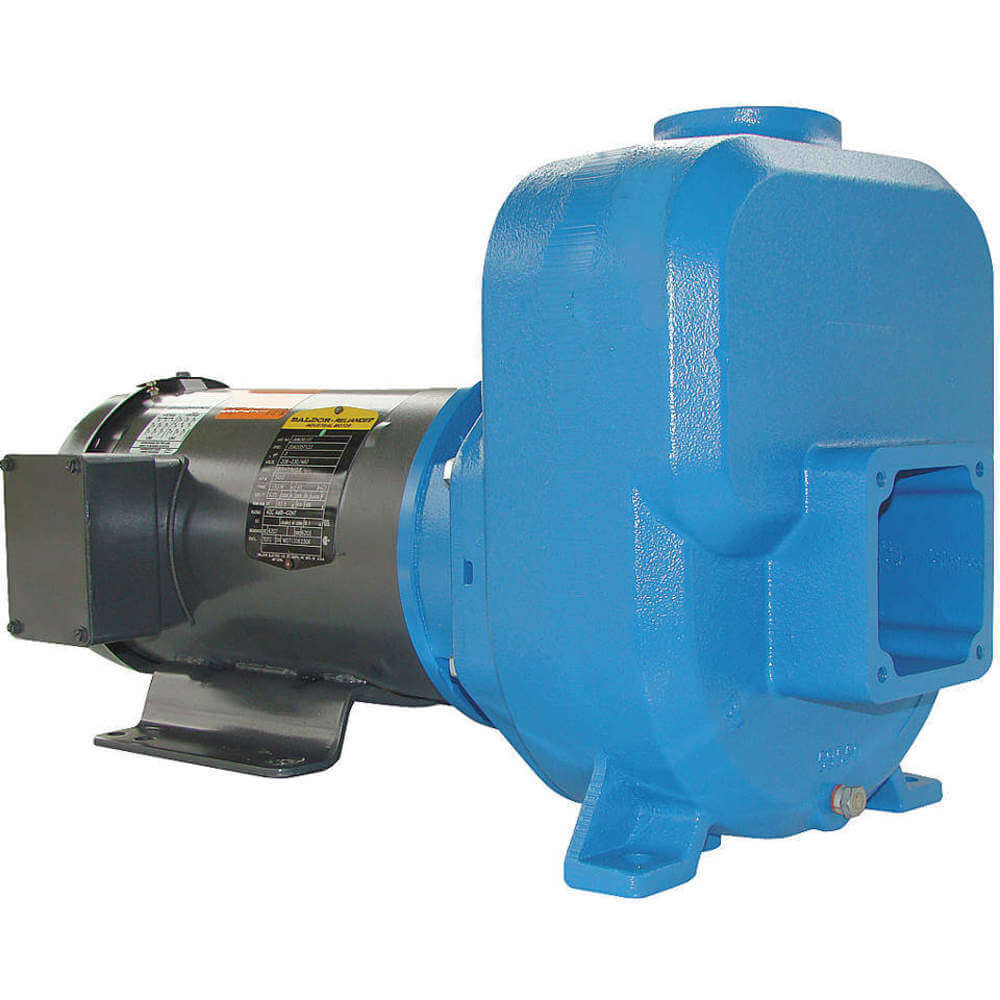

| C | 30SPM10 | 3 hp | 1 | 25 ft. | 92.4 ft. | Cast Iron | 2 1/2" | 2" | Open Dripproof | $4,584.05 | |
| C | 30SPM20 | 3 hp | 1 | 25 ft. | - | Cast Iron | 2 1/2" | 2" | Totally Enclosed Fan Cooled | $4,156.05 |
