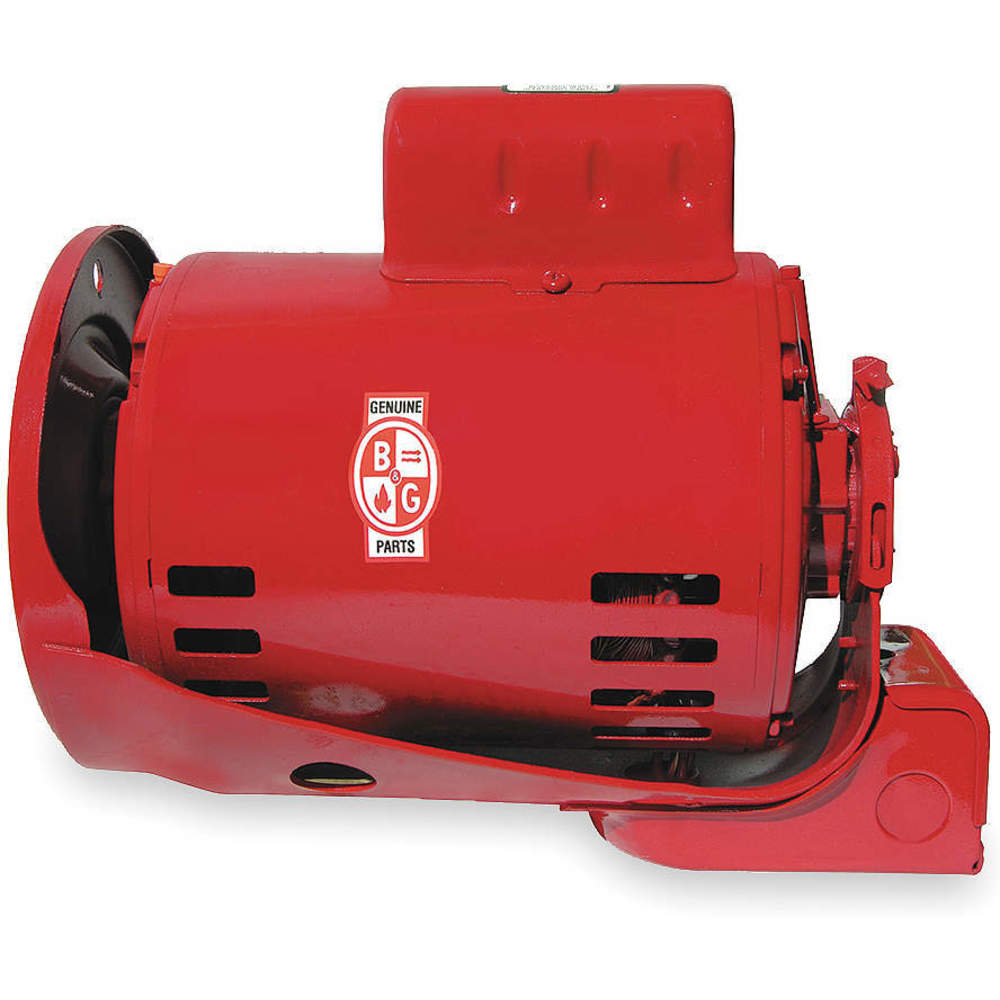

| Item | Water Circulator Motor |
|---|---|
| Compatible With Brand | Bell And Gossett |
| Compatible With Grainger Part No. | 5YN75 |
| Compatible With Manufacturer Model Number | 623S |
| Compatible With Pump Type | In Line Circulating Pumps |
| Compatible With Series | W05121 Series |
| Compatible With Series Family | BE612S, BE612T, E612S, E612T, E614S, E614T, E622S, E622T, E624S, E624T |
| Frame | NEMA 48 |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 9.8/4.5A |
| Full Load Current | 9/4.9-4.5-9.8/4.9A |
| Hp | 1 3/4 hp |
| Max. Ambient Temp. | 104°F |
| Maximum Rpm | 1725 RPM |
| Min. Ambient Temp. | 32°F |
|---|---|
| Motor Enclosure Design | Open Dripproof |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Nameplate Voltage | 115/208-230-110/220V AC |
| No. Of Speeds | 1 |
| Phase | 1 |
| Pump Type | In-Line Circulating Pump |
| Series | W05121 Series |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V AC |
| Height (cm) | 28.96 |
|---|---|
| Length (cm) | 32.77 |
| Width (cm) | 22.1 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 12.8925 |
| Style | Model | Voltage | Hp | Frame | Frequency | Full Load Amps | Motor Shaft Rotation | Motor Type | Phase | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 111040 | 115V AC | 1/4 hp | B&G FRAME 6" | 60 Hz | 3A | Counter Clockwise Lead End | Split Phase | 1 | $1,833.51 | |
| A | 111042 | 115/240V AC | 1/3 hp | B&G FRAME 6" | 60 Hz | 4.2A | Counter Clockwise | Split Phase | 1 | $2,132.88 | |
| B | 111044 | 115/230V AC | 1/2 hp | B&G FRAME 6" | 60 Hz | 5.2A | Clockwise Lead End | Split Phase | 1 | $3,264.11 | |
| B | 111047 | 115/240V AC | 3/4 hp | B&G FRAME 6" | 60 Hz | 7A | Clockwise Lead End | Split Phase | 1 | $3,885.98 | |
| C | 169237 | 208-240/460V AC | 1 1/2 hp | NEMA 56 | 60 Hz | 4.8A | Clockwise Lead End | Three Phase | 3 | $3,443.40 | |
| A | 111034 | 115V AC | 1/12 hp | B&G FRAME 5" | 60 Hz | 1.7A | Counter Clockwise Lead End | Split Phase | 1 | $762.97 | |
| A | 111031 | 115V AC | 1/6 hp | B&G FRAME 5" | 60 Hz | 1.9A | Counter Clockwise Lead End | Split Phase | 1 | $987.87 |
