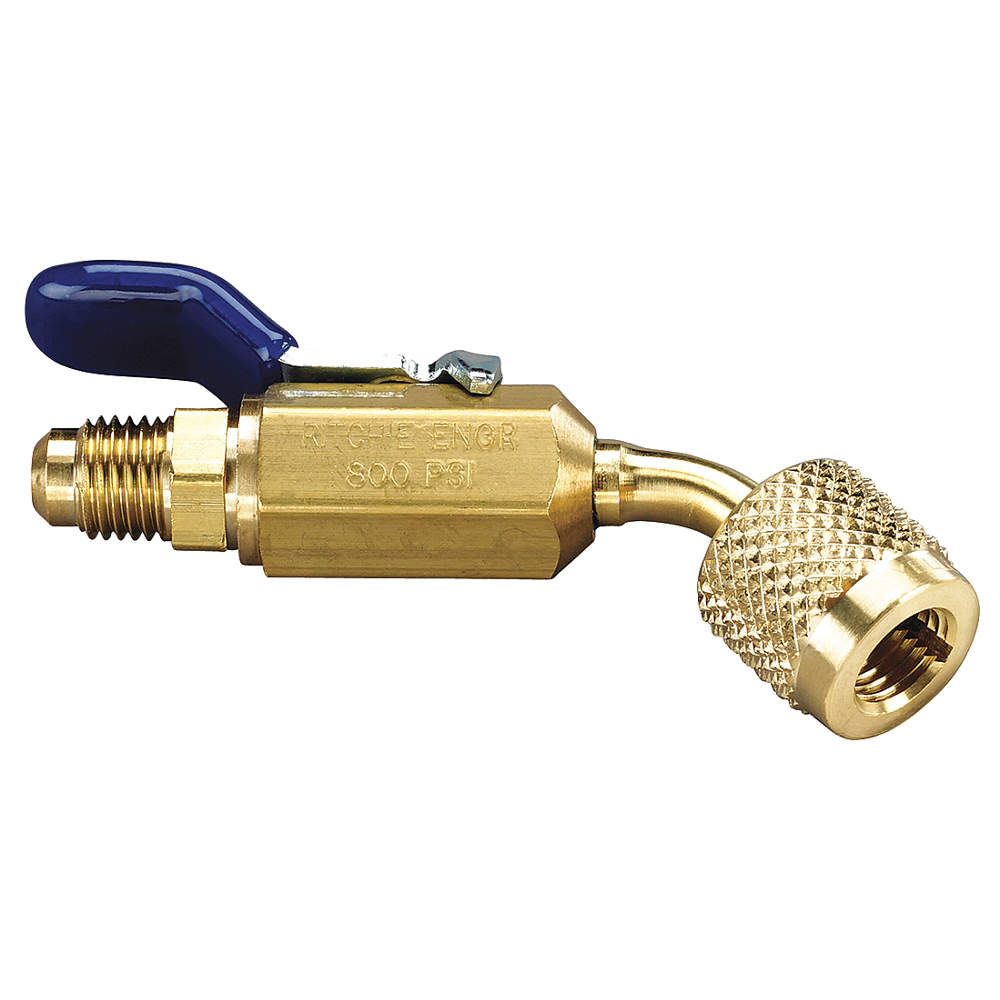

YELLOW JACKET 93842 Compact Ball Valve, 1/4 Inch Size, 45 Deg. Bend, 3PK

What are the factors to consider while choosing this Yellow Jacket 93842 compact ball valve?

Major factors include size compatibility, angle bend design, material construction, pressure ratings, refrigerant compatibility, versatility, adherence to industry standards and ease of installation.

How do I install this compact ball valve?

• Ensure that the HVAC/R system is turned off and the work area is well-ventilated.
• Confirm that the ball valve's 1/4 inch male x 1/4 inch female connection is compatible with your existing fittings.
• Use appropriate safety gear, such as gloves and safety glasses, to protect yourself during installation.
• Securely shut off the system to prevent refrigerant leaks or pressure issues during installation.
• Release any residual pressure in the system by following the proper procedures outlined in the HVAC/R system manual.
• Identify the optimal location for installing the ball valve, considering accessibility and the 45-degree bend for tight spaces.
• Ensure that the male and female ends of the ball valve are clean and free from debris.
• If required, apply thread sealant to the male threads to ensure a secure and leak-free connection.
• Hand-tighten the ball valve onto the existing fittings, ensuring a snug fit.
• Turn the system back on and check for any leaks around the connections. If leaks are detected, re-tighten as necessary.

What is the purpose of the 45-degree bend in the design?

The 45-degree angle facilitates easier installation in tight spaces, enhancing flexibility and convenience during setup.

How do I maintain this Yellow Jacket 93842 compact ball valve?

• Check connections for leaks during routine system checks and tighten as necessary.
• Check connections for leaks during routine system checks and tighten as necessary.
• Keep male and female connections clean to prevent debris from affecting valve performance.
• Verify the ball valve's smooth operation by turning it to ensure proper refrigerant flow control.
• If recommended, apply a small amount of compatible lubricant for smooth movement.
• Inspect seals and gaskets for wear or damage and replace any components showing signs of deterioration.
• Ensure that the 45-degree bend remains intact, providing flexibility in tight spaces.
• Periodically check the working pressure & burst pressure to ensure they meet system requirements.
