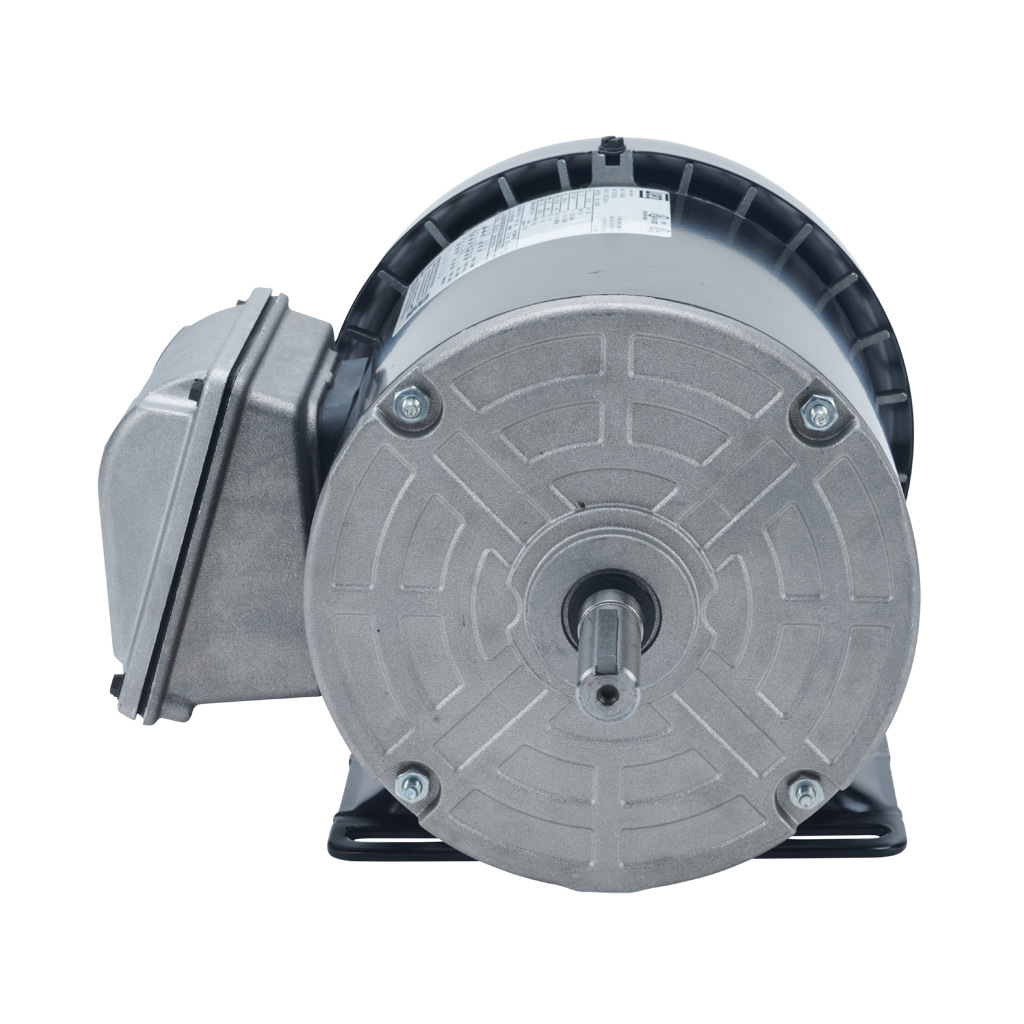

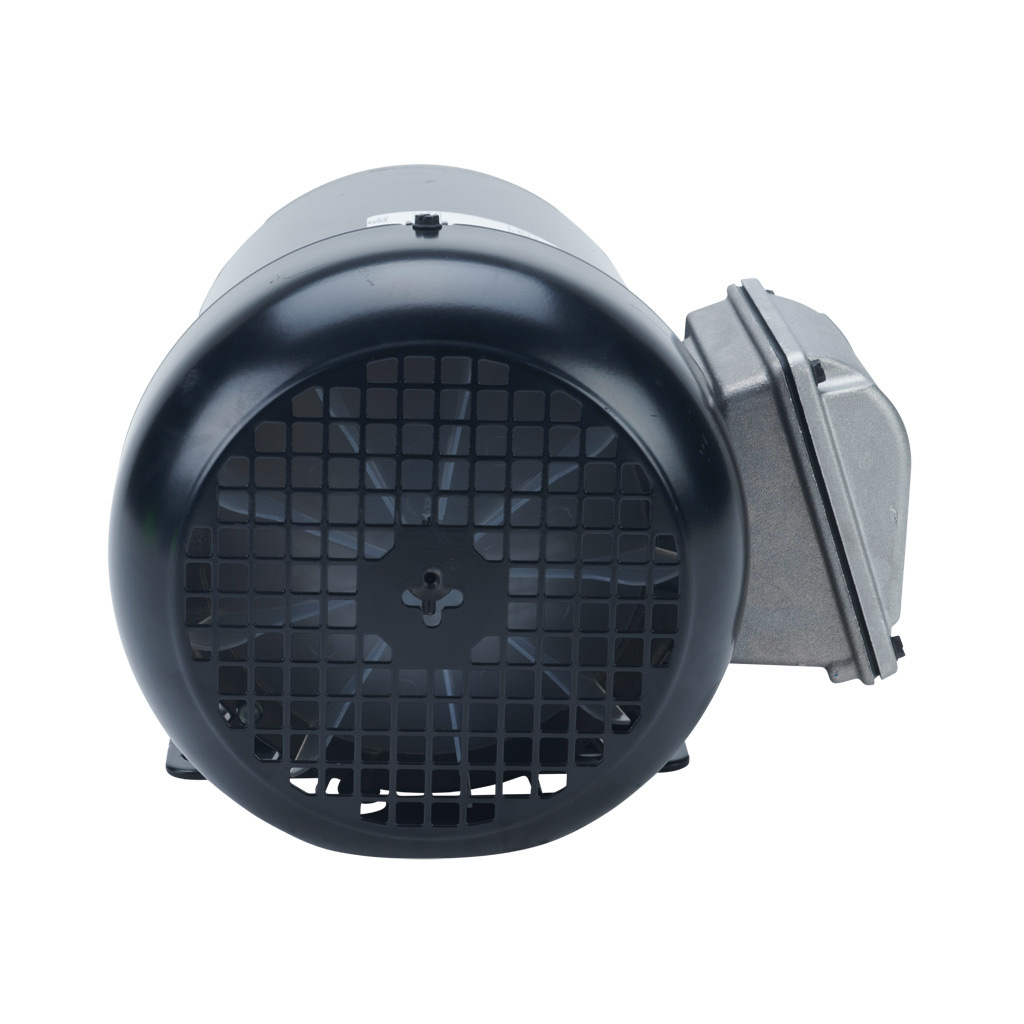

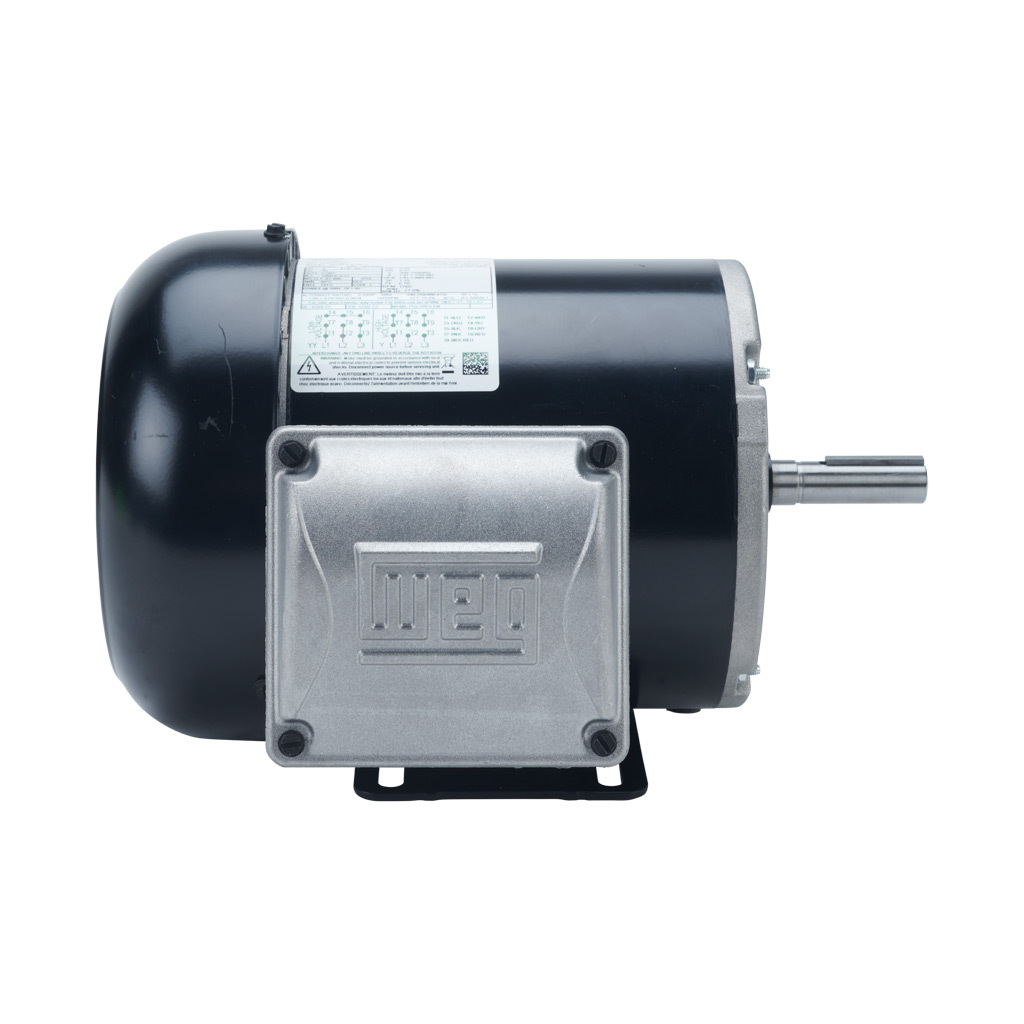

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 104°F |
| Base Type | Rigid Base |
| Bearing Cap | No |
| Bearing Type | Ball |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Capacitor Required | No |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 10:1 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 77% |
| Efficiency @ 100% | 77% |
| Efficiency @ 50% | 68% |
| Efficiency @ 75% | 74% |
| Efficiency Group | Standard , Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.72-1.91/0.862A |
| Full Load Amps @ 50hz | 1.8/0.952/1.9/0.95A |
| Green Certification Or Other Recognition | rohs.png |
| Grounding Lugs | Single |
| Hp | 1/2 hp |
| Hp @ 50hz | 1/2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Integrated Brake | No |
| Inverter Rated | Yes |
| Ip Rating | IP55 |
| L.r. Amperes | 6.03/12.1-13.3A |
| Length Less Shaft | 9 11/16" |
| Locked Rotor Time (cold) | 36 sec. |
| Locked Rotor Time (hot) | 20 sec. |
| Locked Rotor Torque | 240% |
| Main Terminal Box Hole | 0.881" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.0584 lbs.-sq. ft. |
| Motor Application | General Application , General Purpose And Inverter Rated |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56 |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Induction |
| Mounting | F-1 |
| Mounting Orientation | Horizontal |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| No Load Amps | 0.6/1.03-1.2A |
| No. Of Speeds | 1 |
| Noise Level | 52 dBA |
| Nominal Efficiency | 77% |
| Number Of Phases | 3 |
| Number Of Poles | 4 |
| Output Rating | 1/2 hp |
| Overall Length | 11 9/16" |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.48 |
| Power Factor 75% | 0.61 |
| Power Factor_100% | 0.7 |
| Rated Current | 0.862/1.72-1.91A |
| Rated Speed | 1760 RPM |
| Rated Torque | 1.49 lbs.-ft. |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Type | Round With Square Key |
| Slip | 2.22% |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/208-230/380-415/460V , 208-230/460V AC |
| Voltage Rating | 208-230/460V AC |
| Voltage Type | AC |
| Warranty | 3 yrs. |
| Motor Thermal Protection | None |
| Height (cm) | 24.13 |
|---|---|
| Length (cm) | 29.3 |
| Width (cm) | 31.24 |
| HS Code | 8501514040 |
|---|---|
| Country Of Origin | BR |
| Weight (kg) | 10.8 |
| Style | Model | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 00158ET3W90L-W22 | 1 | 50 Hz | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | $923.70 | |
| A | 00218ET3W100L-W22 | 1 | 60 Hz | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | 1700-1800 RPM | $1,106.18 | |
| A | 00418ET3Y112M-W22 | 1 | 50 Hz | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | $1,189.76 | |
| A | 00518ET3Y132S-W22 | 1 | 60 Hz | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | 1700-1800 RPM | $1,629.30 | |
| A | 00718ET3Y132M-W22 | 1 | 50 Hz | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | 1700-1800 RPM | $1,937.46 | |
| B | 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | 25 hp | 30.6A | 1775 RPM | - | Face/Base | 1700-1800 RPM | $4,531.52 | |
| B | 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | 30 hp | 36A | 1775 RPM | - | Face/Base | 1700-1800 RPM | $5,986.39 |
