| Item | Double Check Valve Assembly |
|---|---|
| Backflow Preventer Type | Double Check Assembly (Dc) |
| Body Material | Bronze |
| Check Valve Length | 7 1/2" |
| Configuration | With Strainer |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Quarter Turn |
| Flow Rate | 60 GPM |
| For Media | Water |
| Handle Type | Tee |
| Hazard Protection Level | Low Health Hazard |
| Includes Flow Meter | No Flow Meter |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | Strainer Included |
| Length | 22 1/2" |
| Manufacturer Warranty | 1 yr. |
| Material | Bronze |
|---|---|
| Max. Media Temperature | 180°F |
| Max. Pressure | 175 psi |
| Max. Pressure (cwp) | 175 psi |
| Max. Temp. | 180°F |
| Media Temp. Range | 33°F to 180°F |
| Min. Media Temperature | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Number Of Test Ports | 4 |
| Overall Height | 7 3/4" |
| Overall Length | 17.94" |
| Overall Width | 3.38" |
| Pipe Size | 1" |
| Protection Type | Back Pressure, Back Siphonage |
| Seat Material | Plastic |
| Shut-off Valve Type | Ball Valve |
| Size | 1" |
| Temp. Range | +33°F to +180°F |
| Valve Series | 007 Series |
| Width | 7 1/4" |
| Standards | ASSE 1015, AWWA C510, CSA B64.5, IAPMO PS31, UPC, USC-FCCCHR |
| Height (cm) | 19.3 |
|---|---|
| Length (cm) | 44.45 |
| Width (cm) | 26.67 |
| HS Code | 8481301090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 4.86 |
| Style | Model | Body Material | Seat Material | Valve Type | Connection Type | Body Finish | Max. Working Pressure | Min. Temp. | Disc Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 007M2QTS-3/4 | - | - | - | NPT | - | - | - | - | $758.60 | |
| A | 007MIQTS-S | Bronze | Plastic | - | FNPT x FNPT | - | - | - | - | $1,609.50 | |

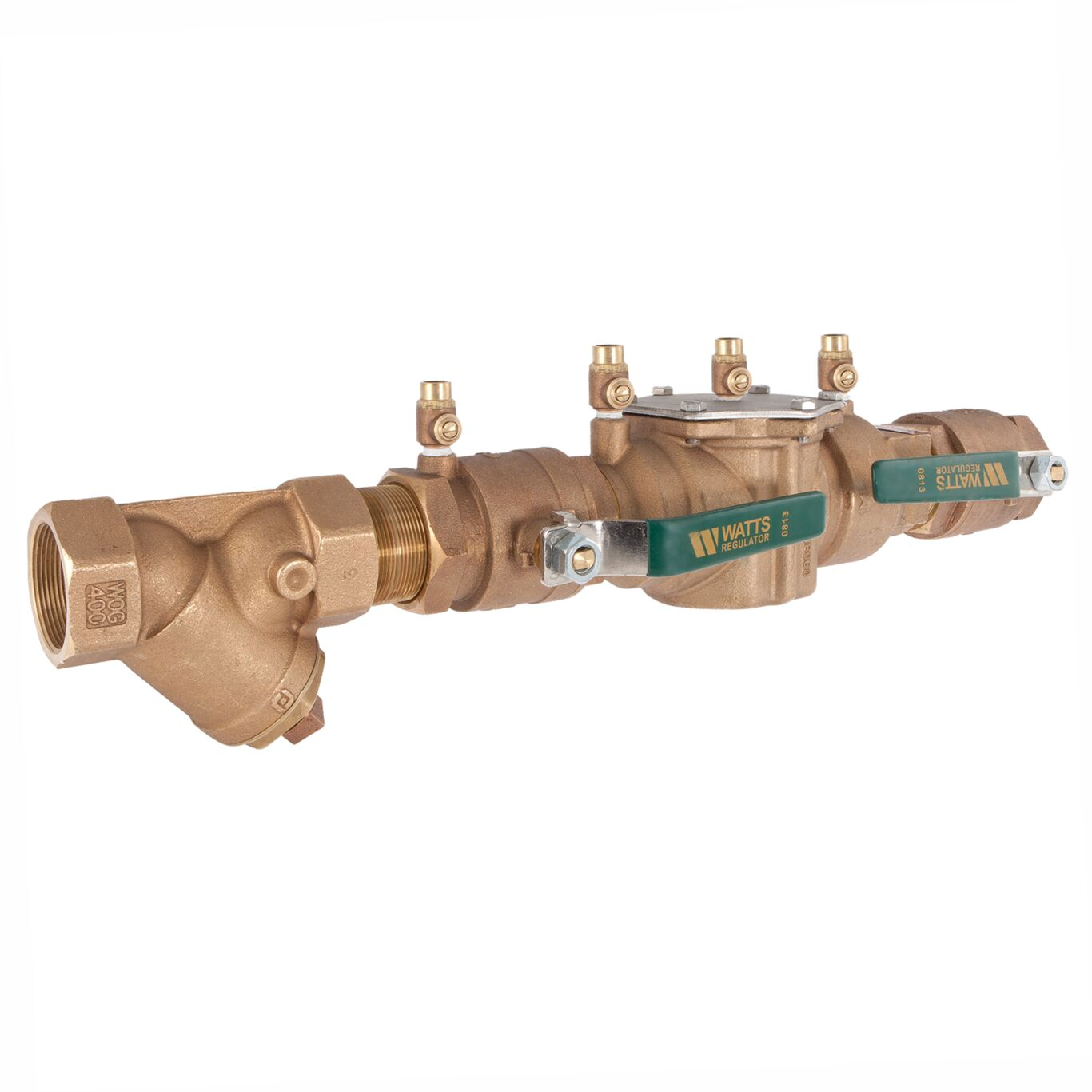

| B | 007M1-QT-S 2 | Cast Bronze | Rubber | Quarter Turn Ball Valve | - | Plain | 175 psi | 33°F | Silicone | $1,311.32 | RFQ
|
| C | U007M1-QT 2 | Cast Bronze | - | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 33°F | Rubber | $1,665.33 | RFQ
|

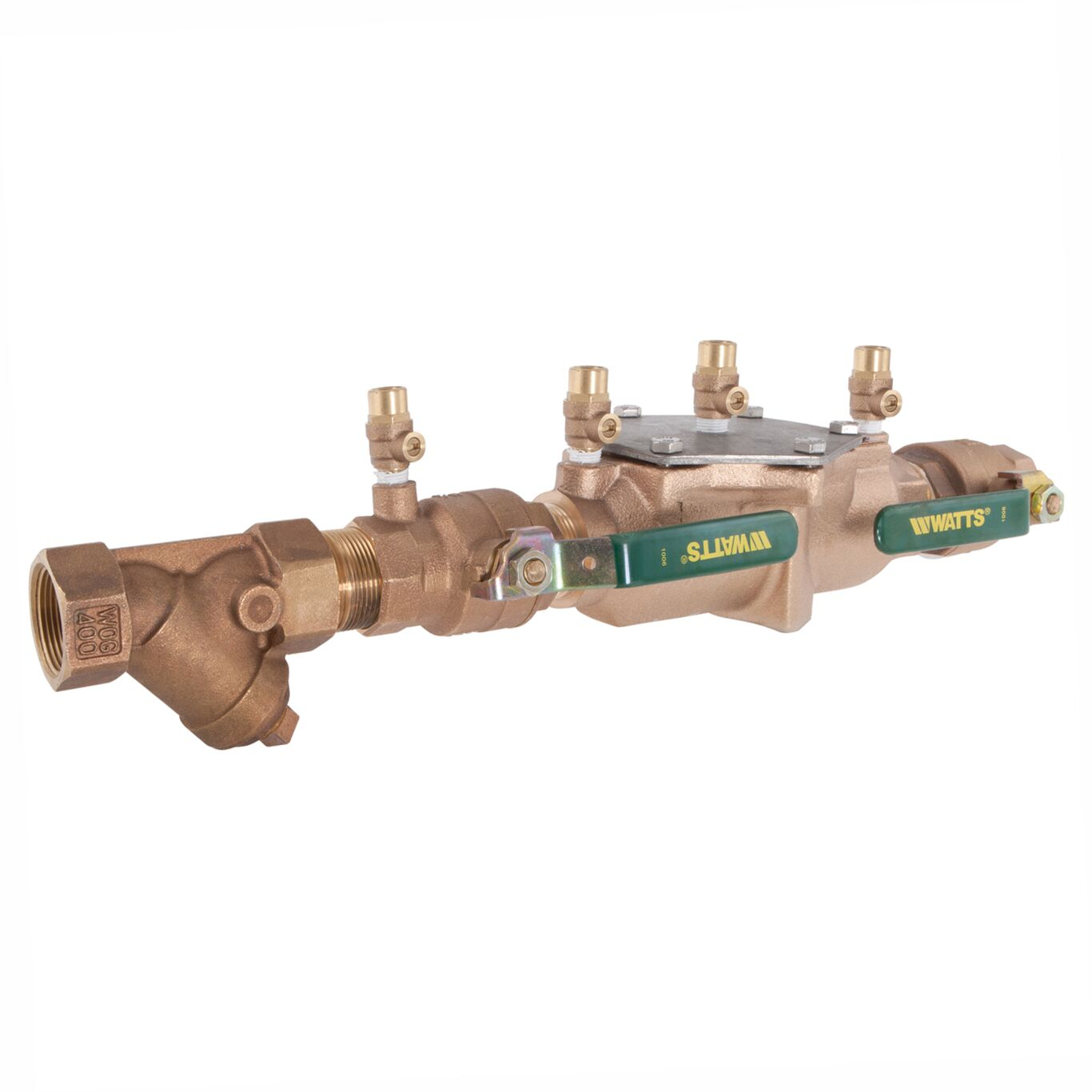

| D | 007M2-QT-S 1 1/2 | Cast Bronze | Rubber | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 0.5°C | Rubber | $1,101.34 | RFQ
|
| E | U007M1-QT-S 2 | Cast Bronze | - | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 33°F | Rubber | $1,562.88 | RFQ
|
| D | 007M2-QT-S 1 1/4 | Cast Bronze | Rubber | Quarter Turn Ball Valve | - | Cast Bronze | 12.1 Bar | 33°F | Rubber | $891.36 | RFQ
|
