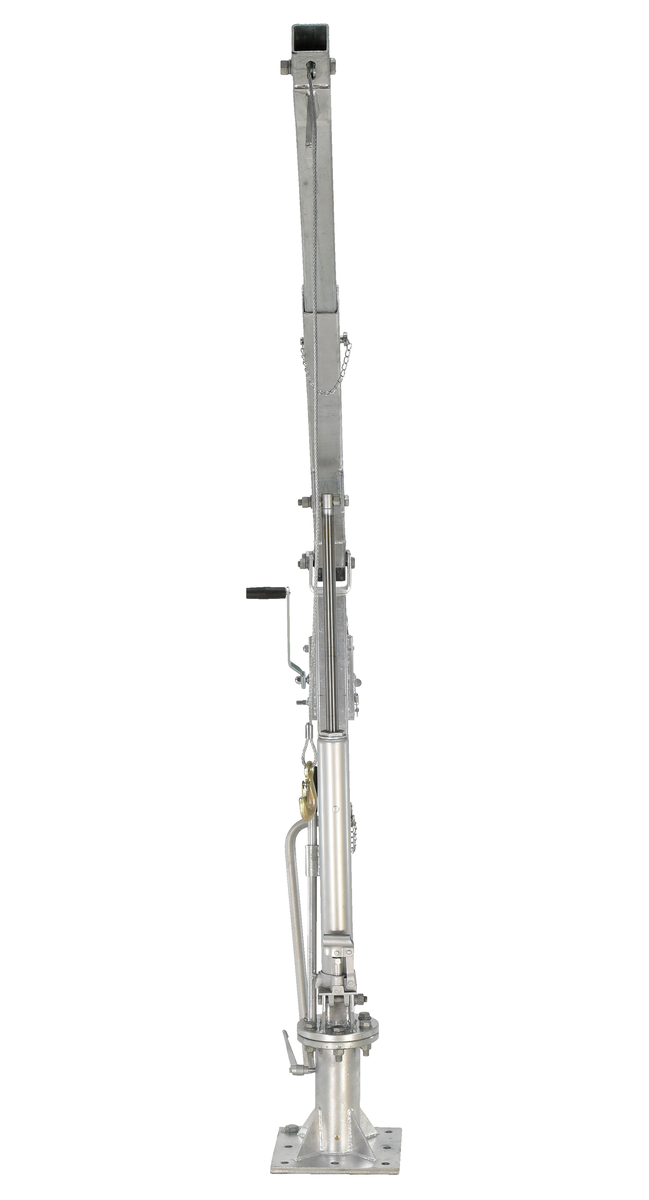

| Item | Jib Crane |
|---|---|
| Assembled Depth | 11" |
| Assembled Height | 59 3/4" |
| Assembled Width | 32 7/8" |
| Assembly | Assembly Required |
| Base Height | 11 1/2" |
| Base Length | 11" |
| Base Width | 11" |
| Body Finish | Galvanized |
| Body Material | Steel |
| Boom Length | 31" to 52" |
| Boom Length Adjustability | Expandable |
| Boom Weight | 150 lbs. |
| Cable Dia. | 1/4" |
| Cable Retracts/extension Per Crank | 1 1/2" |
| Cable Winch Capacity | 500 lbs. |
| Color | Gray |
| Color Family | Gray |
| Compatible Base Manufacturer Part Number | Not Applicable |
| Control Type | Manual Handle |
| Depth | 11" |
| Extended Capacity | 1000 lbs. |
| Extended Length | 52" |
| Extended Max. Hook Height | 97" |
| Extended Min. Hook Height | 0.0" |
| Extended Usable Reach | 52" |
| Features | Powered Cable Winch Makes Lifting And Maneuvering Easy |
| Finish | Galvanized |
| Height | 59 3/4" |
| Height Under Boom | 48" |
| Included Base Type | Pedestal |
| Included Components | 3/16 Inx 32 Ft Steel Cable, Chain Slot Lock, Lifting Hook, Pedestal Mount Base, Safety Latch Hook |
| Includes | Chain Slot Lock, Grab Hook, Sling Hook With Latch |
| Length | 11" |
| Lift Height | 0" to 7.2 ft. |
| Mast Dia. | 3" |
|---|---|
| Mast Weight | Not Applicable |
| Material | Steel |
| Max. Load Capacity | 1000 lbs. |
| Maximum Adjustable Boom Length | 52" |
| Maximum Extended Arm Load Capacity | 1000 lbs. |
| Maximum Lifting Height | 7.2 ft. |
| Minimum Adjustable Boom Length | 31" |
| Minimum Lifting Height | 0" |
| Mobility | Stationary |
| Mounting Plate Length | 11" |
| Mounting Plate Width | 11" |
| Mounting Type | Base Mounted |
| Number Of Boom Length Positions | 2 |
| Number Of Cranks To Retract/extend Cable | 72 |
| Operation Mode | Manual |
| Overall Cable Length | 32 ft. |
| Overall Depth | 11" |
| Overall Fixed Boom Length | Not Applicable |
| Overall Height | 59 4/5" |
| Overall Weight | 182 lbs. |
| Overall Width | 32.9" |
| Piston Stroke | 16 3/8" |
| Piston Stroke Per Pump | 0.062" |
| Power Source | Manual |
| Retracted Capacity | 2000 lbs. |
| Retracted Length | 31" |
| Retracted Max. Hook Height | 86" |
| Retracted Min. Hook Height | 13 1/2" |
| Retracted Usable Reach | 31" |
| Rotation | 360° |
| Swivel Angle | 360° |
| Usable Cable Length | 24 ft. |
| Width | 32.9" |
| Winch Type | Manual |
| Height (cm) | 48.26 |
|---|---|
| Length (cm) | 121.92 |
| Width (cm) | 101.6 |
| HS Code | 8426910000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 98.1 |
| Style | Model | Overall Height | Overall Weight | Color | Material | Height | Depth | Base Length | Base Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | WTJ-2-G | 59 1/2" | 125 lbs. | Gray | Steel | 59 1/2" | 11" | 11" | 11" | $1,170.65 | |
| B | WTJ-4 | 57 1/2" | 145 lbs. | Yellow | Steel | 57 1/2" | 10 3/5" | 11" | 11" | $904.86 | |
| C | WTJ-2 | 56 4/5" | - | Yellow | Steel | 56 3/4" | 10 3/5" | 10 5/8" | 10 5/8" | $1,188.51 | |
| D | WTJ-2-DC | - | - | Yellow | Steel | 59 1/2" | 11" | 11" | 11" | $1,267.48 | |
| E | WTJ-2-G-DC | - | - | Gray | Steel | 59 1/2" | 11" | 11" | 11" | $1,541.69 | |
| F | WTJ-2-SS | - | - | Silver | Stainless Steel | 59 1/2" | 11" | 11" | 11" | $3,521.76 | |
| G | WTJ-4-DC | - | - | Yellow | Steel | 56 1/2" | 20" | 11" | 11" | $2,912.68 |
