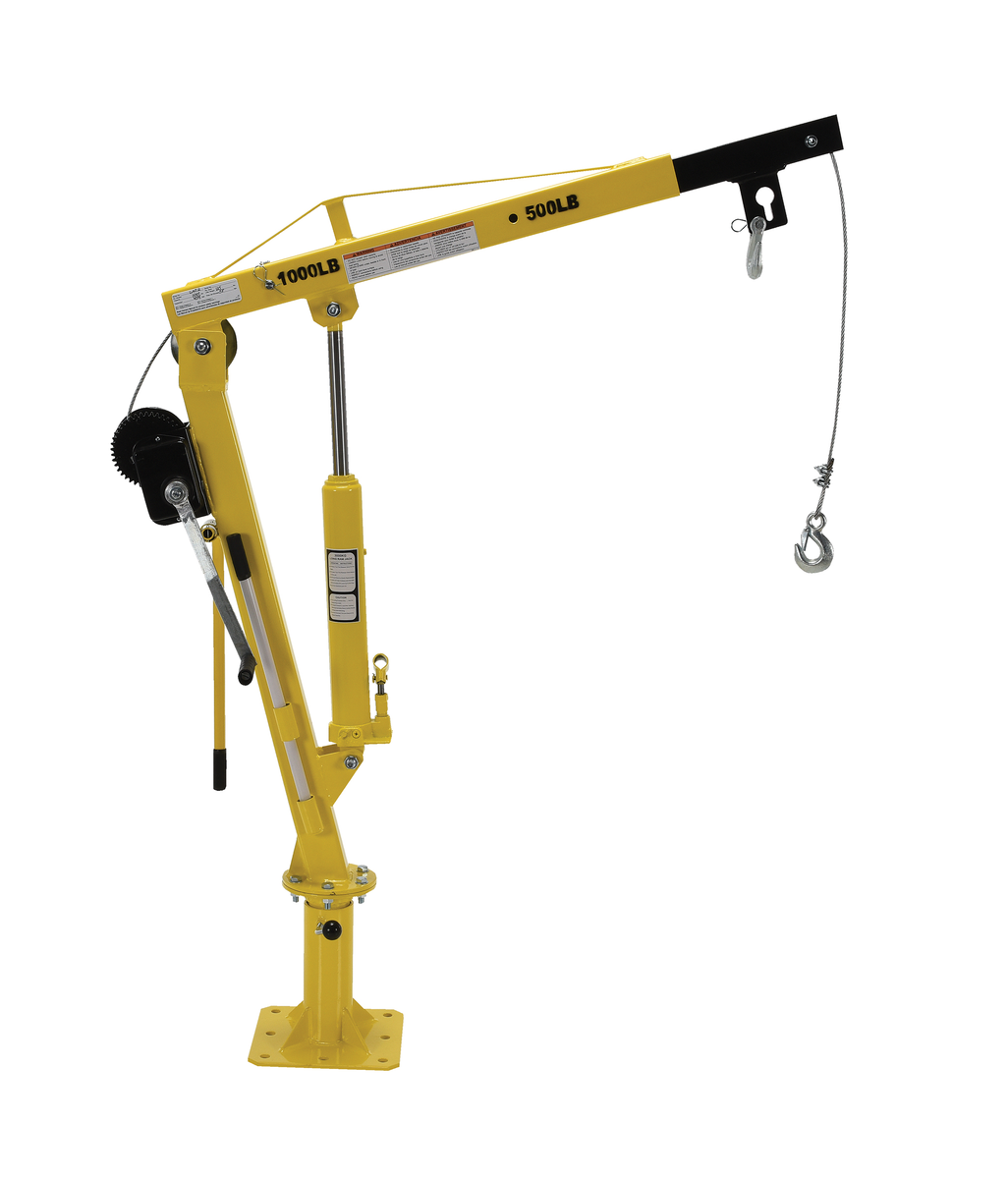

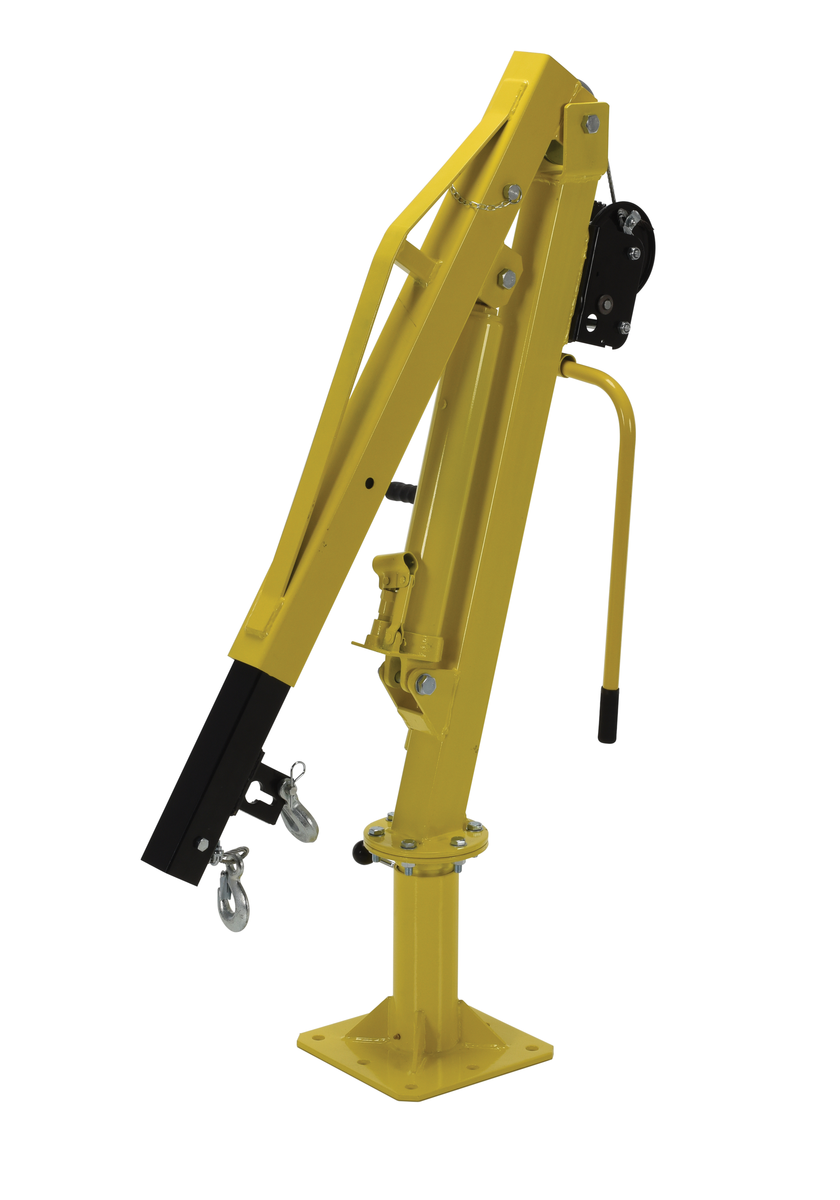

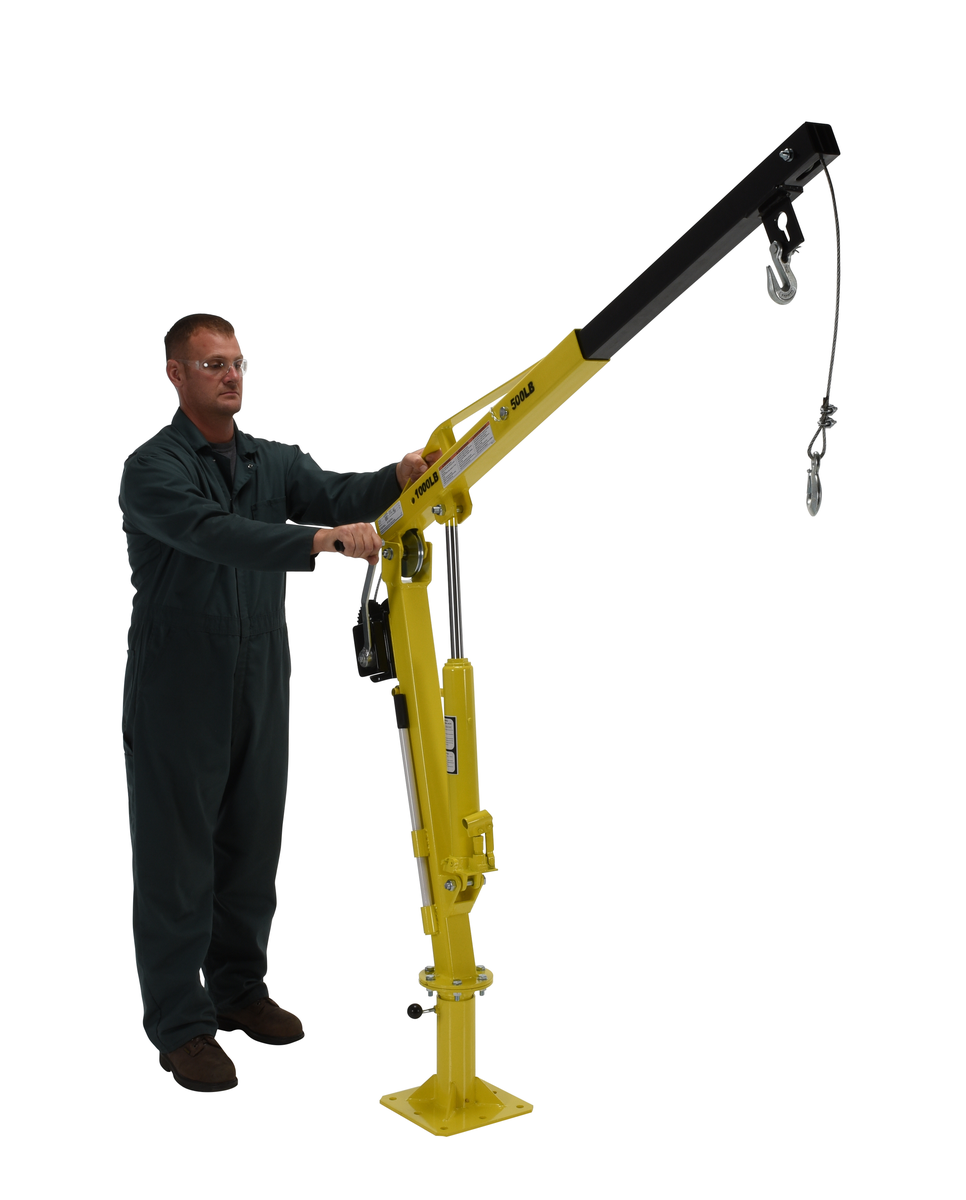

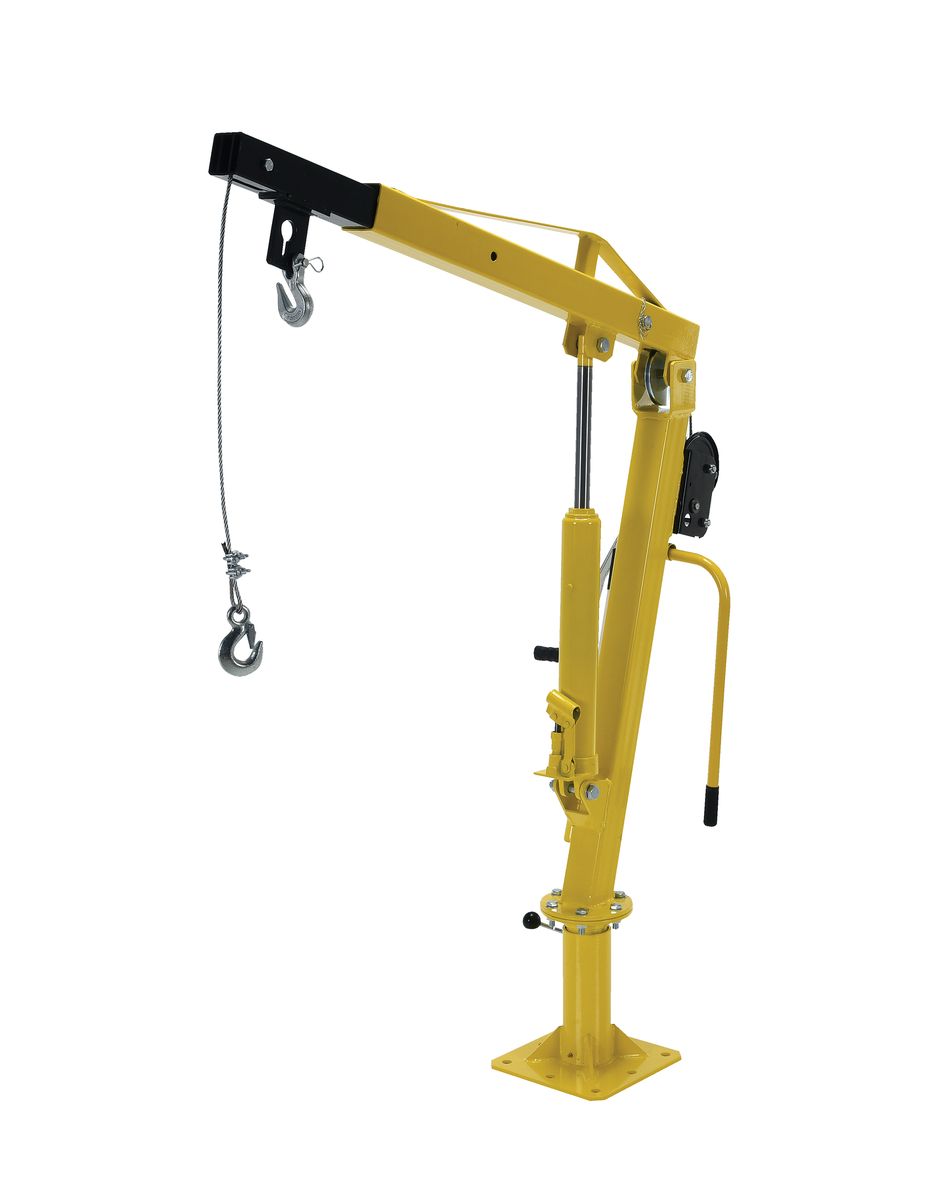

| Item | Jib Crane |
|---|---|
| Assembled Depth | 10 5/8" |
| Assembled Height | 56 3/4" |
| Assembled Width | 33" |
| Assembly | Assembly Required |
| Base Height | 11 3/4" |
| Base Length | 10 5/8" , 10.63" |
| Base Width | 10 5/8" , 10.63" |
| Batteries Included | No |
| Body Finish | Powder Coated |
| Body Material | Steel |
| Boom Length Adjustability | Expandable |
| Cable Dia. | 3/16" |
| Cable Retracts/extension Per Crank | 1 1/2" |
| Cable Winch Capacity | 500 lbs. |
| Capacity | 500 lbs. |
| Certification Indicator | No |
| Color | Yellow |
| Color Family | Yellow |
| Compatible Base Manufacturer Part Number | Not Applicable |
| Contains Hazardous Material Or Is Aerosol | No |
| Control Type | Manual Handle |
| Depth | 10 3/5" |
| Extended Capacity | 500 lbs. |
| Extended Length | 54" |
| Extended Max. Hook Height | 102" |
| Extended Maximum Hook Height | 102" |
| Extended Min. Hook Height | 0.0" |
| Extended Usable Reach | 54" |
| Features | Mounts To Truck Bed Allowing For Easy Product Loading And Unloading |
| Finish | Powder Coated |
| Frame Material | Steel |
| Height | 56 3/4" |
|---|---|
| Height Under Boom | 48" |
| Includes | Manual Hydraulic Hand Pump |
| Installation Hardware Included | No |
| Mast Dia. | 3" |
| Mast Weight | Not Applicable |
| Material | Steel |
| Max. Rotation | 360° |
| Maximum Adjustable Boom Length | 54" |
| Minimum Adjustable Boom Length | 30.3" |
| Mobility | Stationary |
| Mounting Plate Length | 10 5/8" |
| Mounting Plate Width | 10 5/8" |
| Operation Mode | Manual |
| Origin Criterion | No |
| Overall Cable Length | 14.5 ft. |
| Overall Fixed Boom Length | Not Applicable |
| Overall Height | 56 4/5" |
| Overall Width | 33" |
| Piston Stroke | 16 3/8" |
| Piston Stroke Per Pump | 1/16" |
| Power Source | Manual |
| Power Type | Manual Pump/Piston - 98 Pumps To Raise, 1/16 Piston Stroke Per Pump |
| Retracted Capacity | 1000 lbs. |
| Retracted Length | 30 1/4" |
| Retracted Max. Hook Height | 89 1/2" |
| Retracted Min. Hook Height | 10" |
| Retracted Usable Reach | 30 1/4" |
| Rotation | 360° |
| Usable Cable Length | 9 ft. |
| Width | 33" |
| Height (cm) | 43.18 |
|---|---|
| Length (cm) | 165.1 |
| Width (cm) | 30.48 |
| HS Code | 8426910000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 60.75 |
| Style | Model | Overall Height | Overall Weight | Color | Material | Height | Depth | Base Length | Base Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

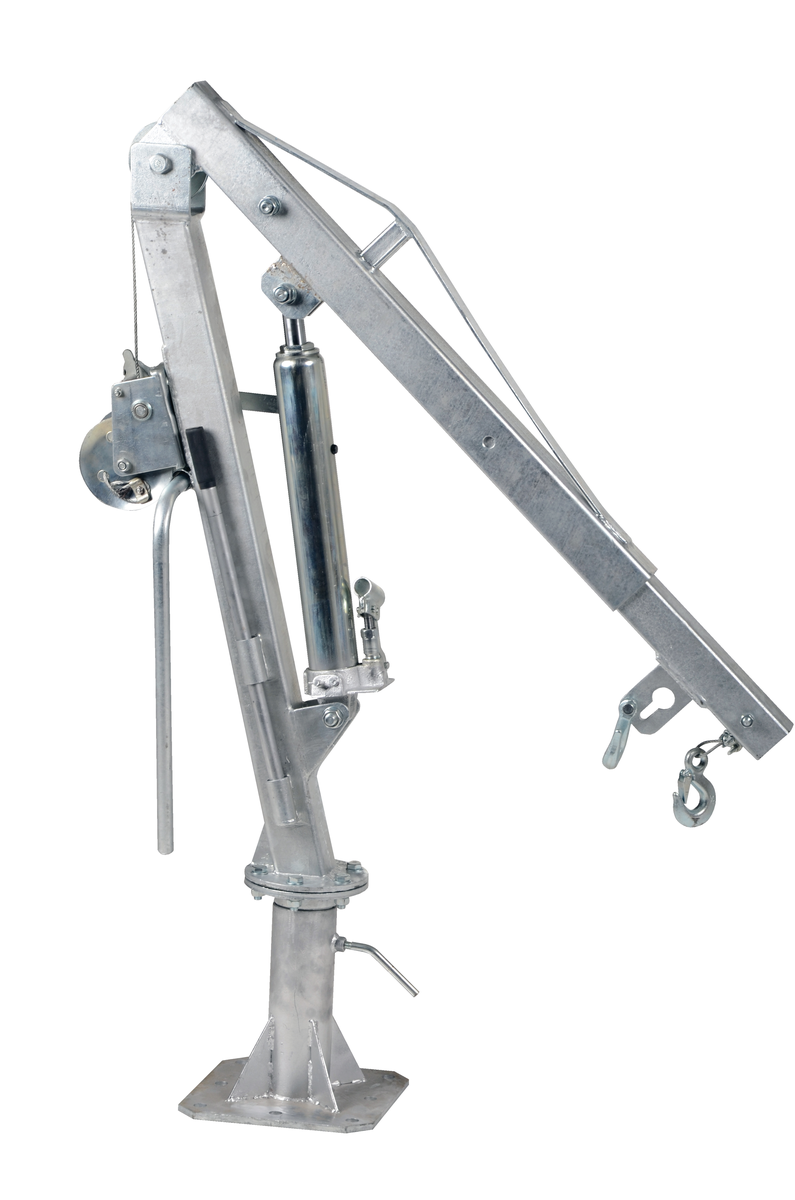

| A | WTJ-2-G | 59 1/2" | 125 lbs. | Gray | Steel | 59 1/2" | 11" | 11" | 11" | $1,170.65 | |

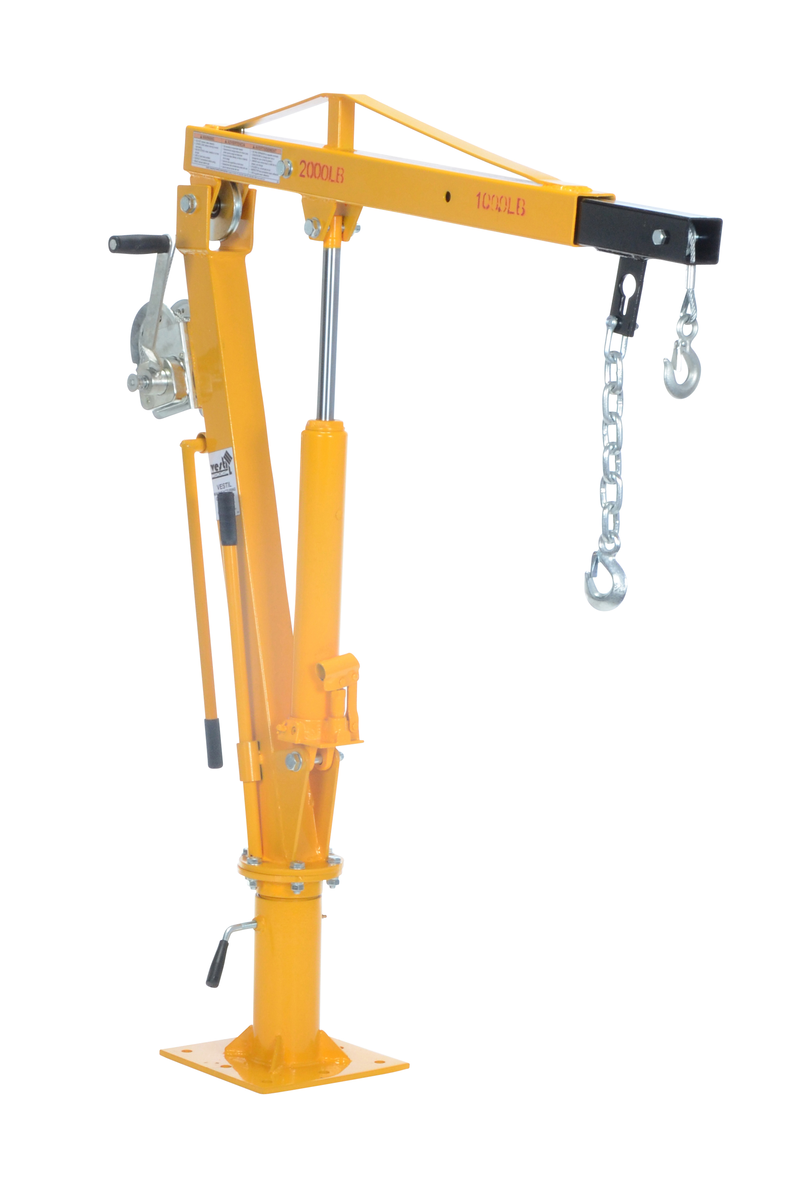

| B | WTJ-4 | 57 1/2" | 145 lbs. | Yellow | Steel | 57 1/2" | 10 3/5" | 11" | 11" | $904.86 | |

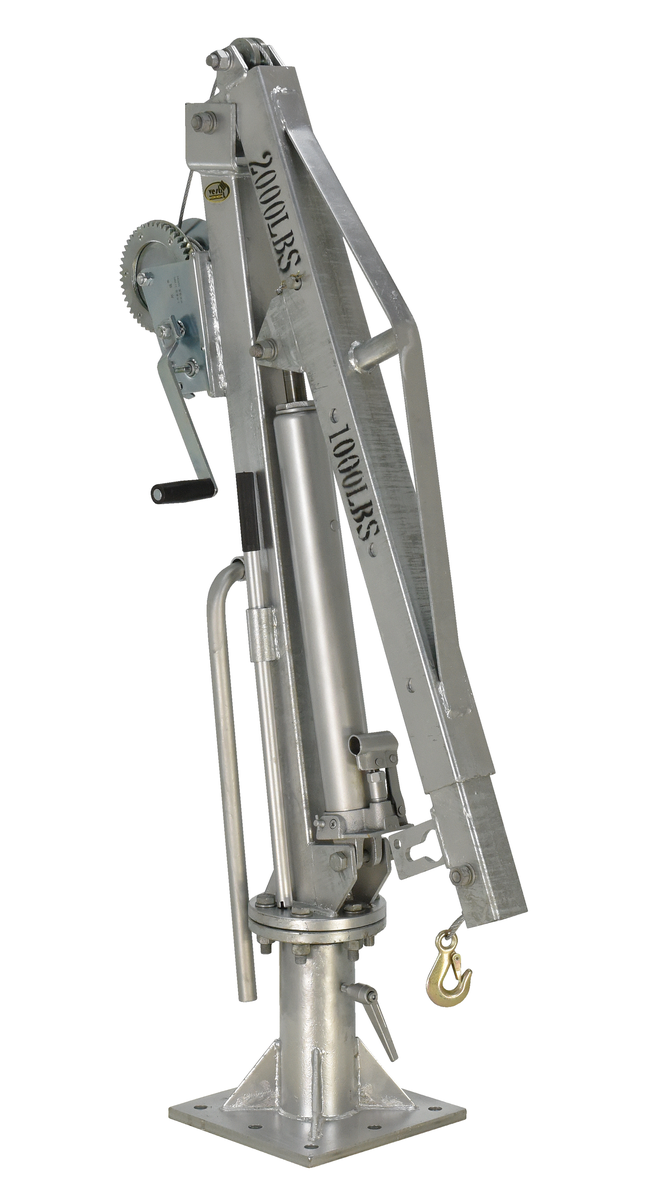

| C | WTJ-4-G | 59 4/5" | 182 lbs. | Gray | Steel | 59 3/4" | 11" | 11" | 11" | $1,479.72 | |

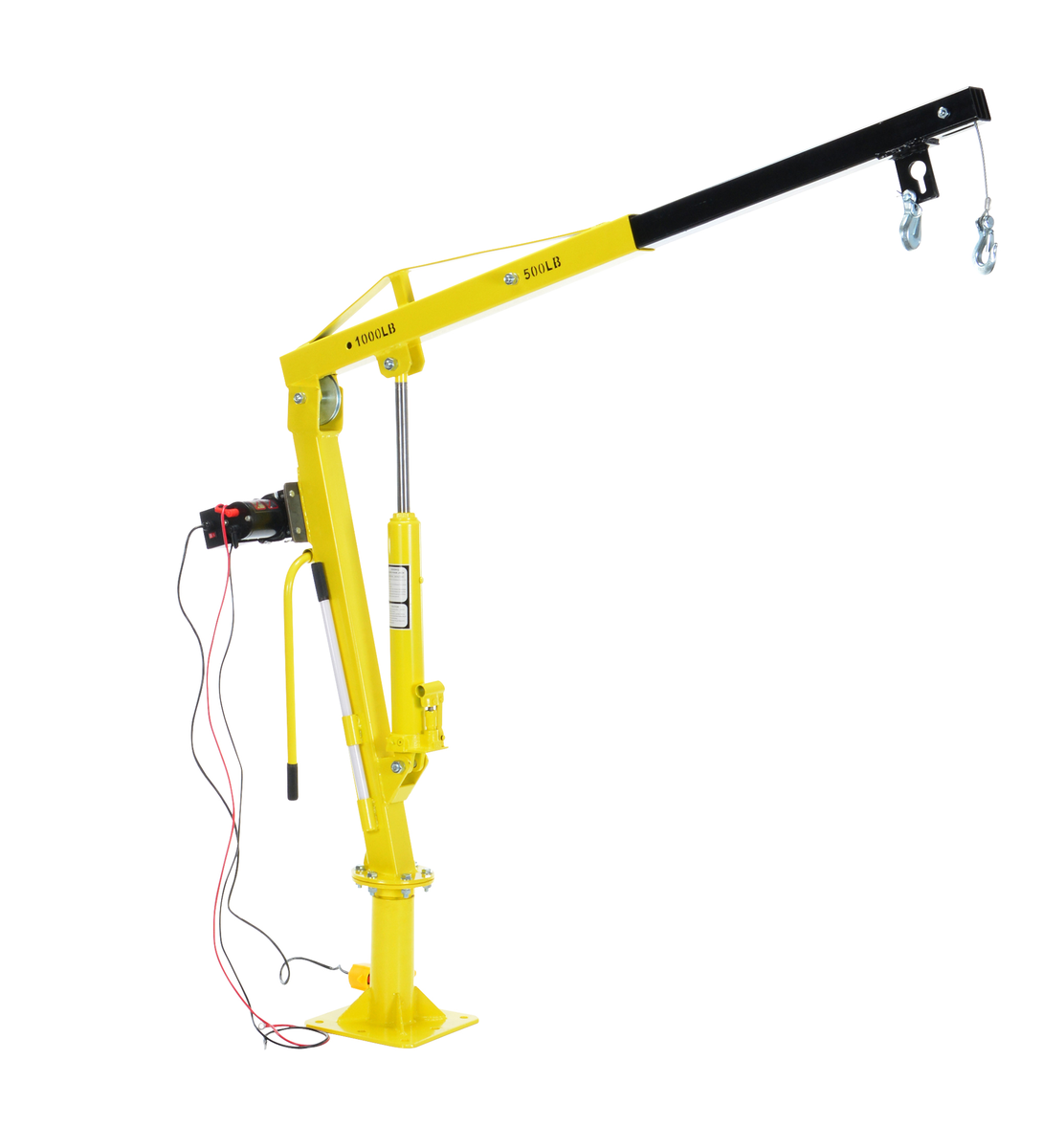

| D | WTJ-2-DC | - | - | Yellow | Steel | 59 1/2" | 11" | 11" | 11" | $1,267.48 | |
| E | WTJ-2-G-DC | - | - | Gray | Steel | 59 1/2" | 11" | 11" | 11" | $1,541.69 | |

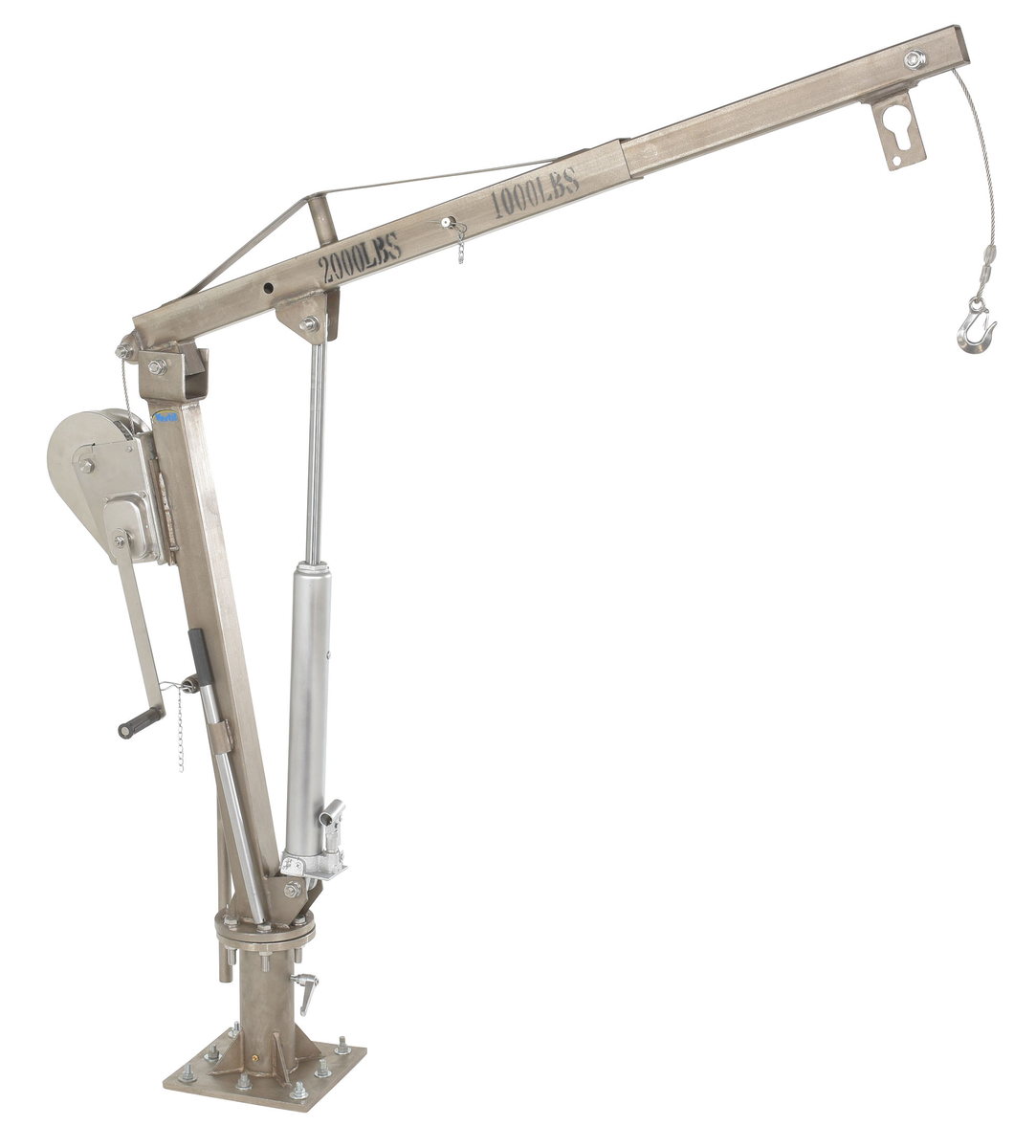

| F | WTJ-2-SS | - | - | Silver | Stainless Steel | 59 1/2" | 11" | 11" | 11" | $3,521.76 | |

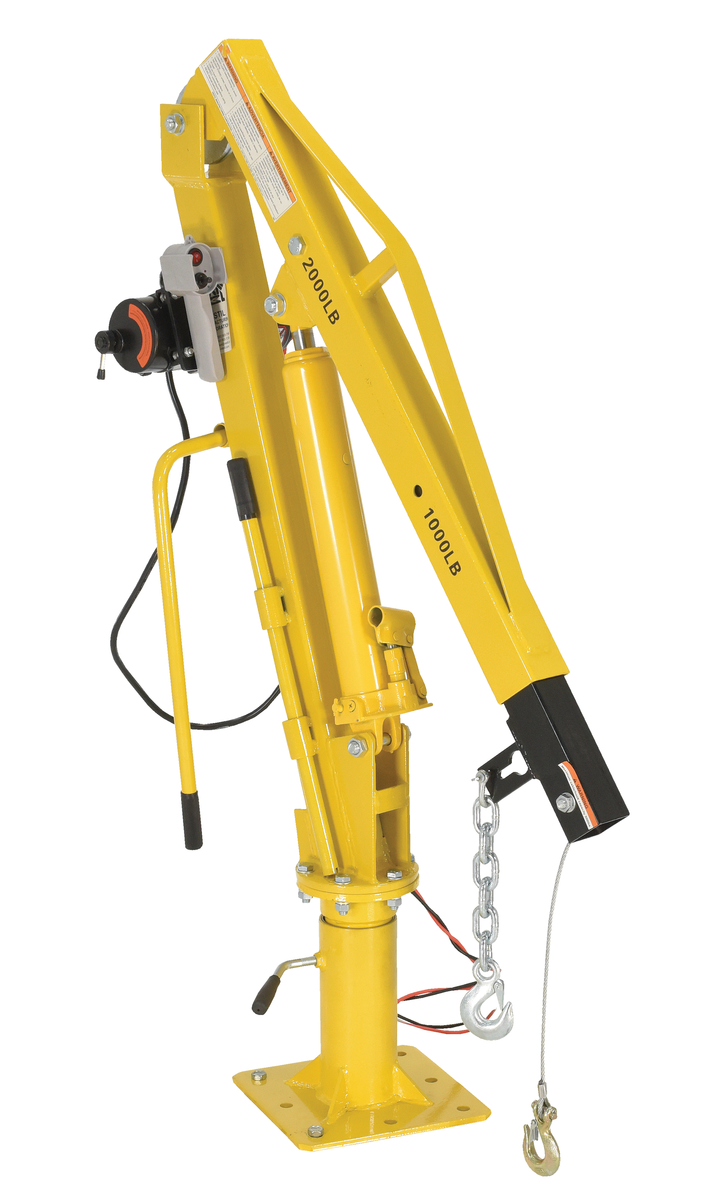

| G | WTJ-4-DC | - | - | Yellow | Steel | 56 1/2" | 20" | 11" | 11" | $2,912.68 |
