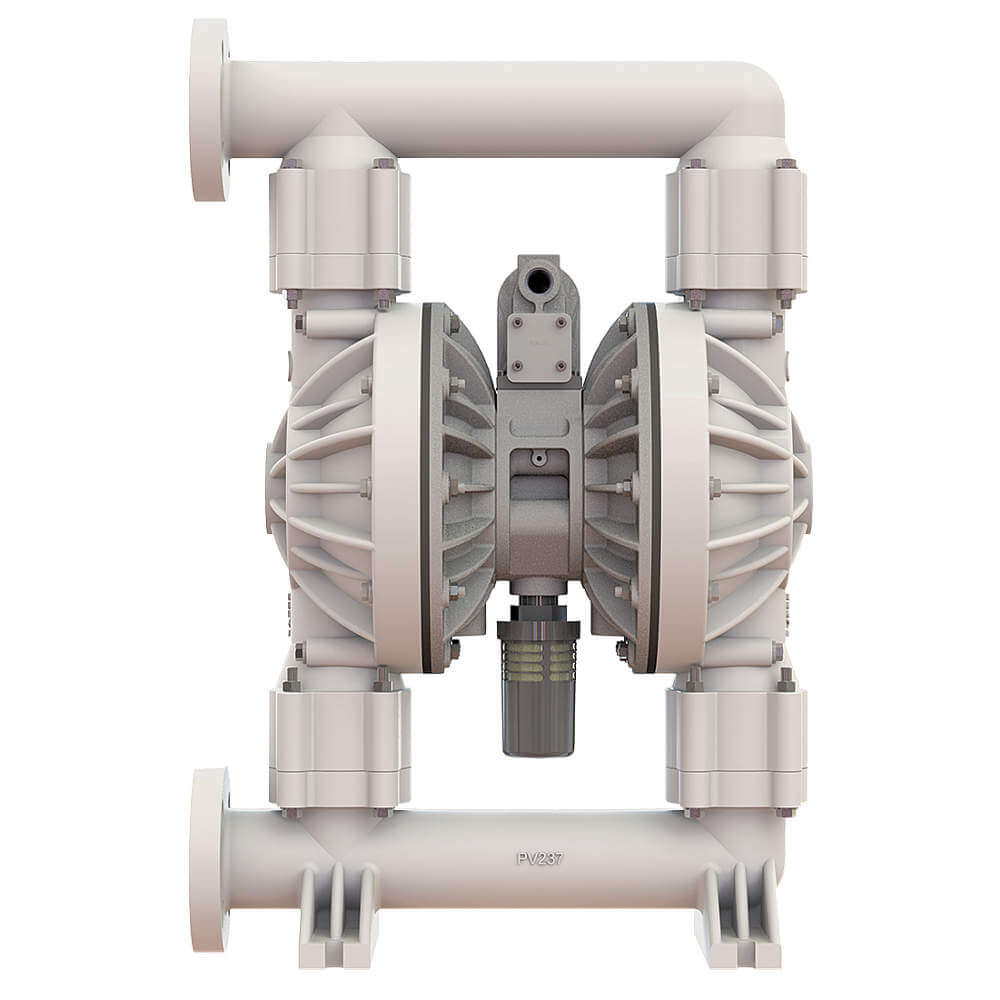

| Item | Double Diaphragm Pump |
|---|---|
| Air Consumption | 120 SCFM |
| Air Consumption (maximum) | 120 SCFM |
| Air Inlet | 1/2" FNPT |
| Air Intake Connection Size | 1/2" |
| Air Intake Pressure (maximum) | 100 psi |
| Ball Material | Santoprene |
| Body Material | Polypropylene |
| Center Section Material | Aluminum |
| Check Seat Material | Polypropylene |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Compatible Chemicals | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water, Sodium Hydroxide 10% |
| Connection Style | Flange |
| Connection Type | NPTF |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | 260 ft. |
| Flow Rate (maximum) | 177 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 145.2 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 86.2 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 108.8 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 123.4 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 138 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Intake Connection | 2" Flange |
| Fluid Outlet Connection | 2" Flange |
| For Use With Potable Systems | No |
| Height | 30 1/4" |
| Housing Material | Polypropylene |
| Inlet Size | 2" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 2" |
| Length | 12 7/64" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
|---|---|
| Manufacturers Warranty Length | 1 yr. |
| Max. Dia. Solids | 1/4" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 177 GPM |
| Max. Ft. | 260 ft. |
| Max. Media Temp. | 175°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 1/4" |
| Max. Temp. | 175°F |
| Media Discharge Connection Size | 2" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Side, Top |
| Media Intake Connection Size | 2" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Side |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Outlet Size | 2" |
| Overall Height | 30.3" |
| Overall Length | 12 3/5" |
| Overall Width | 19.9" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self Priming Dry | 16 ft. |
| Self Priming Wet | 32 ft. |
| Self-priming Dry | 16 ft. |
| Self-priming Wet | 32 ft. |
| Series | E2 Series |
| Series Family | E2 |
| Solid Diameter (maximum) | 1/4" |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Wetted Housing Material | Polypropylene |
| Width | 19 53/64" |
| Standards | CE CERTIFIED, EAC |
| Height (cm) | 35.56 |
|---|---|
| Length (cm) | 55.88 |
| Width (cm) | 81.28 |
| HS Code | 8413500050 |
|---|---|
| Weight (kg) | 30.33 |
| Style | Model | Max. Flow Rate | Diaphragm Material | Housing Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Pump Assembly Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PF20A-AAS-SAA-B | 178 GPM | Santoprene | Aluminum | Santoprene | Stainless Steel | 2" | 225°F | Bolt | $6,439.20 | |
| B | E5AP2R229C | 12 GPM | Buna N | Aluminum | Buna N | Aluminum | 0.06" | 180°F | Bolt | $2,335.21 | |
| B | E5AP6X669C | 12 GPM | Santoprene | Aluminum | Santoprene | Aluminum | 0.06" | 300°F | Bolt | $2,310.28 | |
| B | E5AP5T559C | 12 GPM | PTFE | Aluminum | PTFE | Aluminum | 0.06" | 220°F | Bolt | $2,518.15 | |
| C | E5SP2R229C | 12 GPM | Buna N | Stainless Steel | Buna N | Stainless Steel | 0.06" | 180°F | Bolt | $4,255.85 | |
| C | E5SP6X669C | 12 GPM | Santoprene | Stainless Steel | Santoprene | Santoprene | 0.06" | 300°F | - | $4,163.04 | |
| C | E5SP5T559C | 12 GPM | PTFE | Stainless Steel | PTFE | Stainless Steel | 0.06" | 220°F | Bolt | $4,757.77 |
