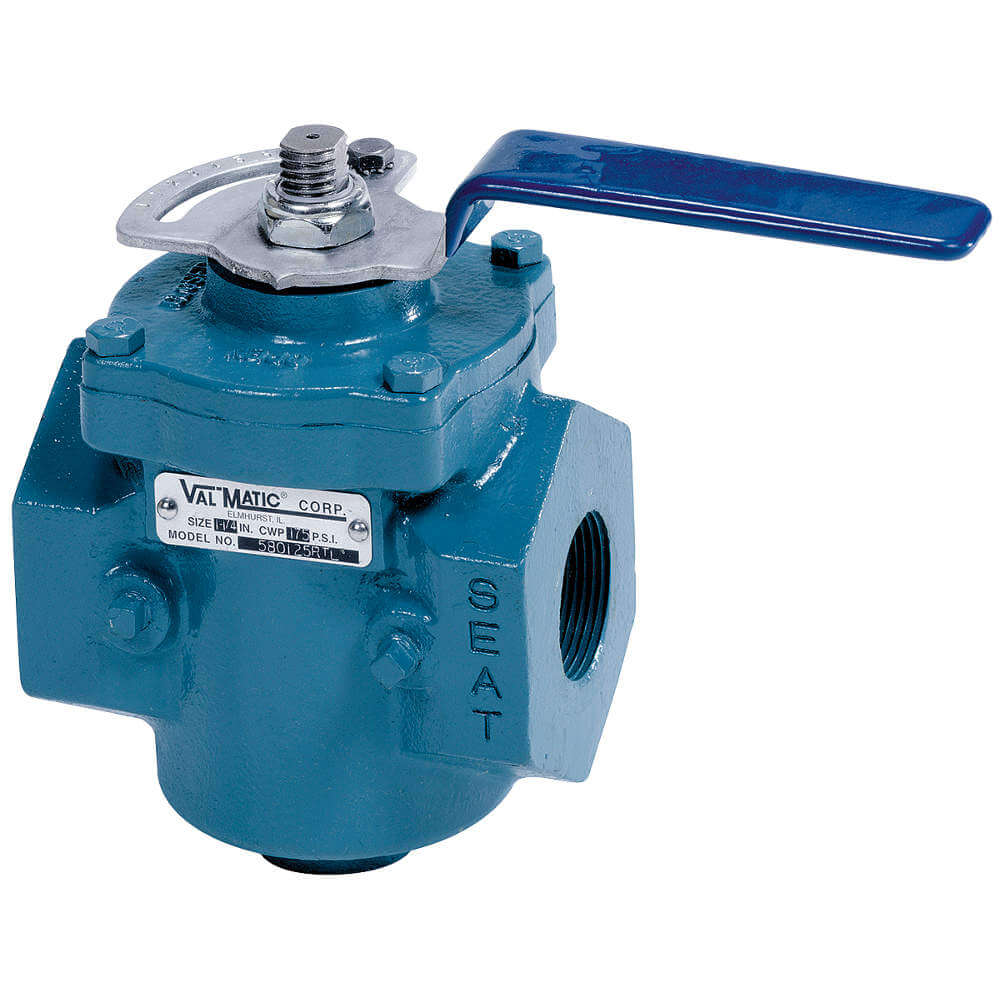

| Item | Plug Valve |
|---|---|
| Body Material | Cast Iron |
| Coefficient Of Volume | 37 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1" |
| Connection Size - Side 2 | 1" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Flow Coefficient | 37 |
| For Media | Wastewater |
| Handle | Lever |
| Handle Length | 4 1/4" |
| Handle Type | Lever |
|---|---|
| Max. Media Temperature | 150°F |
| Max. Pressure | 175 psi |
| Max. Pressure (cwp) | 175 psi |
| Media Temp. Range | -30°F to +150°F |
| Media Temperature Range | -30°F to +150°F |
| Min. Media Temperature | -30°F |
| Overall Height | 5.167" |
| Overall Length | 3.13" |
| Pipe Size | 1" |
| Seal Material | Buna N |
| Standards | Asme |
| Temp. Range | -30°F to +150°F |
| Valve Flow Pattern | 2 Way |
| Height (cm) | 7.37 |
|---|---|
| Length (cm) | 17.53 |
| Width (cm) | 13.97 |
| HS Code | 8481809050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.971 |
| Style | Model | Pipe Size | Connection Type | Handle Type | Overall Height | Overall Length | Coefficient Of Volume | Number Of Bolts | Body Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5800-5RTLK | 1/2" | FNPT x FNPT | Lever | 5.167" | 4.13" | 37 | - | Cast Iron | $457.29 | |
| A | 5800-75RTLK | 3/4" | FNPT x FNPT | Lever | 5.167" | 4.13" | 37 | - | Cast Iron | $403.83 | |
| A | 5801-25RTLK | 1 1/4" | FNPT x FNPT | Lever | 7.13" | - | 37 | - | Cast Iron | $390.82 | |
| A | 5801-5RTLK | 1 1/2" | FNPT x FNPT | Lever | 7.13" | 6 3/4" | 37 | - | Cast Iron | $470.14 | |
| A | 5802RTL | 2" | FNPT | Lever Operated | 7.13" | 5 1/4" | 150 | - | Cast Iron | $575.95 | |

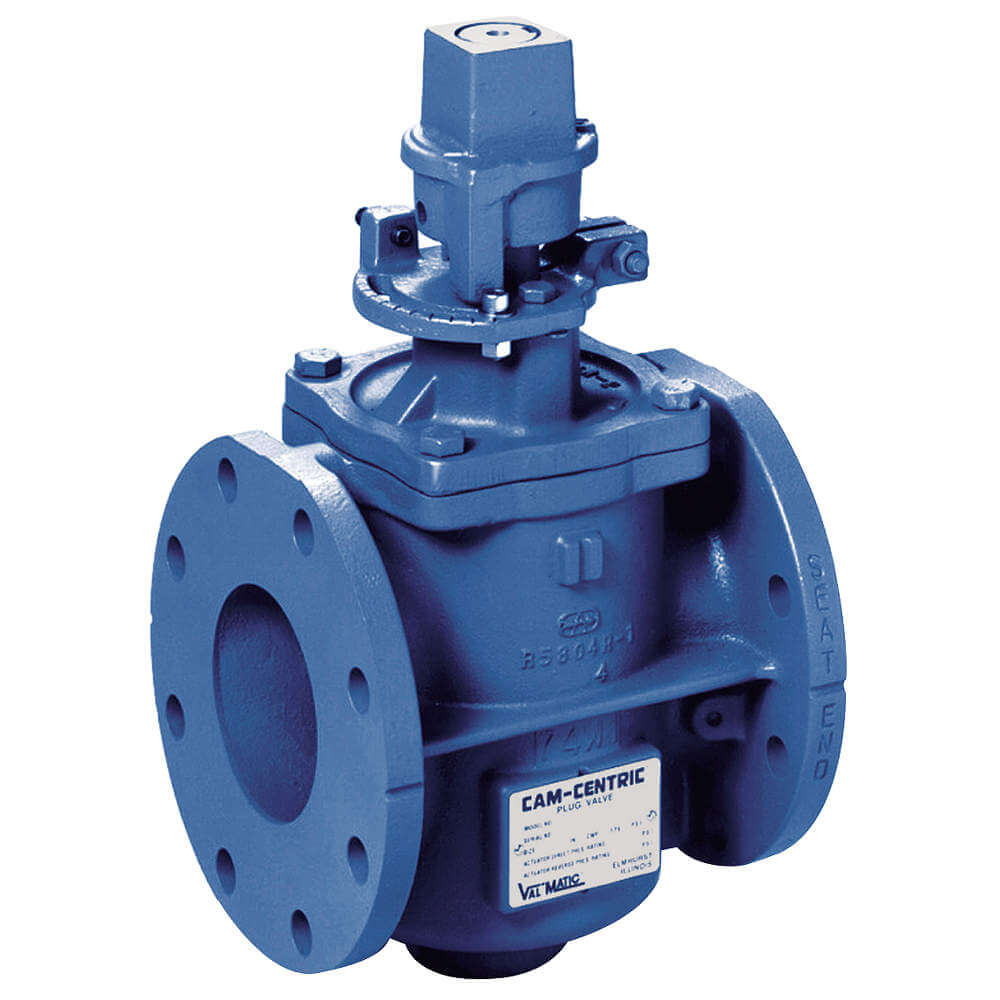

| B | 5825R-CB5Y-N | 2 1/2" | Flange x Flange | Nut | 14 1/8" | 7 1/2" | - | 4 | Cast Iron | $1,038.38 | |
| B | 5804RN | 4" | Flanged | Direct Nut Operated | 16 1/2" | 9" | 570 | 8 | Cast Iron | - | RFQ
|
