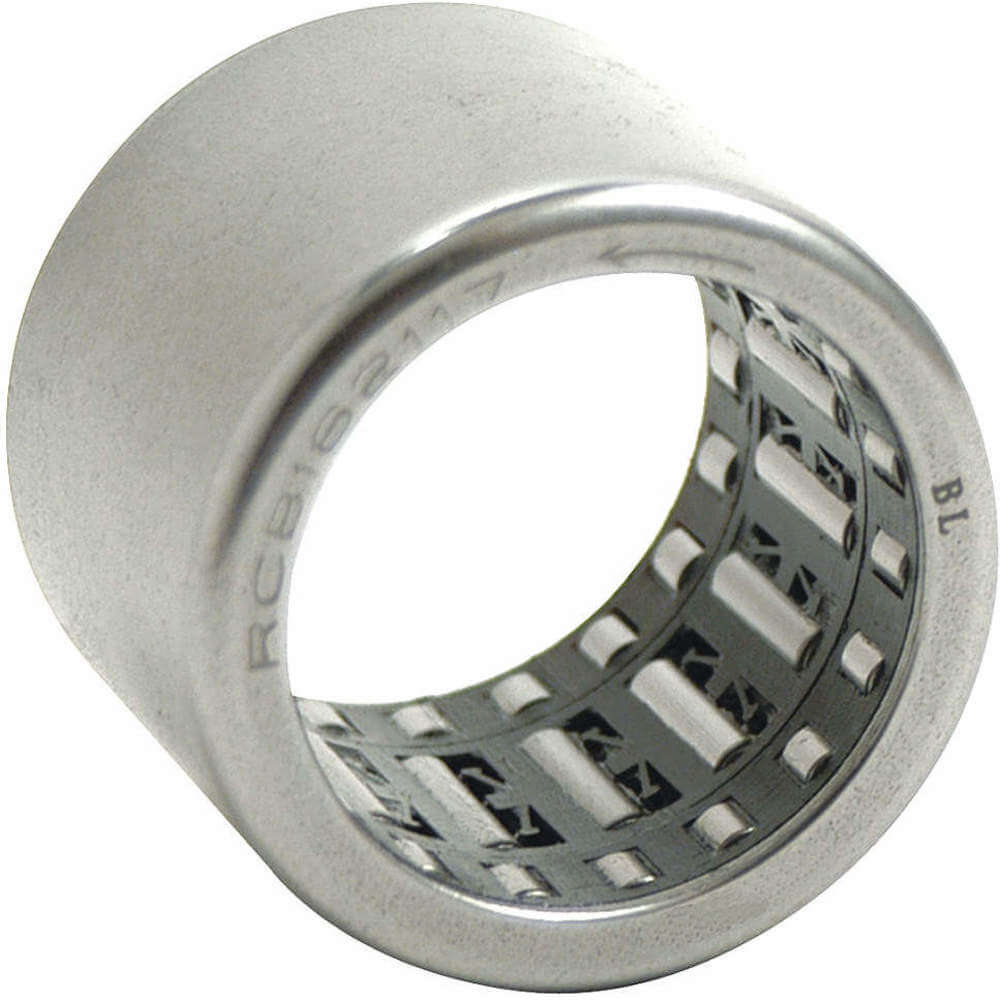

| Item | Needle Roller Clutch Bearing |
|---|---|
| Bearing Design | Rc |
| Bearing Industry Number | 162110 |
| Bore Dia. | 1" |
| Bore Diameter | 1" |
| Cage Material | Steel |
| Cage Material Grade | ANSI 52100 |
| Closure | Open |
| Full Complement | No |
| Lubricant Material | Oil |
| Lubrication Openings | Not Applicale |
| Max. Speed | 8400 RPM |
| Maximum Temperature | 250°F |
| Maximum Torque | 439 lbs.-in. |
|---|---|
| Minimum Temperature | -5°F |
| Needle Bearing Type | Drawn Cup Roller Clutch |
| Number Of Rows | 1 |
| Outside Diameter | 1 5/16" |
| Overall Width | 5/8" |
| Ring Material | Alloy Steel |
| Ring Material Grade | ANSI 52100 |
| Roller Material | Alloy Steel |
| Roller Material Grade | ANSI 52100 |
| Temp. Range | -5° to +250° |
| Type | Drawn Cup |
| Height (cm) | 2.03 |
|---|---|
| Length (cm) | 6.6 |
| Width (cm) | 6.6 |
| Country Of Origin | CN |
|---|---|
| Weight (kg) | 0.0315 |
| Style | Model | Bearing Design | Number Of Rows | Bore Dia. | Outside Dia. | Max. Speed | Dynamic Load Capacity | Static Load Capacity | Dynamic Radial Load Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC040708 | Rc | 1 | 1/4" | 0.438" | 19300 RPM | - | - | - | $19.99 | |
| A | RC061008 | Rc | 1 | 3/8" | 5/8" | 17400 RPM | - | - | - | $22.30 | |
| A | RC081208 | Rc | 1 | 1/2" | - | 16400 RPM | - | - | - | $24.59 | |
| A | RC101410 | Rc | 1 | - | 7/8" | 13500 RPM | - | - | - | $22.37 | |
| A | RC121610 | - | - | 3/4" | - | 11600 RPM | - | - | - | $29.04 | |
| B | RCB061014 | Rcb | 3 | 3/8" | 5/8" | 17400 RPM | 1300 lbf. | 1060 lbf. | 1350 lbf. | $46.09 | |
| B | RCB081214 | Rcb | 3 | 1/2" | - | 16400 RPM | 1540 lbf. | 1410 lbf. | 1600 lbf. | $49.87 |
