| Item | Closed System Oiler |
|---|---|
| Body Material | Aluminum |
| Bowl Material | Polysulfone |
| Capacity | 4 oz. |
| Connection Size | 1" |
| Feed Type | Single |

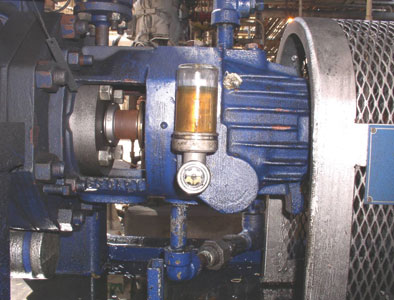

| Function | An Integral Sight Glass On The Oiler Shows The Oil Level In The Housing Instantly |
| Height | 6 1/2" |
| Includes | Viewport, Wire Guard |
| Max. Operating Temp. | 325°F |
| Maximum Temperature Rating | 325°F |
| Mounting Thread Size | 1" |
| Mounting Thread Type | NPT |
| Oil Level Range | 1" |
|---|---|
| Operation Type | Self Leveling |
| Overall Depth | 3 1/2" |
| Overall Height | 3" |
| Overall Width | 2 1/4" |
| Product Type | Constant-Level Oiler |
| Reservoir Capacity | 4 oz. |
| Reservoir Diameter | 2 1/4" |
| Reservoir Material | Glass |
| Thread Size | 1 mm |
| Vent Type | Closed |
| Width | 3 3/8" |
| Height (cm) | 7.62 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 7.62 |
| HS Code | 8413919520 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.3375 |
The holding capacity of this oiler closed system is 4 ounces.

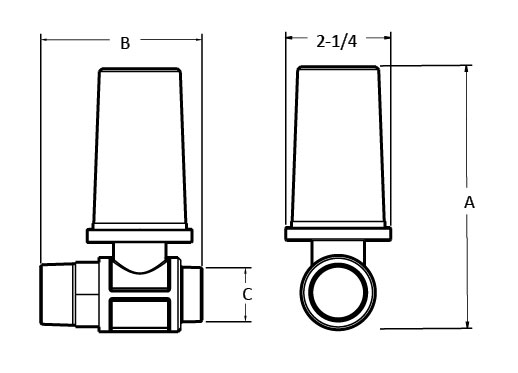

| Style | Model | Height | Reservoir Material | Oil Level Range | Body Material | Max. Operating Temp. | Reservoir Capacity | O-ring | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|

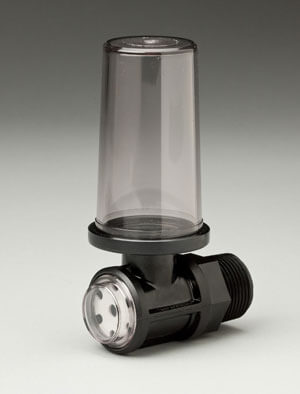

| A | 31804 | 5 3/4" | Plastic | 1" | Polysulfone | 325°F | 4 oz. | Viton | $192.00 | |

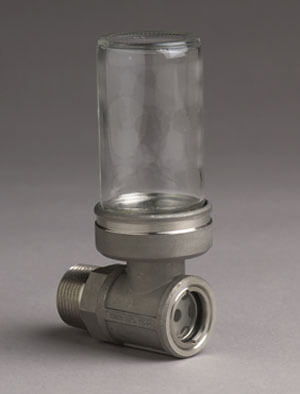

| B | 31821 | 6 1/4" | Glass | 1" | Aluminum | 325°F | - | Viton | $230.33 | |
| B | 31818 | 6 1/4" | Glass | 1/2" | Aluminum | 325°F | - | Viton | $183.33 | |
| B | 31820 | 6 1/4" | Glass | 3/4" | Aluminum | 325°F | 4 oz. | Viton | $416.71 | |
| C | 31824 | 6 1/2" | Glass | 3/4" | Aluminum | 325°F | - | Viton | $192.02 | |
| C | 31828 | 6 1/2" | Glass | 1/2" | Aluminum | 325°F | - | Viton | $158.74 | |
| C | 31833 | 6 1/2" | Glass | 1" | Stainless Steel | 325°F | - | Viton | $406.18 |
