| Item | Constant Level Oiler |
|---|---|
| Capacity | 16 oz. |
| Compatible With Grainger Part Number | 5JG81 |
| Connection Size | 1/4" |
| Feed Type | Single |
| Function | One-Piece Glass Reservoirs Prevent Accidental Overfilling Of The Oil Level Through Leaky Gaskets |
| Includes | Large Surge Chamber |
| Material | Zinc |
| Max. Operating Temp. | 250°F |
| Maximum Temperature Rating | 250°F |
| Mounting Thread Size | 1/4" |
| Mounting Thread Type | NPT |
| O-ring | Viton |
|---|---|
| Oil Level Range | 9/32" to 1" |
| Operation Type | Self Leveling |
| Overall Depth | 4" |
| Overall Height | 6 3/4" |
| Overall Width | 4 1/4" |
| Reservoir Capacity | 16 oz. |
| Reservoir Diameter | 4 1/4" |
| Reservoir Material | Glass |
| Vent Type | Open |
| Width | 4 3/25" |
| Height (cm) | 17.3 |
|---|---|
| Length (cm) | 10.46 |
| Width (cm) | 10.46 |
| HS Code | 8413919520 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.7155 |
It features adjustable level settings, a large surge chamber to avoid overflow and side & bottom ports.

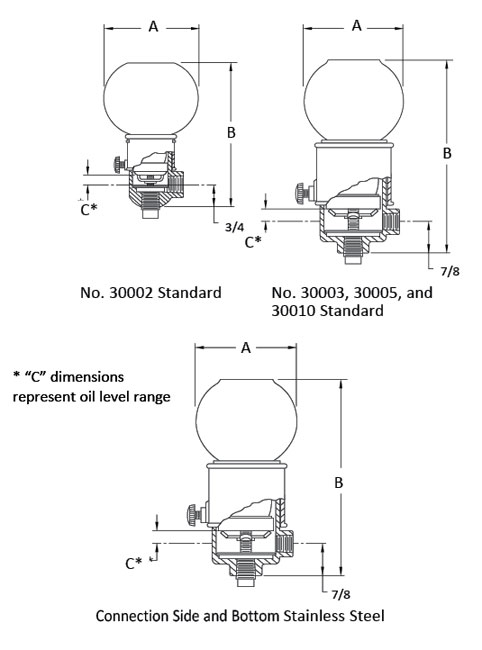

| Style | Model | Max. Operating Temp. | Reservoir Material | Reservoir Capacity | Oil Level Range | Style | Height | Casting | Die Material/type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 30002 | 250°F | Glass | 3 oz. | 11/32" to 9/16" | - | - | - | - | $160.23 | |
| - | 30002M | 250°F | Glass | - | - | - | - | - | - | $55.95 | |
| A | 30003 | 250°F | Glass | 4 oz. | 9/32" to 1" | - | - | - | - | $183.33 | |
| - | 30003M | 250°F | - | - | - | - | - | - | - | $70.98 | |
| A | 30005 | 250°F | Glass | - | 9/32" to 1" | - | - | - | - | $200.44 | |
| - | 30005M | - | - | - | - | - | - | - | - | $77.85 | |
| - | 30010M | 250°F | Glass | - | - | - | - | - | - | $90.54 |
