| Item | Piston Air Compressor/Vacuum Pump |
|---|---|
| Color | Gray |
| Current Rating | 4.7A |
| Cylinder Material | Aluminum |
| Duty Cycle | Continuous |
| Electrical Connection | Cord With Plugs |
| Finish | Painted |
| Free Air Cfm @ 0 In. Hg | 3.15 CFM |
| Free Air Cfm @ 0 Psi | 3.15 CFM |
| Free Air Cfm @ 10 In. Hg | 1.6 CFM |
| Free Air Cfm @ 20 In. Hg | 0.64 CFM |
| Free Air Cfm @ 20 Psi | 2.72 CFM |
| Free Air Flow Rate | 3.15 CFM |
| Frequency | 60 Hz |
| Full Load Amps | 4.7A |
| Hp | 1/3 hp |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Max. Vacuum | 27.6 in. hg |
| Maximum Continuous Pressure | 25 psi |
| Maximum Intermittent Pressure | 25 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Speed | 1750 RPM |
|---|---|
| Minimum Operating Temperature | 50°F |
| Motor Type | High Torque Start Winding, Shaded Pole |
| Number Of Cylinders | 2 |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/3 hp |
| Overall Height | 7.1" |
| Overall Length | 9 5/8" |
| Phase | 1 |
| Piston Type | Wob L |
| Power Cord | Yes |
| Power Source | Corded Electric |
| Pump Type | Wob-L Piston |
| Sound Level | 63 dBA |
| Standards | Csa, Ul |
| Tank Style | Tankless |
| Temp. Range | +104°F to +50°F |
| Thermal Protection | Yes |
| Valve | Corrosion Resistant Sandwich |
| Valve Type | Corrosion Resistant Sandwich |
| Voltage | 115V AC |
Thomas 2688CE44 piston air compressor / vacuum pump is used for compressing air and delivering gases at high pressure in oil refineries, gas pipelines, chemical plants and natural gas processing plants.
| Height (cm) | 18.03 |
|---|---|
| Length (cm) | 24.45 |
| Width (cm) | 17.14 |
| HS Code | 8414100000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 8.1 |
This pump produces a noise of 63 dBA.
The rotary vane compressors have better energy efficiency & cost-effectiveness, more uptime, higher air quality and longer service life than piston compressors.
They are dry-running reciprocating pumps in which the energy from the rotary motor is transformed into the linear motion of the piston inside the pump cylinder.
| Style | Model | Voltage | Free Air Flow Rate | Inlet Size | Max. Vacuum | Overall Length | Number Of Cylinders | Phase | Hp | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

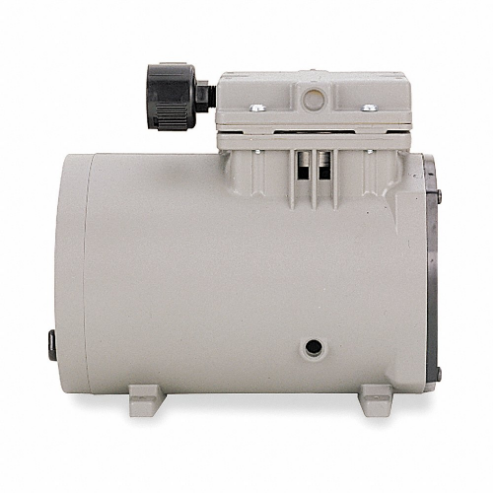

| A | 617CA32 | 115V AC | 1.22 CFM | 1/4" | 26.8 in. hg | 13" | 1 | 1 | 1/8 hp | $575.36 | |
| B | 405ADC38/12 | 12V DC | 0.27 CFM | 1/8" | - | 7 1/2" | 1 | Single | 1/10 hp | $709.86 | |
| A | 617CA22 | 115V AC | 0.13 CFM | 1/4" | 25.6 in. hg | 8" | 1 | 1 | 1/8 hp | $624.24 | |

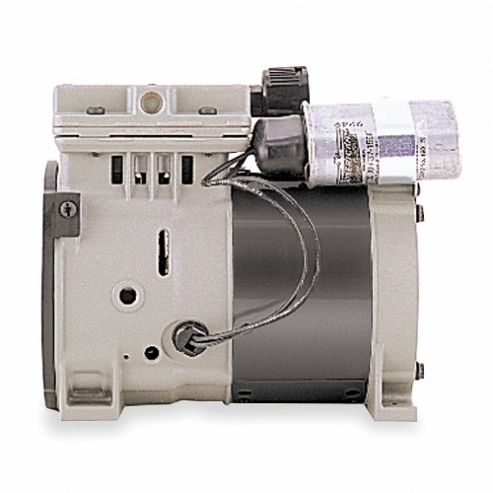

| C | 688CE44 | 115V AC | 1.6 CFM | 1/4" | 27.6 in. hg | 8" | 1 | 1 | 1/3 hp | $653.16 | |
| D | 2688VE44 | - | - | - | - | 9 5/8" | 2 | 1 | 1/3 hp | $796.99 |
