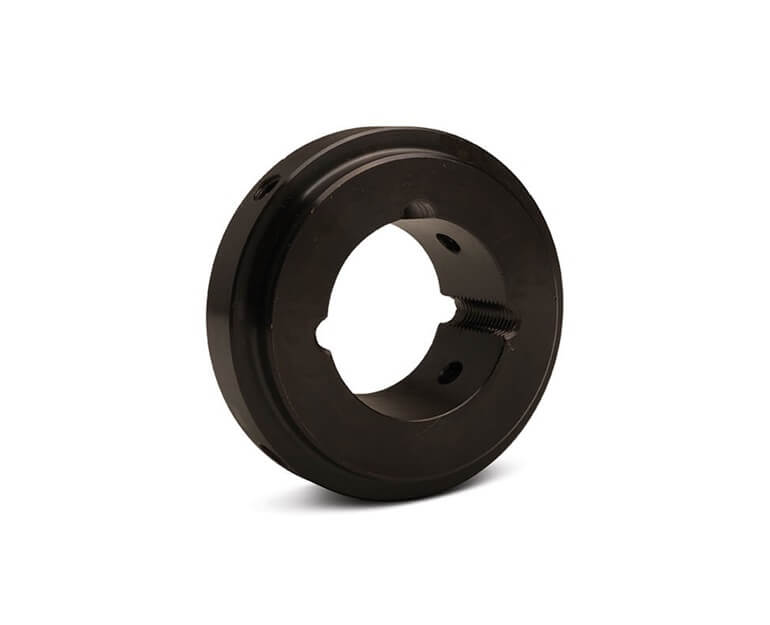

| Item | Taper Lock Flexible Shaft Coupling Hub |
|---|---|
| Angular Misalignment | 3° |
| Application | Blowers, Compressors, Fans, Generators, Including Pumps, Motors, Numerous Industrial Applications |
| Bore Type | Taper Locking Bushing |
| Coupling Length Standard Assembly | 5.88" |
| Coupling Size | WE40 |
| Element Type | Tire Coupling Taper Lock Hub |
| Features | Absorbs Shock, Easy To Install, No Lubrication Required, Same Hubs Used On Both Spacer And Standard Elements |
| For Bushing Size | TL2517 |
| For Misalignment Type | Angular, Parallel |
| For Shaft Type | Round |
| Horsepower @ 100 Rpm | 8.9 hp |
| Horsepower @ Rpm | 101 Hp @ 1160 Rpm, 153 Hp @1750 Rpm, 305 Hp @ 3500 Rpm |
| Hp Rating @ 100 Rpm | 8 9/10 hp |
| Hp Rating @ 1800 Rpm | 157 hp |
| Hp Rating @ 3600 Rpm | 301 hp |
| Hub Dia. | 6.63" |
| Hub Diameter | 6.63" |
| Hub Material | Steel |
| Hub Outside Dia. | 6.63" |
| Hub Width | 1 3/4" |
|---|---|
| Keyway Size | None |
| Length Through Bore | 1 3/4" |
| Material | Low Carbon Steel |
| Max. Angular Misalignment | 3° |
| Max. Parallel Misalignment | 3/32" |
| Max. Speed | 5000 RPM |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -40°F |
| Operating Temp. | -40°F to +200°F |
| Operating Temp. Range | -40°F to +200°F |
| Outside Dia. | 6.63" |
| Parallel Misalignment | 3/32" |
| Product Type | Dura-Flex Taper-Lock Hub |
| Rated Torque | 5500 lbs.-in. |
| Resistance Properties | Chemical Resistant |
| Setscrew Location | One Over Keyway |
| System Of Measurement | Imperial |
| Torsional Stiffness | 65200 lbs.-in./deg. |
| Width | 1 3/4" |
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 20.32 |
| HS Code | 8483608000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 5.13 |
| Style | Model | Max. Speed | Max. Parallel Misalignment | Hub Material | Rated Torque | Coupling Size | Length Through Bore | Outside Dia. | Torsional Stiffness | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | WE3HTL | 7500 RPM | 1/16" | Steel | 365 lbs.-in. | WE3 | 7/8" | 2 8/25" | 4710 lbs.-in./deg. | - | RFQ
|
| A | WE4HTL | 7500 RPM | 1/16" | Steel | 550 lbs.-in. | WE4 | 7/8" | 2 3/5" | 5370 lbs.-in./deg. | $188.77 | |
| A | WE5HTL | 7500 RPM | 1/16" | - | - | - | 22/25" | 3.13" | - | $211.03 | |
| A | WE20HTL | 6600 RPM | 3/32" | Steel | 2300 lbs.-in. | WE20 | 1" | 4 12/25" | 27600 lbs.-in./deg. | $327.17 | |
| A | WE30HTL | 5800 RPM | 3/32" | Steel | 3650 lbs.-in. | WE30 | - | 5.42" | 42200 lbs.-in./deg. | $444.49 | |
| A | WE50HTL | 4200 RPM | 3/32" | Steel | 7650 lbs.-in. | WE50 | 1 3/4" | 8.13" | 123000 lbs.-in./deg. | $675.66 | |
| A | WE60HTL | 3800 RPM | 1/8" | Steel | 12500 lbs.-in. | WE60 | 2" | 8 3/4" | 167000 lbs.-in./deg. | $1,007.25 |
