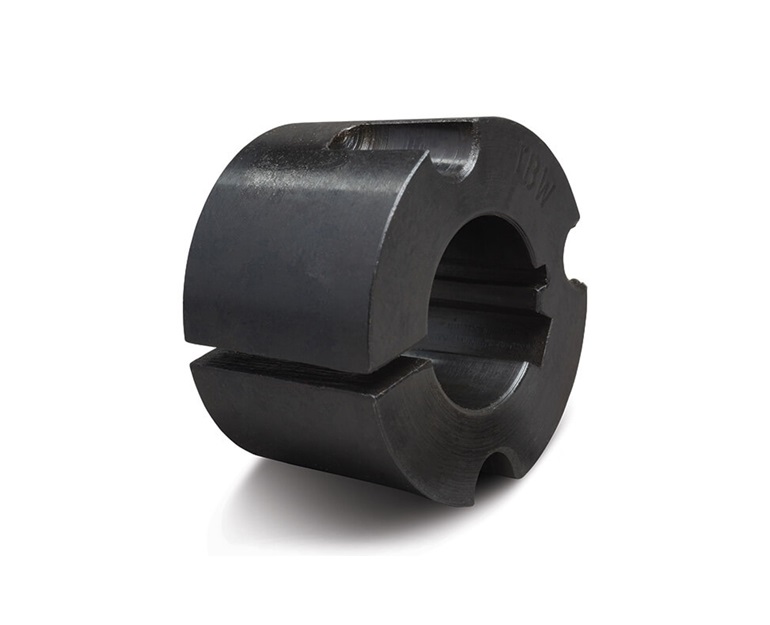

| Item | Taper-Lock Bushing |
|---|---|
| Bolt Circle Dia. | 3 1/4" |
| Bore Dia. | 1-5/8" |
| Bore Size | 1 mm |
| Bore Type | Finished with Keyway |
| Bushing | Standard |
| Bushing Type | Standard |
| Coupling Size | 2525 |
| Dimension A | 3.37" |
| Dimension B | 2 1/2" |
| Hardware | Inch Series |
| Key Size | 3/8" x 3/16" |
|---|---|
| Keyway | Standard |
| Material | Steel |
| Max. Torque | 11300 lb-in |
| Mounting Type | Conventional |
| Product Type | Taper Lock Bushing |
| Size | 2525 |
| Torque | 11300 lbs.-in. |
| Type | Standard |
| Weight | 3.9 Lbs. |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
|---|---|
| Weight (kg) | 1.755 |
