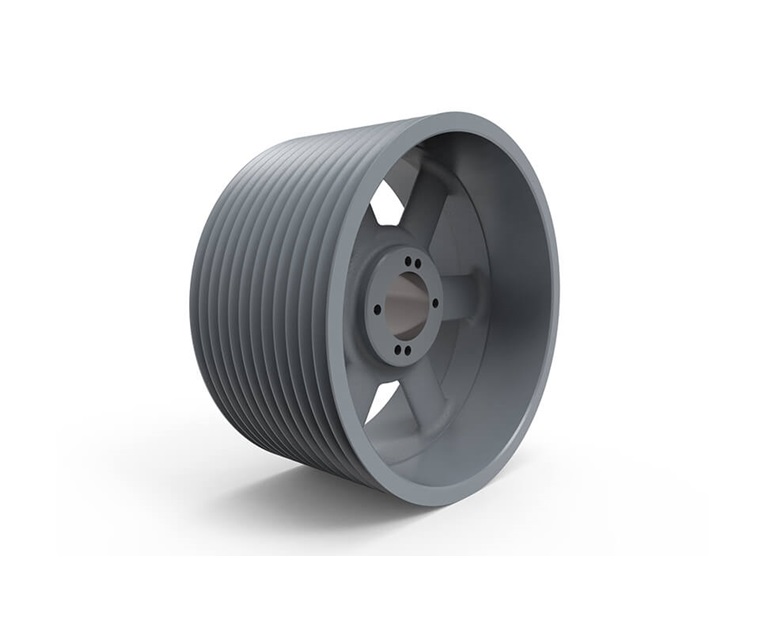

| Item | V-Belt Sheave |
|---|---|
| Belt Type | D |
| Bore Type | Quick Disconnect Bushing |
| Bushing | N |
| Datum Dia. | 33" |
| Dimension E | 2 14/25" |
| Dimension L | 8.13" |
| Dimension M | 6 22/25" |
| Face Width | 17 14/25" |
| Hub Location | 4 1/4" |
|---|---|
| Inside Dia. | 30 1/2" |
| Material | Cast Iron |
| Max. Rpm | 750 RPM |
| No. Of Grooves | 12 |
| Outside Dia. | 33 3/5" |
| Overall Length | 17.562" |
| Pitch Dia. | 33 3/5" |
| Product Type | Classical |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 85.34 |
| Width (cm) | 85.34 |
|---|---|
| Weight (kg) | 291.15 |
