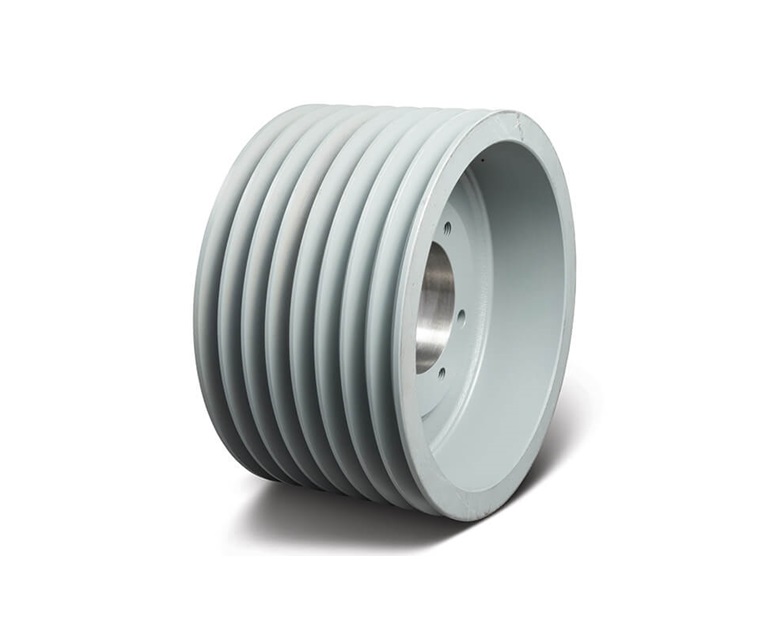

| Item | V-Belt Sheave |
|---|---|
| Belt Type | D |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Datum Dia. | 16" |
| Dimension E | 2.31" |
| Dimension L | 4 1/2" |
| Dimension M | 5" |
| Face Width | 11.81" |
| Hub Location | 3 14/25" |
|---|---|
| Inside Dia. | 13 3/4" |
| Material | Cast Iron |
| Max. Rpm | 1510 RPM |
| No. Of Grooves | 8 |
| Overall Length | 11.812" |
| Pitch Dia. | 16 3/5" |
| Product Type | Classical |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 42.16 |
| Width (cm) | 42.16 |
|---|---|
| Weight (kg) | 74.835 |
