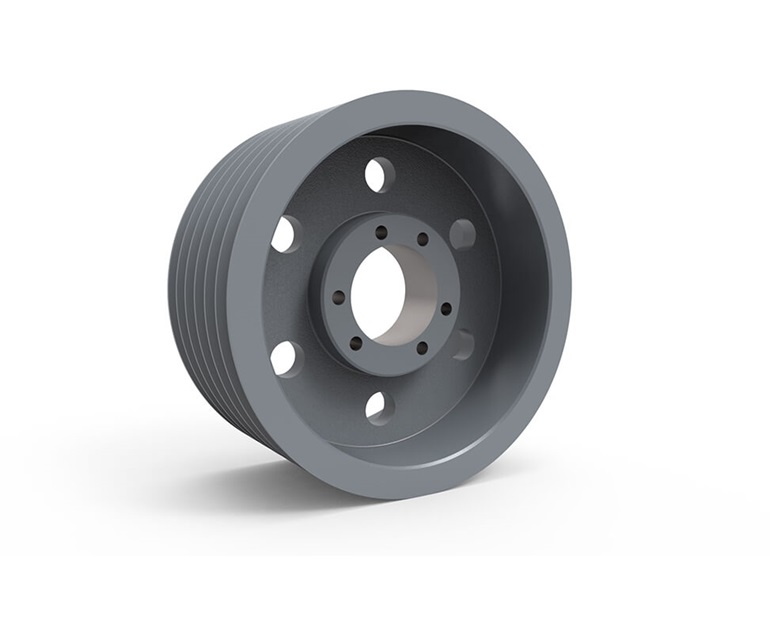

| Item | V-Belt Sheave |
|---|---|
| Belt Type | D |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Datum Dia. | 18" |
| Dimension E | 2.06" |
| Dimension L | 4 1/2" |
| Dimension M | 2.38" |
| Face Width | 8.94" |
| Hub Location | 3.31" |
|---|---|
| Inside Dia. | 15.63" |
| Material | Cast Iron |
| Max. Rpm | 1350 RPM |
| No. Of Grooves | 6 |
| Outside Dia. | 18 3/5" |
| Overall Length | 8.938" |
| Pitch Dia. | 18 3/5" |
| Product Type | Classical |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 47.24 |
| Width (cm) | 47.24 |
|---|---|
| Weight (kg) | 74.205 |
