| Item | Hard Start Kit |
|---|---|
| Application | Air Conditioners, Compressors, Low Voltage Situations, Refrigeration |
| Capacitor Microfarad Rating | 189 mF to 227 mF |
| Contact Rating | 35A |
| Contact Rating (amps) | 35A |
| Control Voltage | 208-277V AC |
| Current Rating | 35A |
| Depth | 2 1/2" |
| For Compressor Type | Capacitor Start/Induction Run, Permanent Split Capacitor, Scroll |
| For Cooling Capacity Range | 1 ton. to 3 ton. |
| Frequency | 60 Hz |
| Height | 8" |
| Hp | 1 hp to 3 hp |
| Includes | Ez Clamp Bracket |
| Instant Restart | Instant Restart |
| Max. Hp Rating | 3 hp |
| Maximum Capacitor Voltage | 330V AC |
|---|---|
| Maximum Operating Temperature | 185°F |
| Minimum Horsepower Rating | 1 hp |
| Minimum Operating Temperature | -67°F |
| Number Of Wires | 2 |
| Overall Depth | 2 1/2" |
| Overall Height | 8" |
| Overall Width | 2 1/2" |
| Phase | 1 |
| Product Type | Hard Start |
| Relay Type | Mechanical Potential Relay |
| Torque Increase Percentage | Not Applicable |
| Voltage | 208-265V |
| Voltage Sensing | Voltage Sensing |
| Width | 2 1/2" |
| Standards | NATE, UL LISTED |
| Height (cm) | 6.6 |
|---|---|
| Length (cm) | 21.34 |
| Width (cm) | 13.46 |
| HS Code | 8536504000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.504 |
| Style | Model | Height | Voltage | Depth | Control Voltage | Current Rating | Overall Depth | Overall Height | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

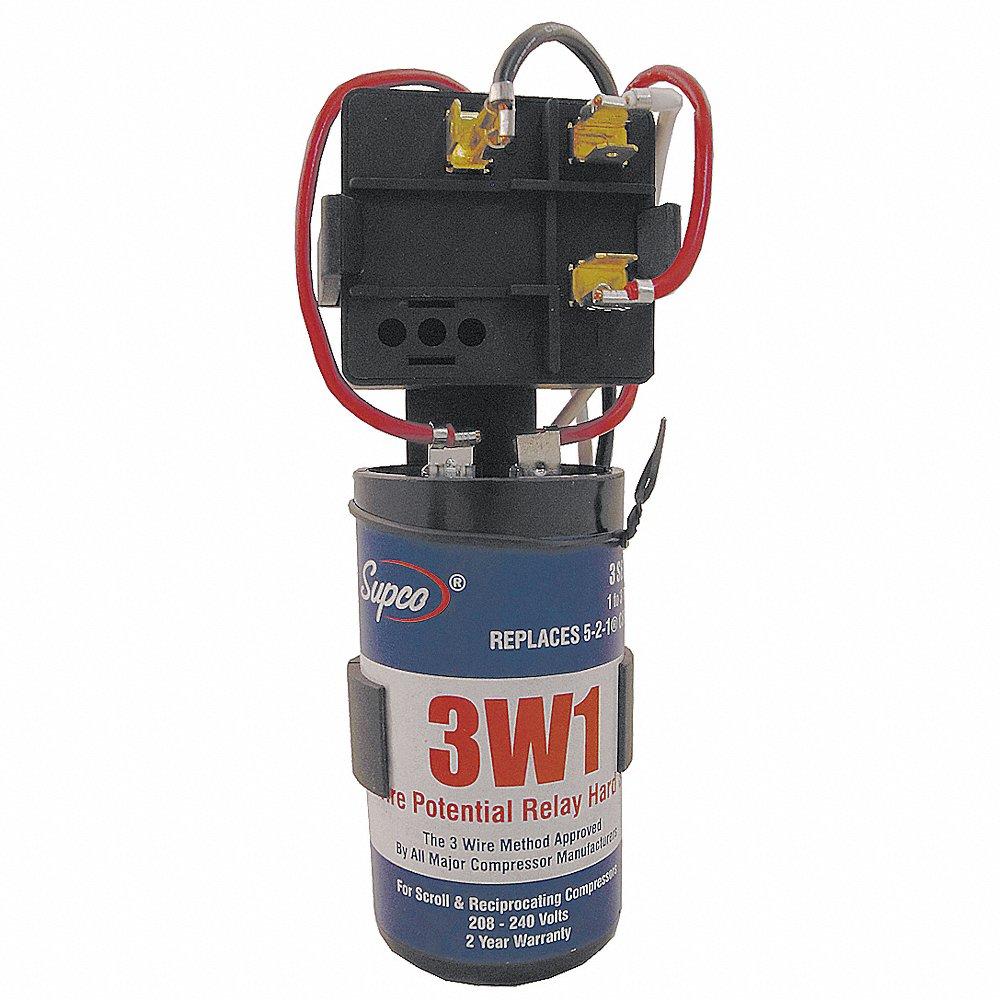

| A | 3W1 | 2 1/4" | - | 6 1/4" | 208-277V AC | 35A | 6 1/4" | 2 1/4" | 2 1/4" | $57.90 | |

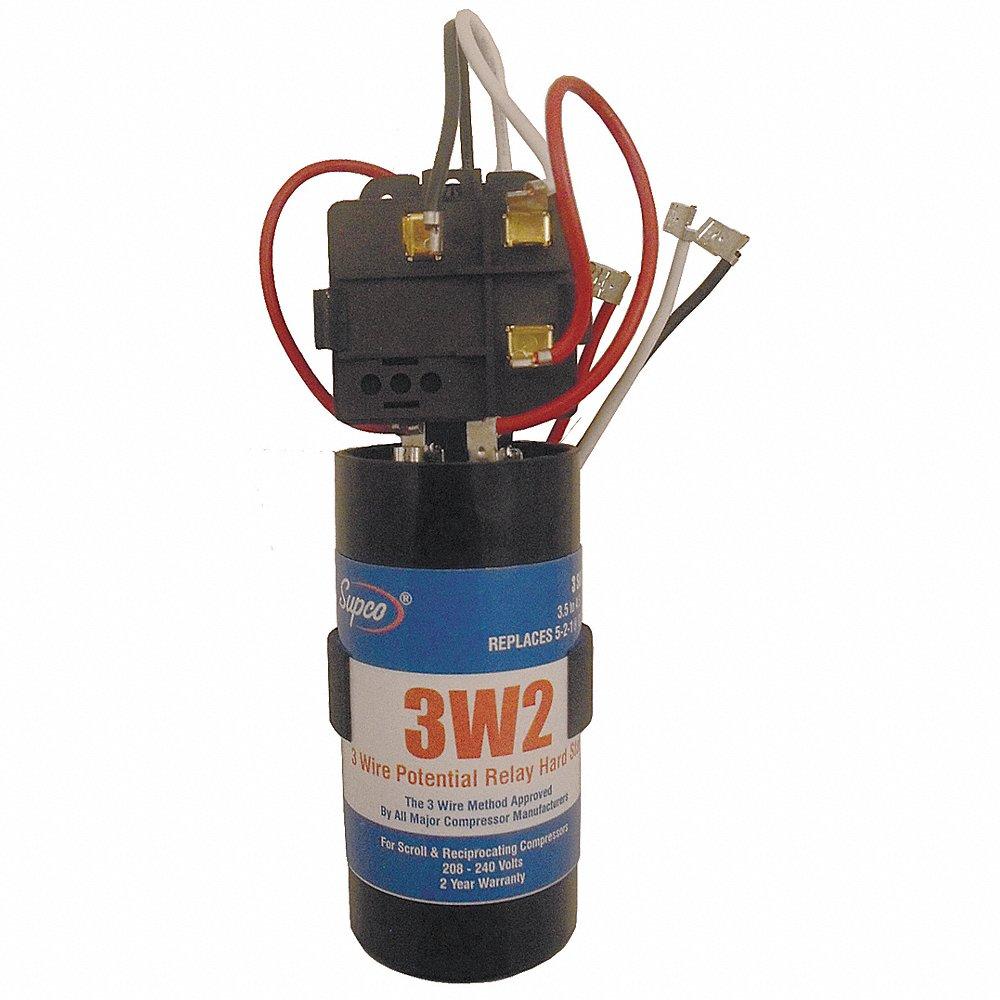

| B | 3W2 | 2 1/4" | - | 7 1/4" | 208-277V AC | 35A | 7 1/4" | 2 1/4" | 2 1/4" | $71.41 | |

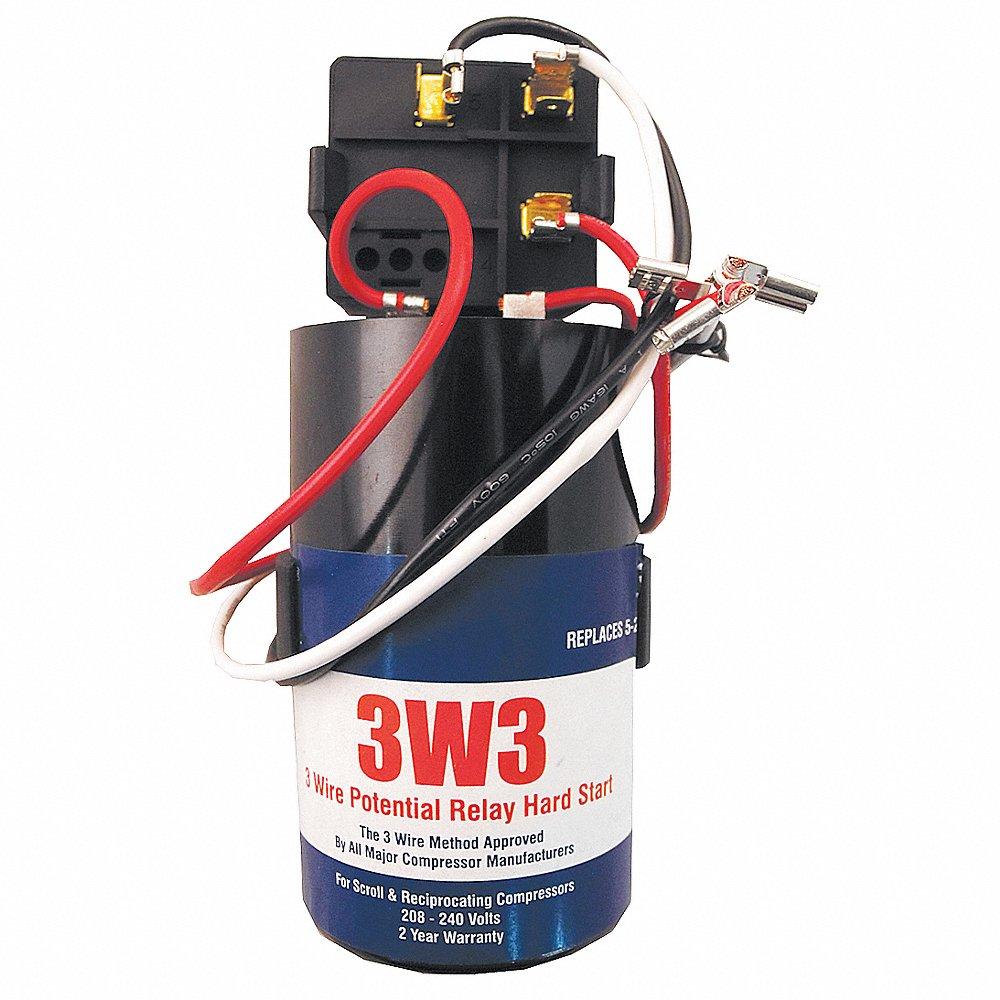

| C | 3W3 | 2 3/4" | - | 7 1/4" | 208-277V AC | 35A | 7 1/4" | 2 3/4" | 2 1/2" | $83.04 | |

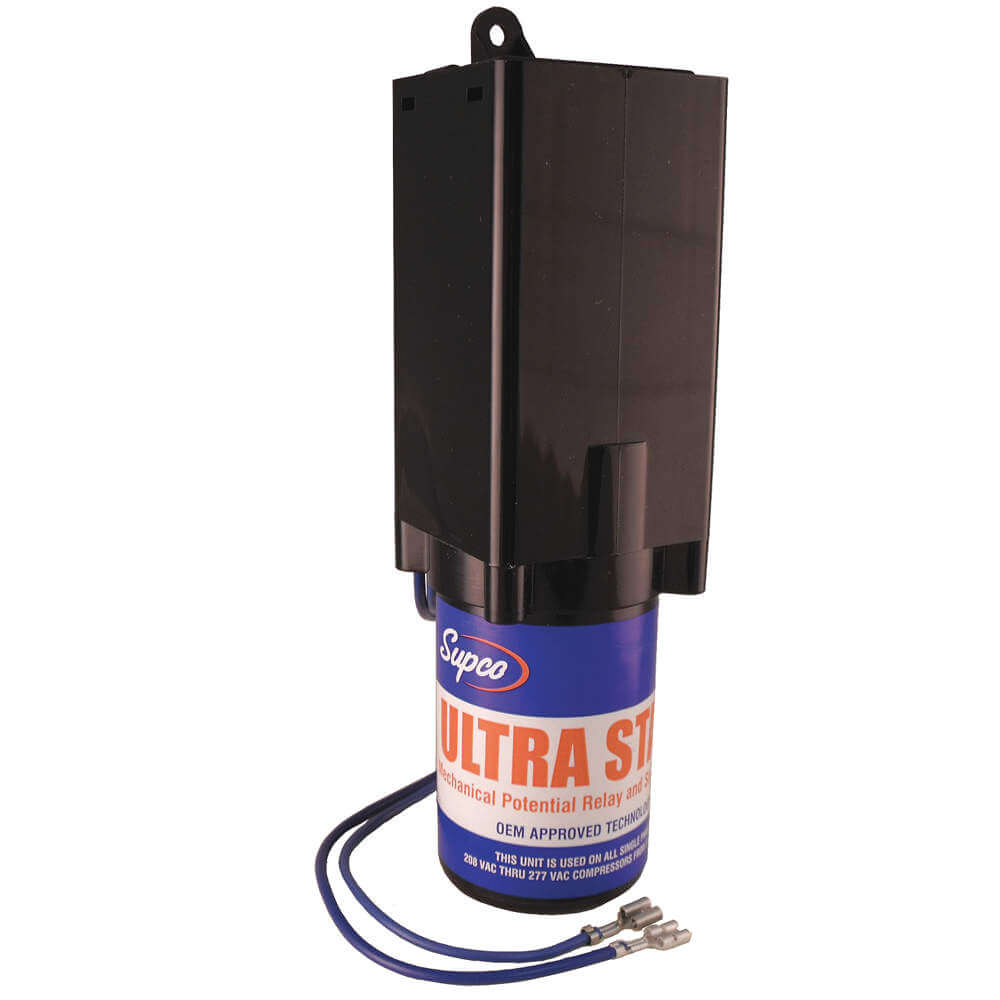

| D | MPR1 | 8" | 208-265V | 2 1/2" | 208-277V AC | 35A | 2 1/2" | 8" | 2 1/2" | $86.97 | |

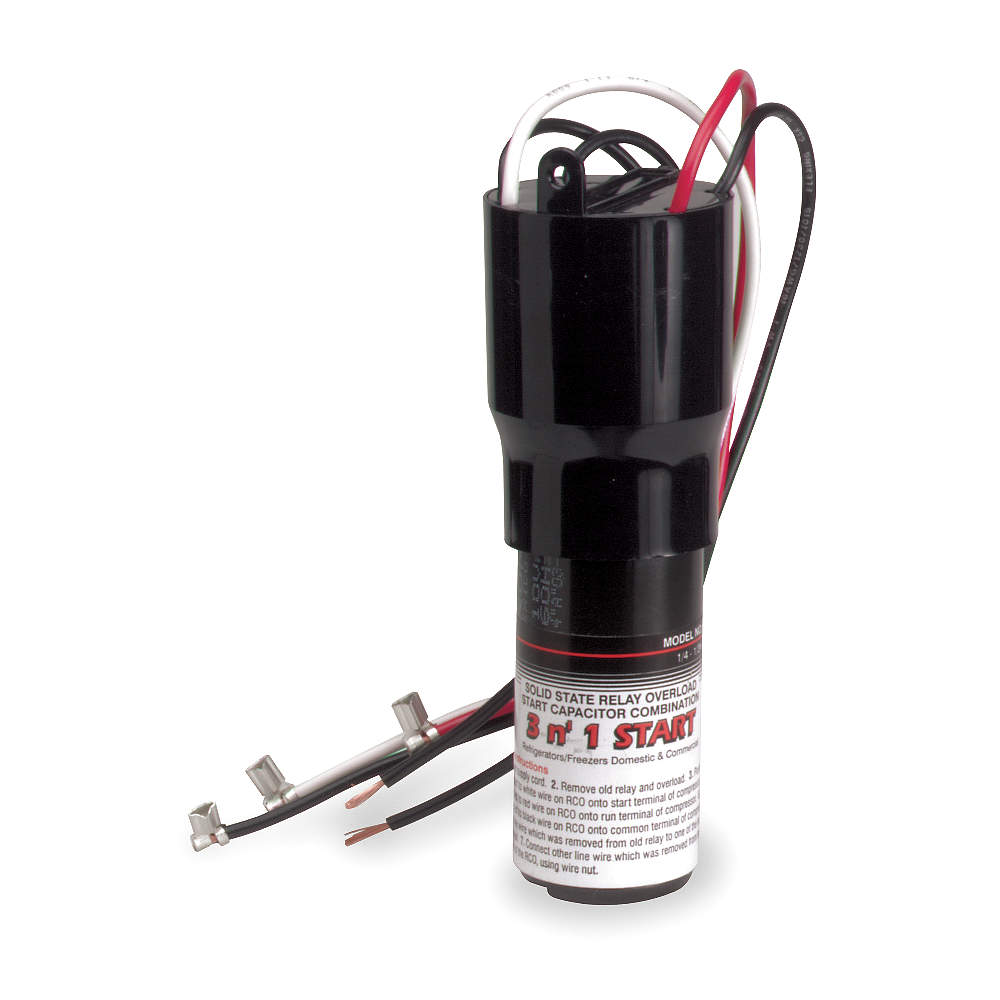

| E | RCO410 | - | - | - | 115V AC | 6.8A | 2" | 5 3/4" | 2" | $29.71 | |

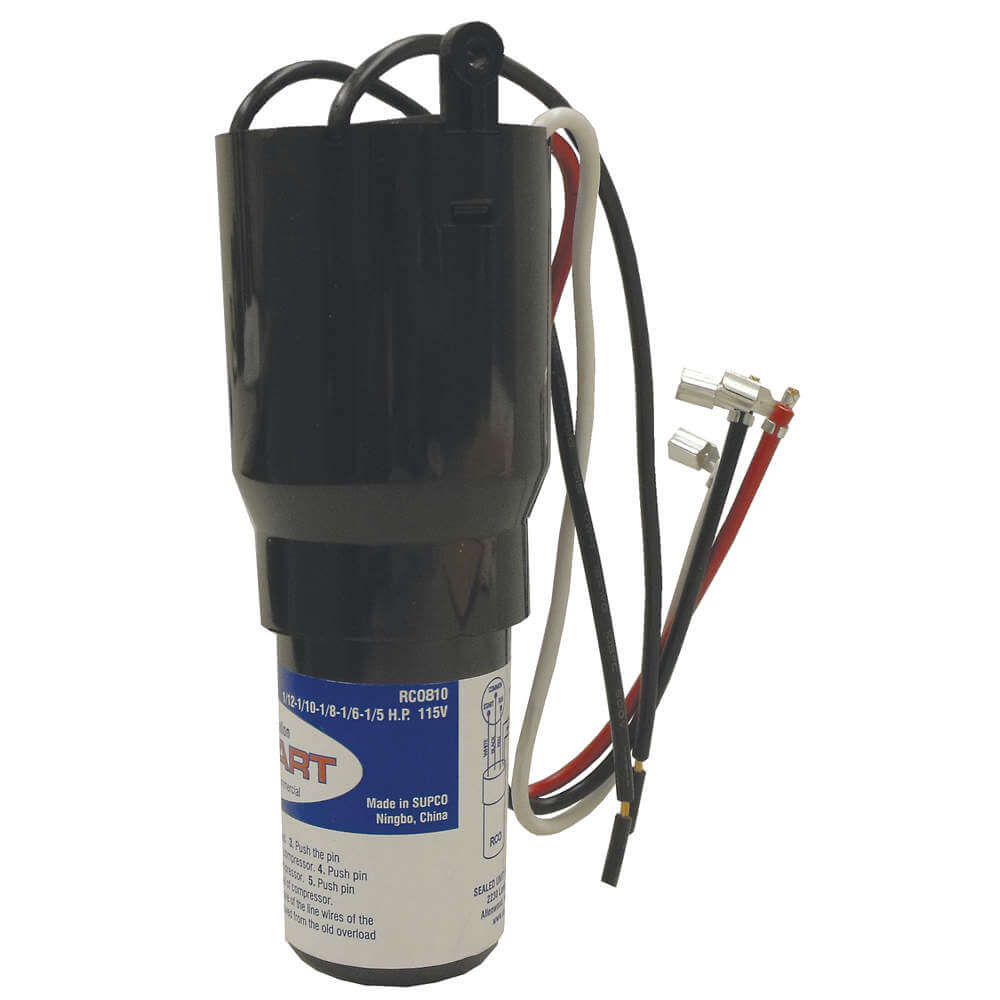

| F | RCO810 | 4 1/2" | - | - | 115V AC | 4.1A | 2" | 5 1/4" | 2" | $32.64 | |

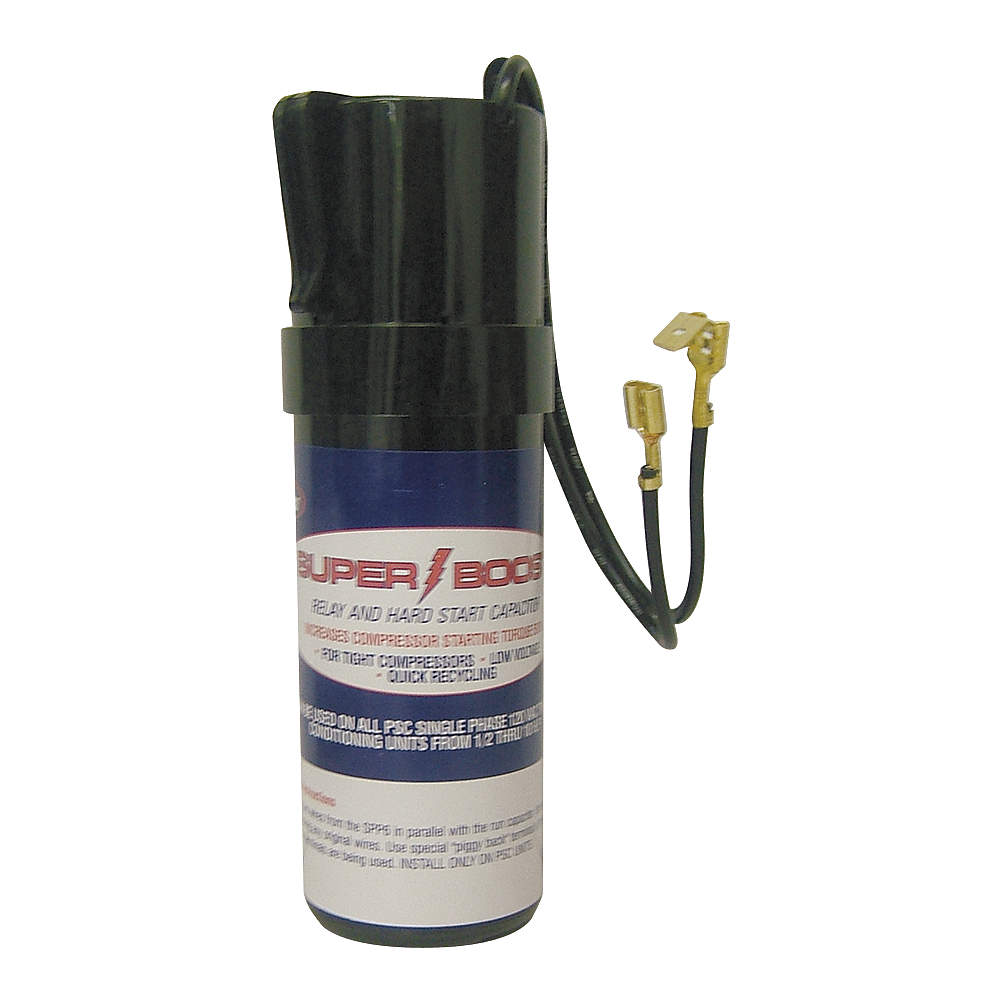

| G | SPP5 | - | 90-277V | - | 90-277V AC | Not Applicable | 1 3/4" | 5 1/4" | 1 3/4" | $22.44 |
