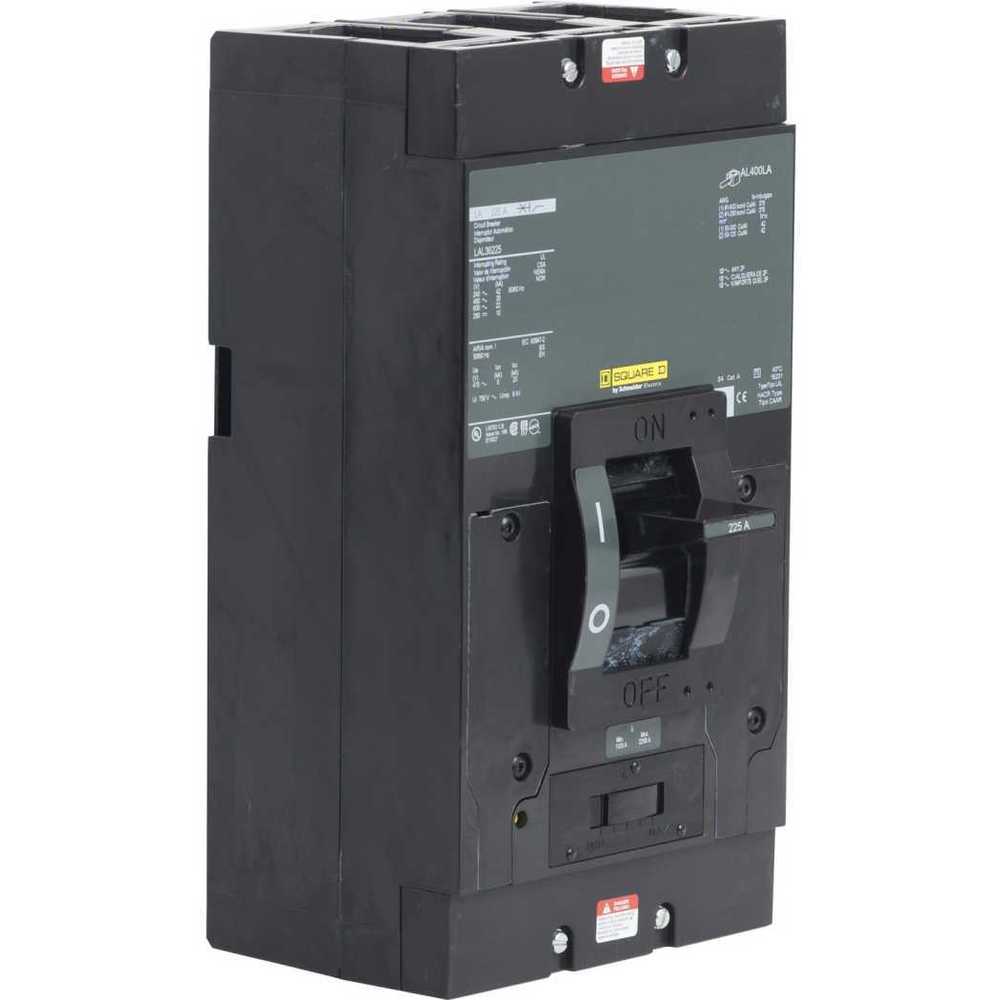

SQUARE D LAL36225 Circuit Breaker 225a 3p 600vac Lug

Item: AG7CXC

Model: LAL36225

Cross Ref: 5B914

In Stock : 7 Units.

Get it by Wednesday, Feb 11

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Amps

We deliver to your doorstep under DAP terms. Customs clearance is for your account

~~$4,008.06~~

10% off

$3,607.25 /unit (ex. VAT)

Add To Cart

Request Quote

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item	Circuit Breaker
Ac Voltage Rating	600V AC
Amps	225A
Circuit Breaker Actuator	Toggle
Circuit Breaker Application	HACR Rated
Circuit Breaker Mounting Style	Free Standing
Circuit Breaker Type	Standard
Component Type	Circuit Breaker
Dc Voltage	250V DC
Dc Voltage Rating	250V AC
Depth	5.84"
Electrical Connection	Lugs, Load, Line
For Use With	Busway Plug In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
Frame Size	400A, LA
Height	11"
High Amp Trip Setting	2250A
Instantaneous Trip	Adjustable
Line Rated Amps	225A
Low Amp Trip Setting	1125A
Magnetic Hold Amps	1125A

Magnetic Tripping Amps	2250A
Max. Air Rating	42 kA At 240V AC
Max. Wire Size	250 mcm, 600 mcm
Min. Wire Size	1/0 AWG
Mounting	Free Standing
Mounting Mode	Unit Mount
No. Of Poles	3
Number Of Poles	3
Phase	3
Phase Connection	ABC
Returnability	Yes
Series	Lal Series
Standards	Csa, Iec, Ul Listed
Terminal Connection	Lug
Terminal Connection Type	Lug
Tightening Torque	115.06 lbf.in. @ 0.07 sq. in. to 0.5 sq. in. @ 1 AWG to 600 kcmil, 115.06 lbf.in. @ 0.07 sq. in. to 0.2 sq. in. @ 1 AWG to 250 kcmil
Trip Type	Thermal Magnetic
Trip Unit Technology	Thermal-Magnetic
Width	6"
Warranty	18 Months
