| Item | Relay |
|---|---|
| Base Type | Square |
| Breaking Capacity | 3A 120V AC Inductive Control Circuit UL 508, 1.5A 240V AC Inductive Control Circuit UL 508, 10A 277V AC Resistive Control Circuit UL 508, 10A 30V DC Resistive Control Circuit UL 508 |
| Coil Voltage | 120V AC |
| Contact Composition | DPDT |
| Contact Form | DPDT |
| Contact Material | Silver Alloy , Silver Tin Oxide |
| Contact Rating | 12A @ 240V AC/28V DC |
| Control Circuit Voltage | 120V AC |
| Depth | 1.4" |
| Drop Out Operating Time | 20 ms |
| For Use With | 8501NR82 |
| Green Certification Or Other Recognition | RoHS.png |
| Height | 2 1/4" |
| Hp @ 120v | 1/3 hp |
| Hp Rating | 1 hp @ 277V AC, 1/3 hp@ 120V AC |
| Max. Switching Voltage | 300V AC/30V DC |
|---|---|
| Mounting | Side Flange |
| Mounting Type | Socket |
| Number Of Pins | 8 |
| Operational Ambient Temp. Range | -40°C to +55°C |
| Pick Up Operating Time | 20 ms |
| Pilot Light | No Indicator |
| Push To Test | No |
| Relay Type | General Purpose |
| Resistive Contact Amp Rating | 10A |
| Returnability | Yes |
| Shape Of Pins | Spade |
| Socket Code | C |
| Status Indicator | No |
| Width | 1.37" |
| Height (cm) | 4.32 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 4.32 |
| HS Code | 8536490080 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.0855 |
| Style | Model | Contact Form | Height | Coil Voltage | Status Indicator | Number Of Pins | Base Type | Push To Test | Resistive Contact Amp Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 8501KPDR12V51 | DPDT | 2.66" | 12V DC | Mechanical Flag | 8 | Octal | No | 10A | $108.27 | |
| B | 8501KPR12V24 | DPDT | 2.66" | 240V AC | Mechanical Flag | 8 | Octal | No | 10A | $112.09 | |
| C | 8501KUDR12V53 | DPDT | 2 1/4" | 24V DC | Mechanical Flag | 8 | Square | No | 10A | $58.99 | |
| C | 8501KUDR13V53 | 3PDT | 2 1/4" | 24V DC | Mechanical Flag | 11 | Square | No | 10A @ 250V AC, 10A @ 28V DC | $67.46 | |
| C | 8501KUR13V14 | 3PDT | 2 1/4" | 24V AC | Mechanical Flag | 11 | Square | No | 10A @ 250V AC, 10A @ 28V DC | $67.46 | |

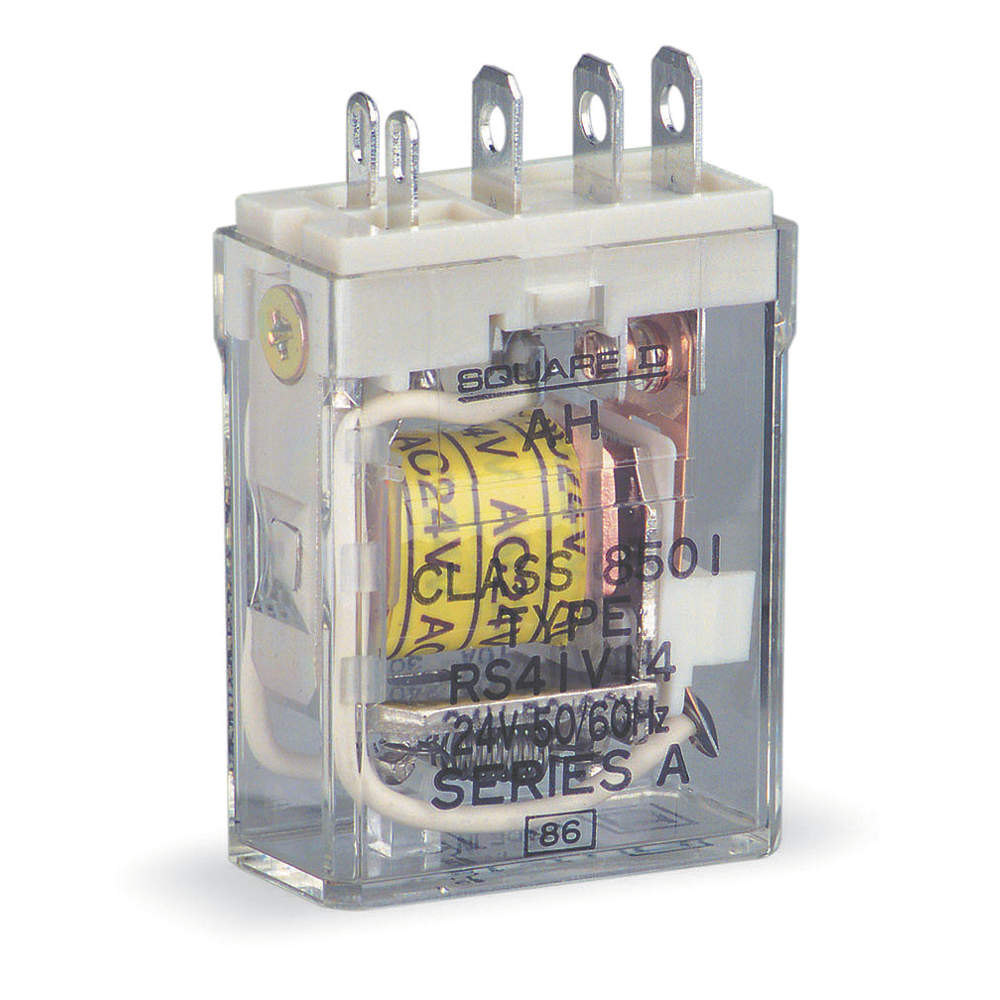

| D | 8501RS14V20 | 4PDT | 1.1" | 120V AC | Mechanical Flag | 14 | Square | No | 5A | $82.07 | |
| E | 8501RS34V20 | 4PDT | 1 1/5" | 120V AC | No | 14 | Square | No | 5A | $133.44 |
