| Item | Pillow Block Bearing |
|---|---|
| Ability To Relubricate | Yes |
| Base Length | 6 1/4" |
| Base To Center Height | 1 3/4" |
| Base Width | 2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 4.69" |
| Bolt Spacing Max | 5.19" |
| Bolt Spacing Min | 4.19" |
| Bore Dia. | 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 7/8" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.63" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
|---|---|
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | 3-015 |
| Length Through Bore | 1.497" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 5450 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 11/25" |
| Overall Length | 6 1/4" |
| Overall Width | 2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
| Height (cm) | 5.23 |
|---|---|
| Length (cm) | 11.13 |
| Width (cm) | 17.3 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.7415 |
| Style | Model | Bearing Insert Material | Overall Length | Overall Width | Overall Height | Bearing Insert Type | Shaft Locking Type | Bore Dia. | Housing Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

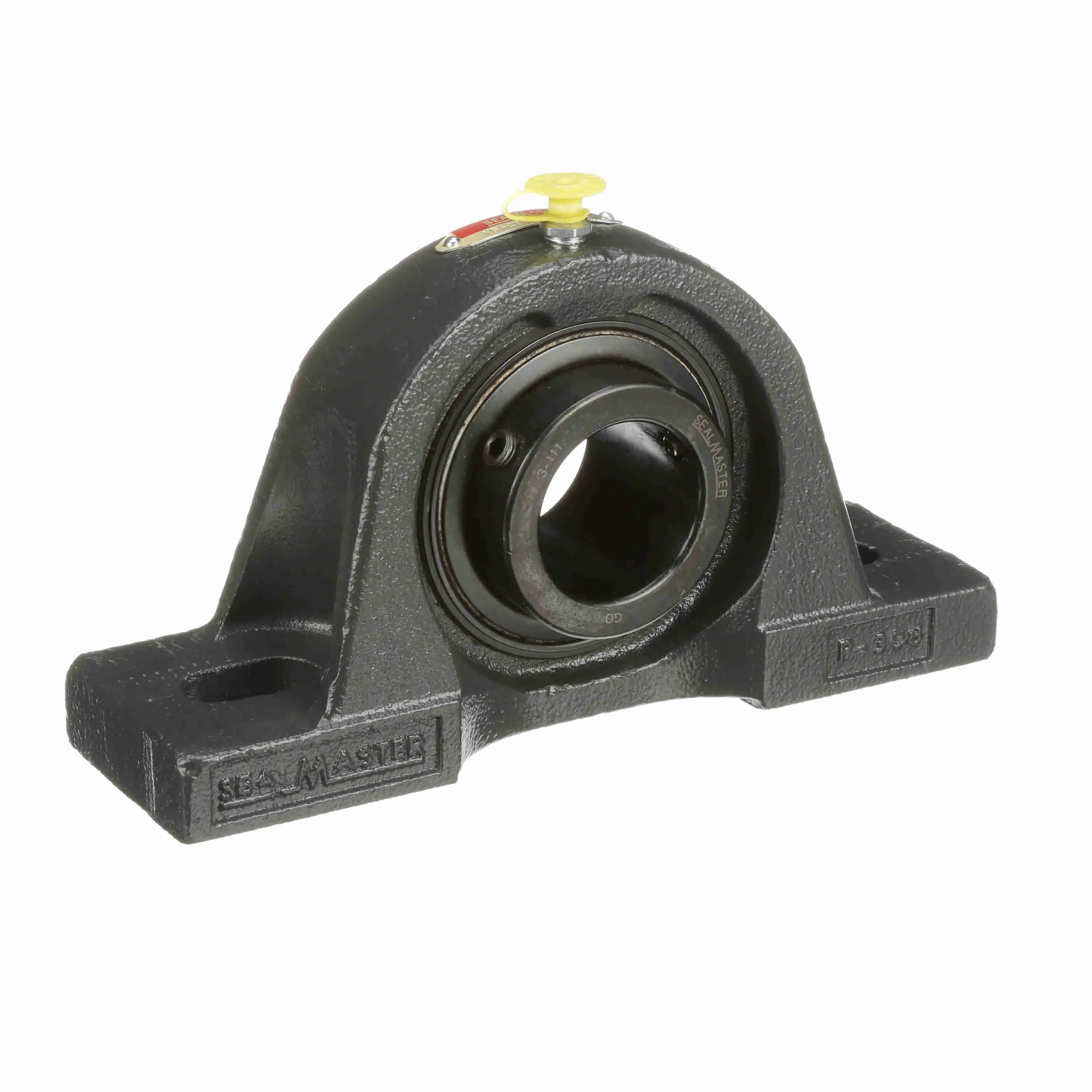

| A | MP-27 | Steel | 8 3/4" | 2 5/8" | 4 5/8" | Medium Duty | Set Screws | 1.688" | Pillow Block, Two Bolt | $706.29 | |

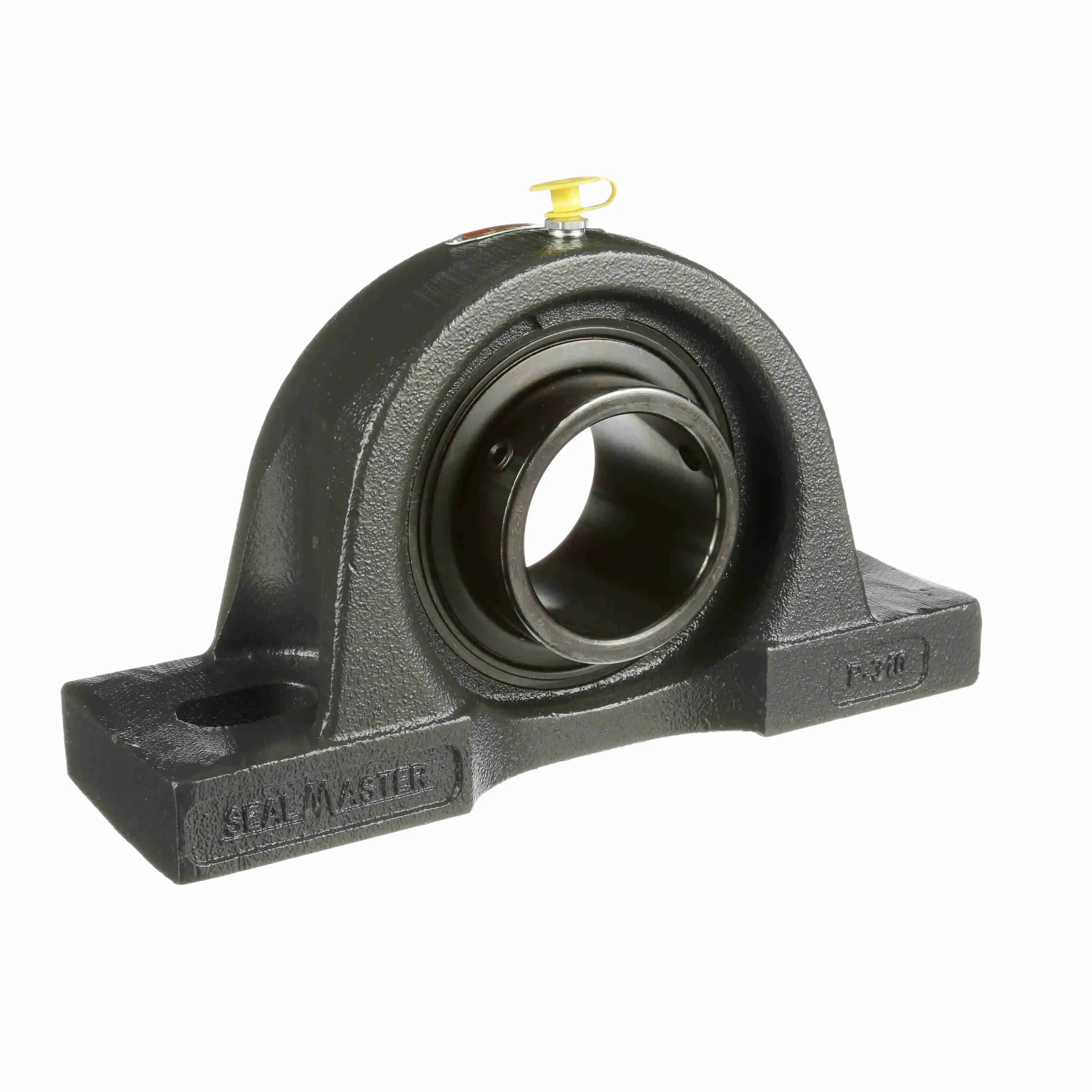

| B | MP-38 | Steel | 10 3/4" | 3 1/8" | 5.63" | Medium Duty | Set Screws | 2 3/8" | Pillow Block, Two Bolt | $1,681.40 | |

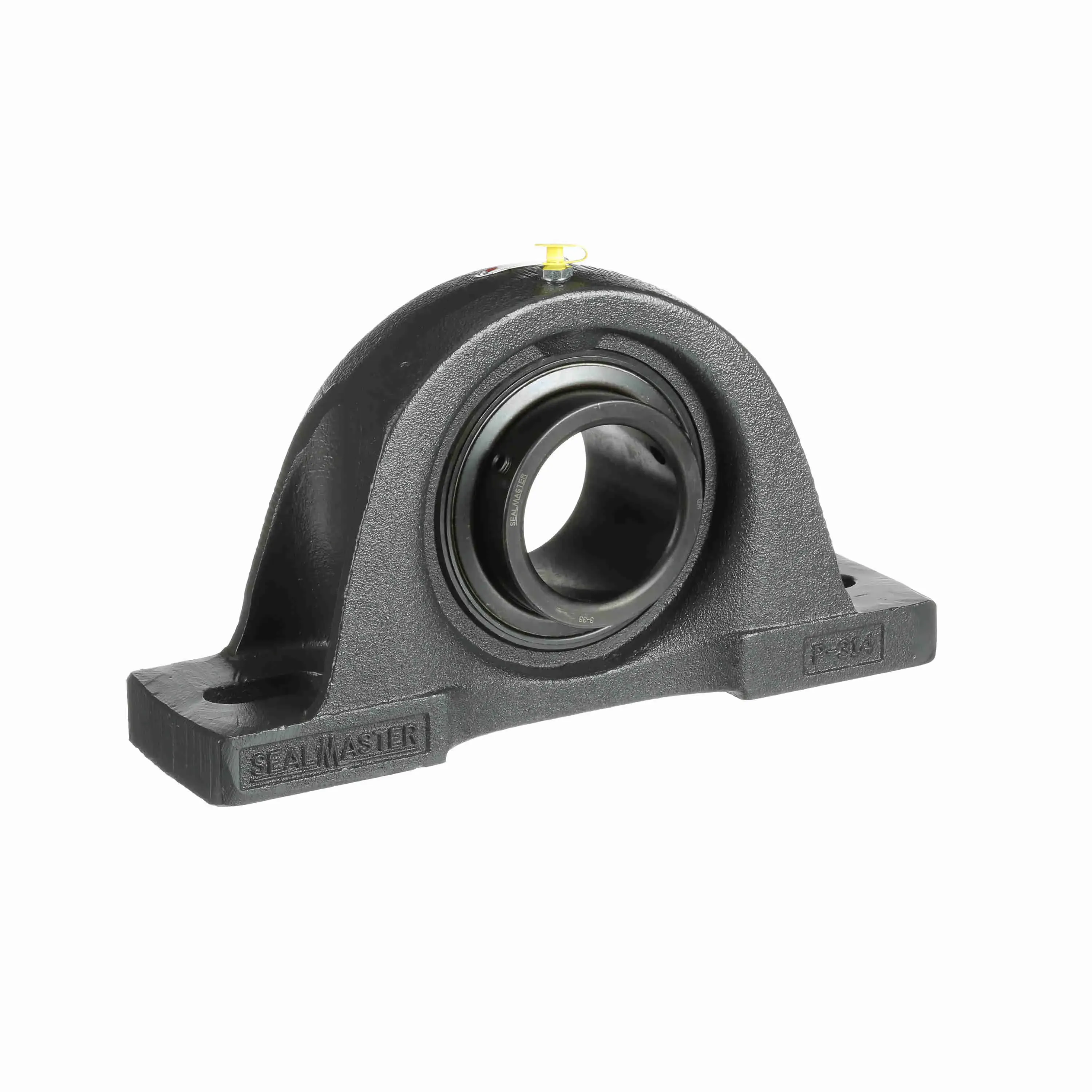

| C | MP-51 | Alloy Steel | 15" | 4" | 8" | Radial Ball | Set Screws | 3.188" | Pillow Block, Two Bolt | $3,037.19 | |

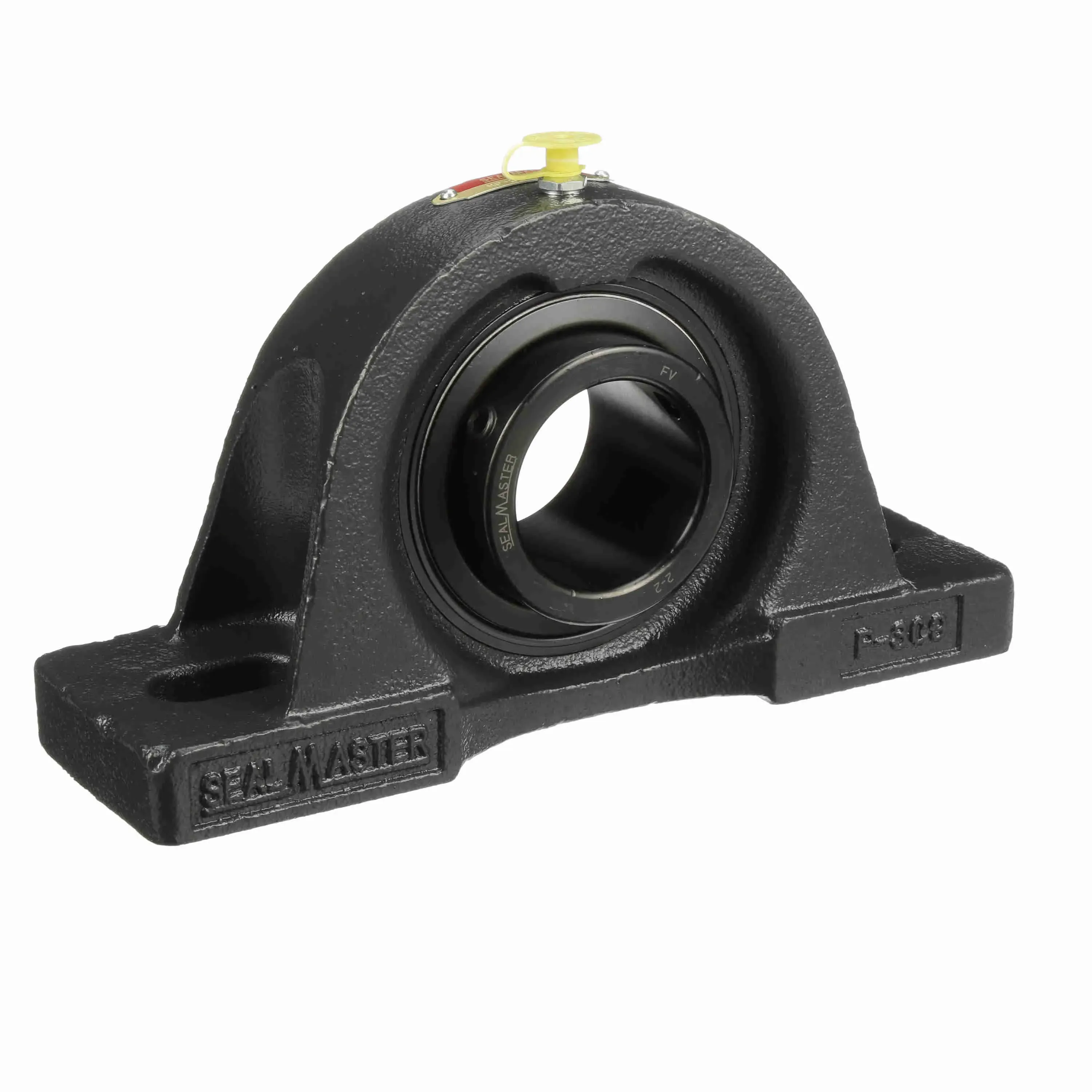

| D | MP-32 | Steel | 9 1/2" | 2 7/8" | 5.093" | Medium Duty | Set Screws | 2" | Pillow Block, Two Bolt | $1,022.65 | |

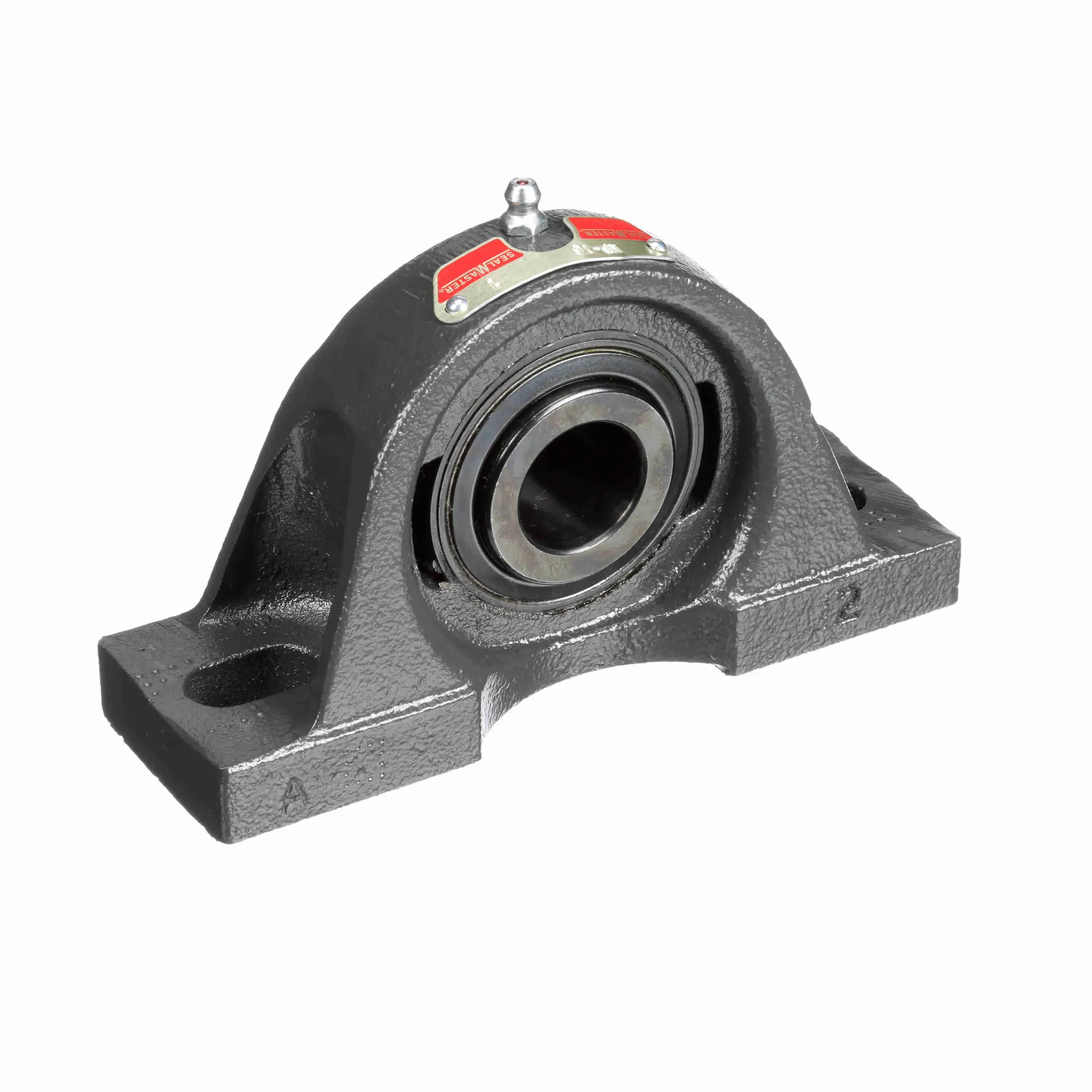

| E | MP-16 | Steel | 6 1/4" | 2" | 3 11/25" | Medium Duty | Set Screw | 1" | Pillow Block, Two Bolt | $460.03 | |

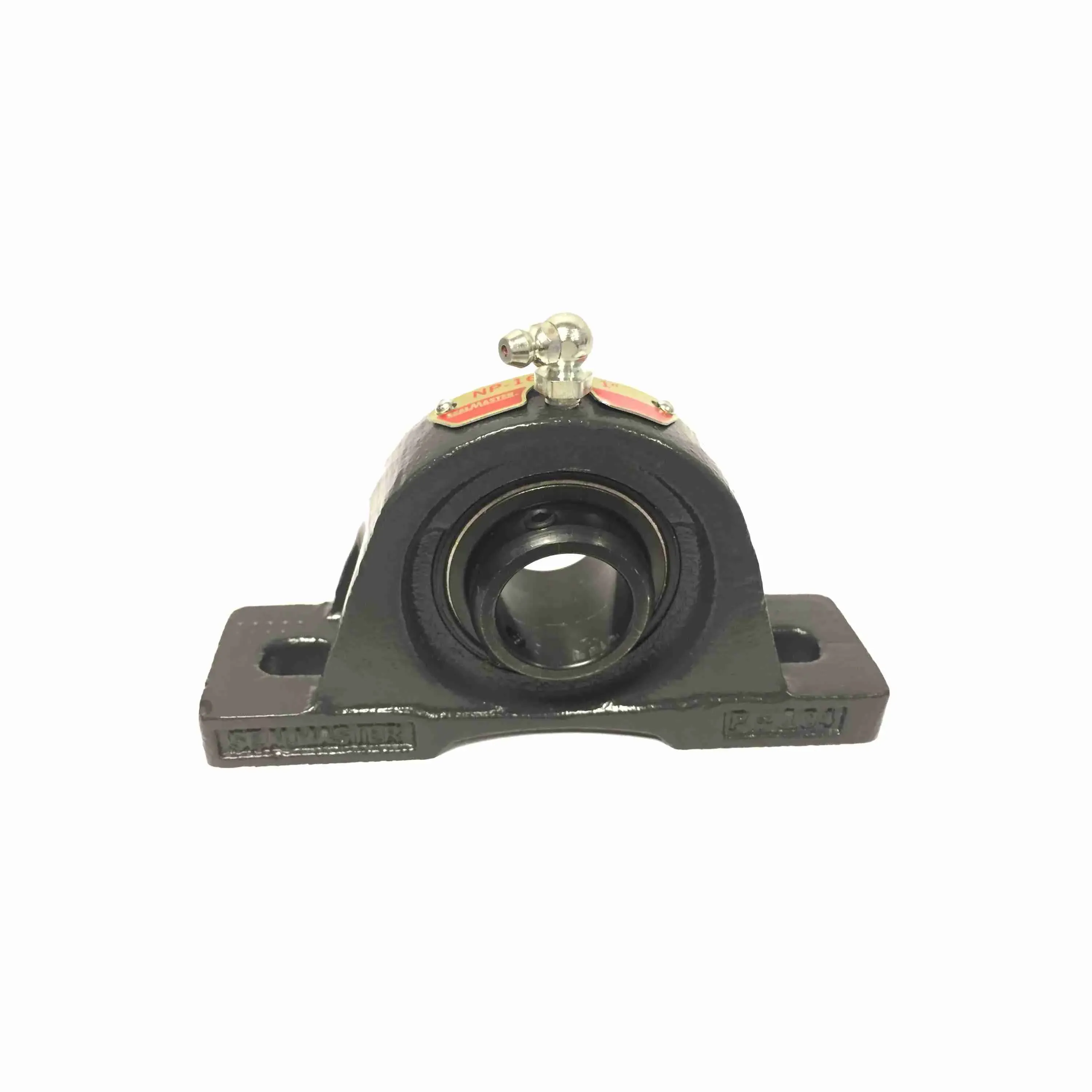

| F | MP-16 CSK | - | - | - | - | - | - | - | - | $234.62 | |

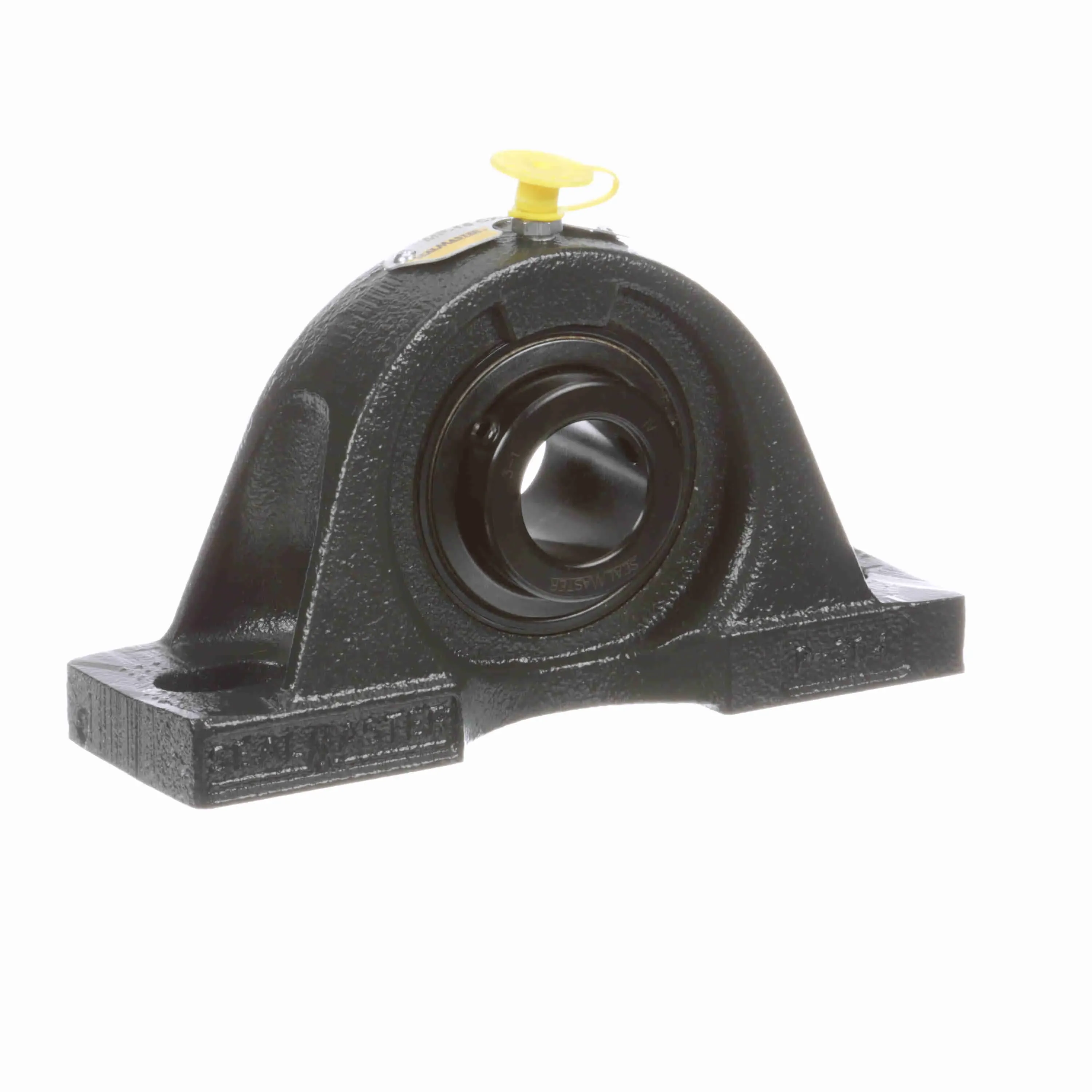

| G | MP-16 CXU | Steel | 6 1/4" | 2" | 3 11/25" | Medium Duty | Set Screw | 1" | Pillow Block, Two Bolt | $180.38 |
