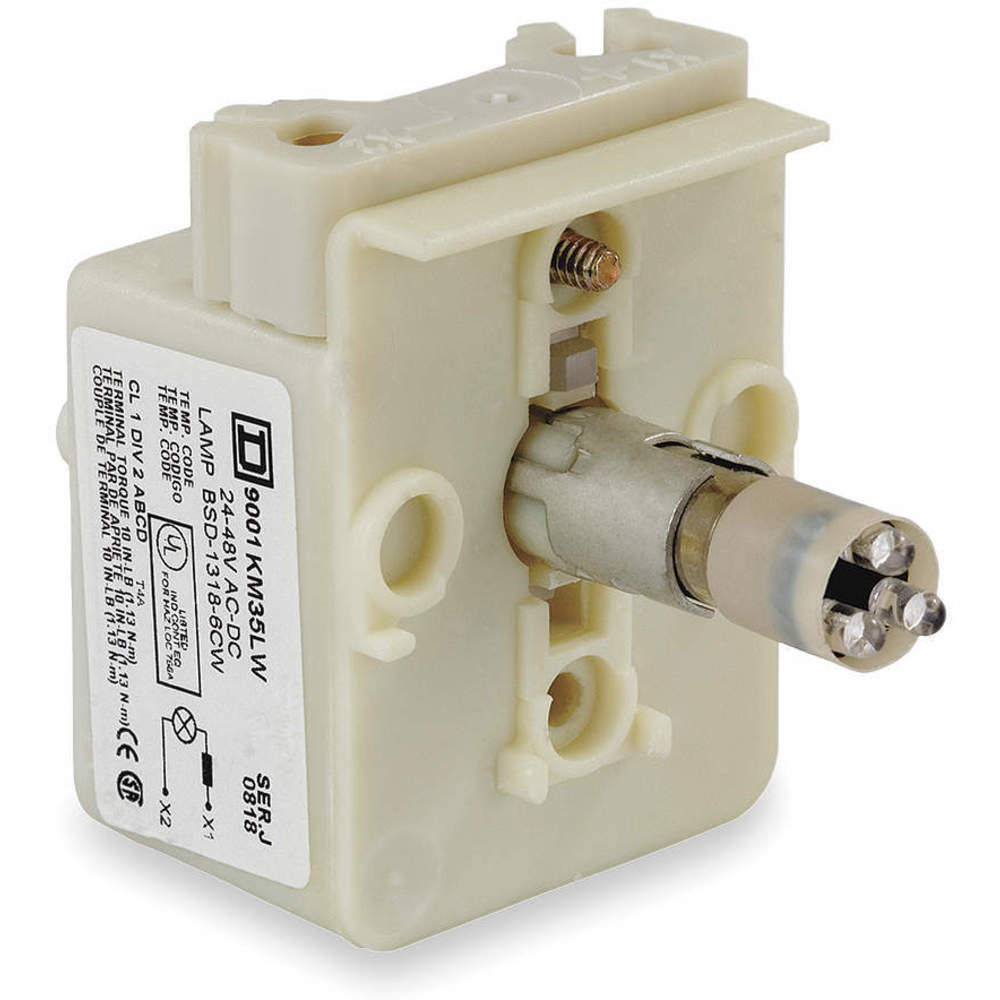

| Item | Lamp Module |
|---|---|
| Body Material | Plastic |
| Bulb Color | Red |
| Color | Red |
| Compatible Operator | Selector Switch |
| Compatible With Series | 9001K, 9001Sk |
| Includes Bulb | Bulb Included |
| Ip Rating | Not Rated |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Module Voltage | 120V AC |
| Lamp Type | LED |
|---|---|
| Lamp Voltage | 1.4 VA |
| Manufacturer Warranty Length | 18 Months |
| Nema Enclosure Rating | No Enclosure |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X |
| Panel Mounting Hole Diameter | 30 mm |
| Terminal Connection | Screw Terminal |
| Terminal Connection Type | Screw Clamp Terminals |
| Voltage Rating | 120V AC |
| Standards | CSA C22.2 NO.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| Height (cm) | 6.1 |
|---|---|
| Length (cm) | 9.65 |
| Width (cm) | 5.08 |
| HS Code | 8531800050 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.0675 |
| Style | Model | Lamp Module Type | Lamp Module Voltage | Terminal Connection Type | Ip Rating | Terminal Connection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | 9001KM31LG | LED | 6V AC | Screw Terminals | IP20 | Screw Terminal | $228.81 | |
| A | 9001KM32LG | LED | 12V AC | Screw Terminals | IP20 | Screw Terminal | $228.81 | |
| A | 9001KM35LG | Full Voltage | 24V AC | Screw Clamp Terminals | Not Rated | Screw Terminal | $228.81 | |
| B | 9001KM35LL | LED | 24V AC | Screw Terminals | IP20 | Screw Terminal | $200.76 | |
| C | 9001KM35LR | Full Voltage | 24V AC | Screw Clamp Terminals | Not Rated | Screw Terminal | $228.81 | |
| D | 9001KM35LW | LED | 24V AC | Screw Terminals | IP20 | Screw Terminal | $200.76 | |
| E | 9001KM35LY | LED | 24V AC | Screw Terminals | IP20 | Screw Terminal | $228.81 |
